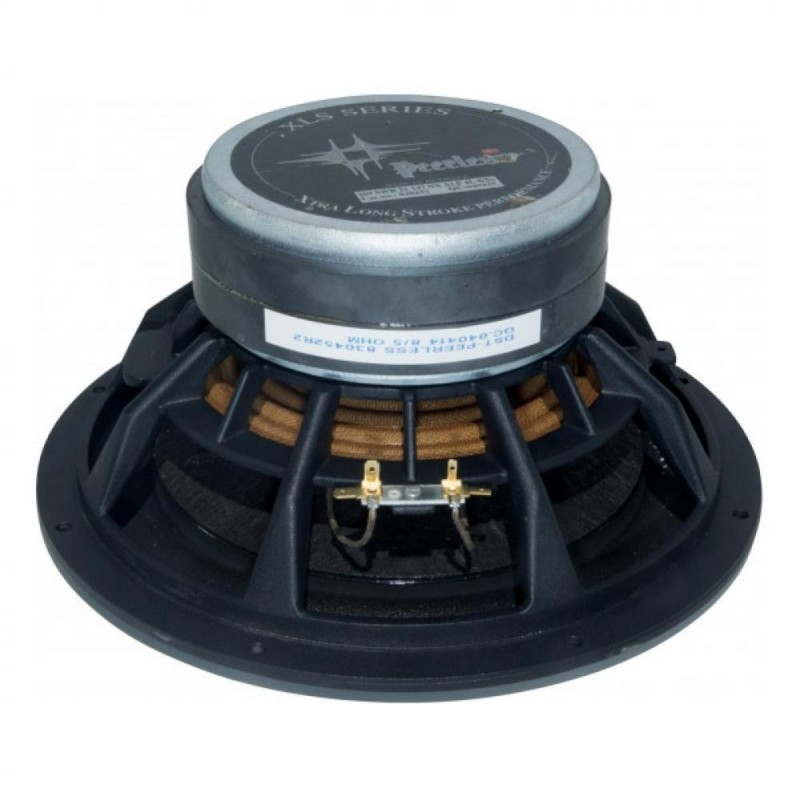

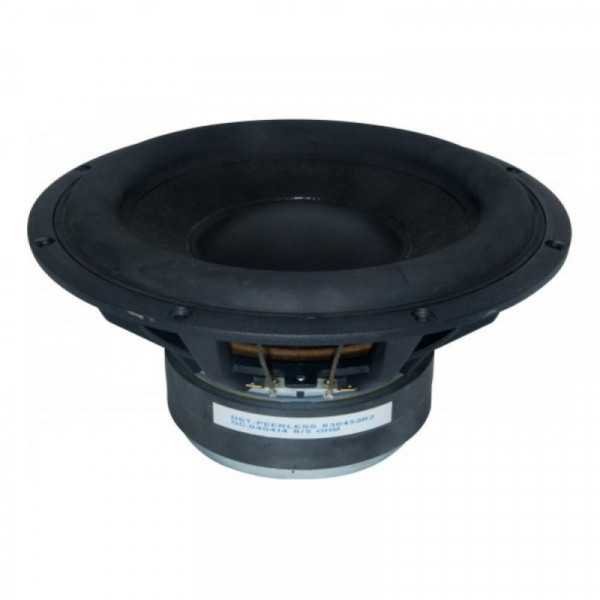

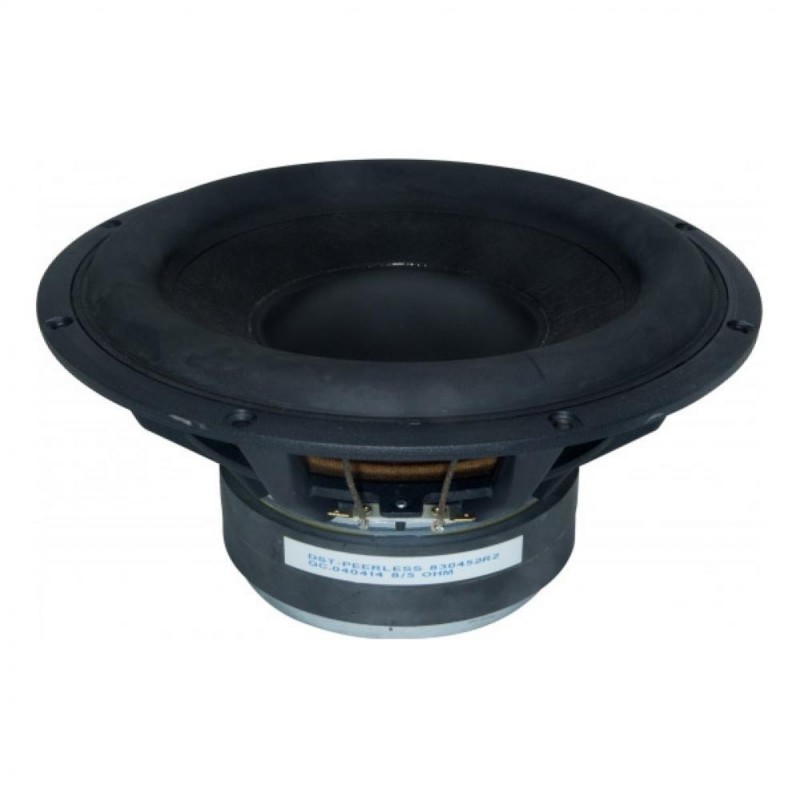

The P830452 XLS-10 10 inch 4 ohm subwoofer, member of the XLS product family has all the design features suitable for a high performance subwoofer driver. The motor features a double ferrite magnet motor, supporting high excursion, and aluminium shorting rings and pole extenders, lowering and linearizing the inductance of the overhung voice coil. The nomex cone is vented under the dust cap, to reduce air compression. The suspension system features a low-creep rubber surround, and a nomex spider, ensuring long-term reliability under high power conditions. The product also features a rigid cast aluminium basket.
Specifications
power handling (continuous/programme) = 250/400 W
frequency range = < 100 Hz
resonance frequency fs = 18 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88,4 dB (2,83V; 1m)
DC resistance Re = 5,4 Ohm
force factor BL = 17,5 N/A
voice coil inductance L = 4,3 mH
effective piston radiating area Sd = 333 cm2
effective mechanical mass incl. air load mms = 135 g
equivalent volume of compliance Vas = 80 l
total Q factor Qts = 0,17 (Qms=2,63, Qes=0,18)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 12,5 mm
