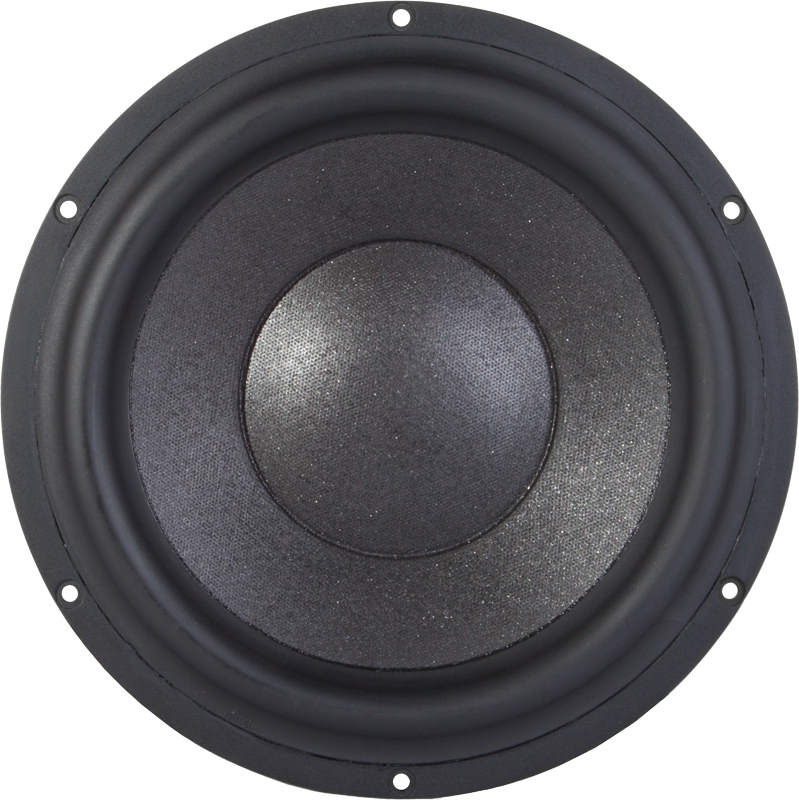

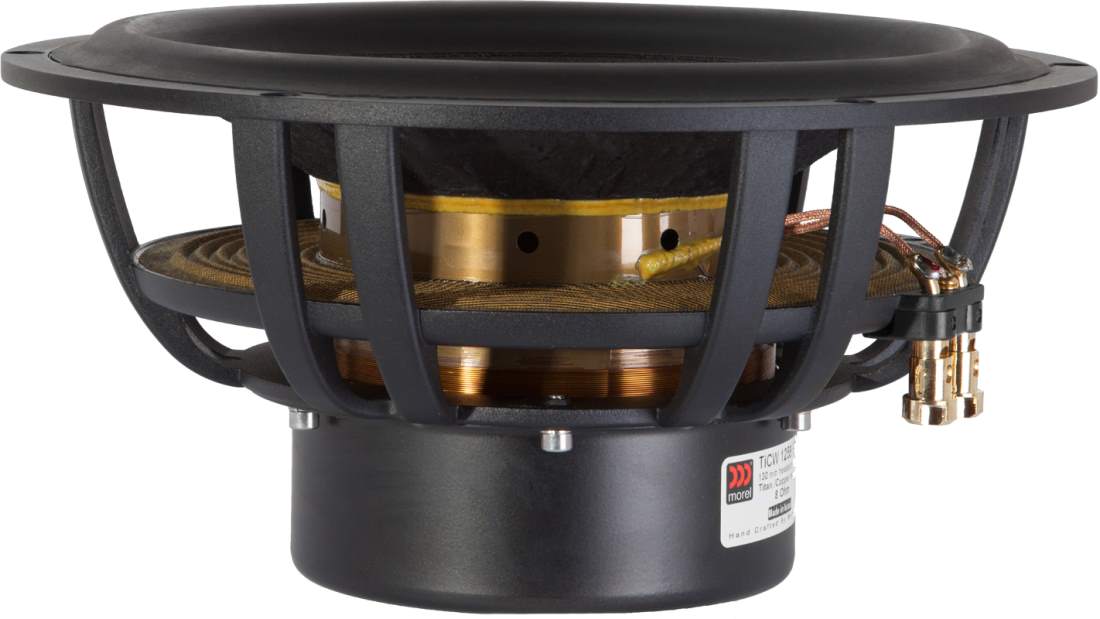

Morel TiCW 1258Ft

29 cm bass driver with high quality cone. The basket is made of die-cast.

Specifications

• power handling (continuous/programme) = 600 W
• frequency range = 19-1000 Hz
• resonance frequency fs = 19 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 88 dB (2,83V; 1m)
• DC resistance Re = 6,4 Ohm
• force factor BL = 15,25 N/A
• voice coil inductance L = 0,62 mH
• effective piston radiating area Sd = 437 cm²
• effective mechanical mass incl. air load mms = 110 g
• equivalent volume of compliance Vas = 170 l
• total Q factor Qts = 0,35 (Qms=4,03, Qes=0,38)
• voice coil diameter = 130 mm
• maximum peak linear excursion vibration x_lin = +/- 10,5 mm
• mounting diameter d = 270 mm
• overall diameter d = 305 mm
• mounting depth (not countersunk) t = 143 mm
