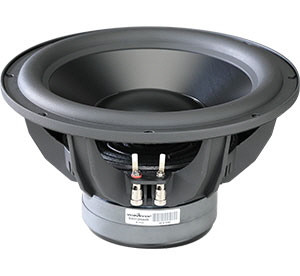

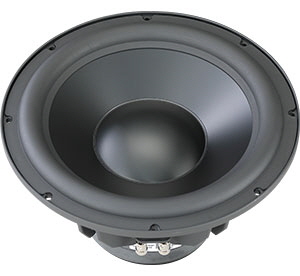

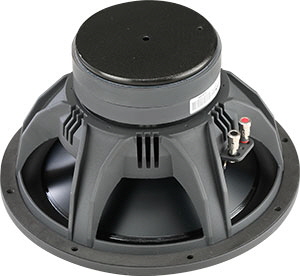

SW312WA03 and SW312WA04 are woofers designed for dedicated sub bass applications. They work equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups. The extremely stiff aluminium cone, the long linear throw, exaggerated ventilation, and the special dynamic linearization short circuiting rings together make up for an unusually linear and low-distortion woofer. Even at very high signal levels, the unit behaves controlled and without distortion. Due to low mechanical losses SW312WA03 and SW312WA04 master equally well low level details and extreme dynamic peaks. Both models are available with black anodized alu cones as SW312WA05 (4 ohm) and SW312WA06 (8 ohm)
Specifications
power handling (continuous/programme) = 250 W
frequency range = 30-200 Hz
resonance frequency fs = 28 Hz

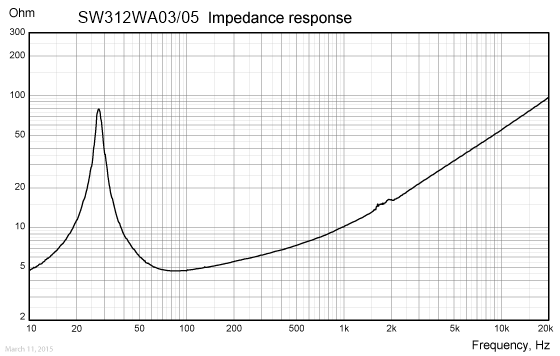

impedance R = 4 Ohm

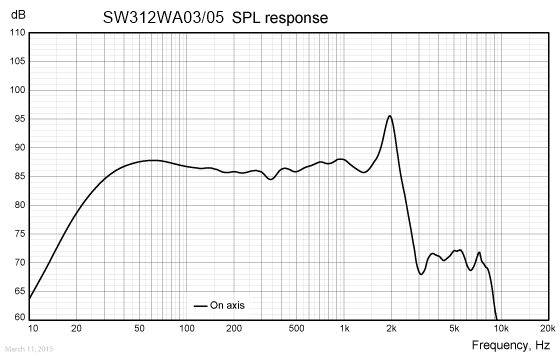

sound pressure level SPL = 90 dB (2,83V; 1m)
DC resistance Re = 3,2 Ohm
force factor BL = 14,5 N/A
voice coil inductance L = 1,55 mH
effective piston radiating area Sd = 488 cm2
effective mechanical mass incl. air load mms = 185 g
equivalent volume of compliance Vas = 61 l
total Q factor Qts = 0,48 (Qms=11,5, Qes=0,5)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 11,5 mm
