Product information "Peerless XXLS P835017 ALU-Sub"

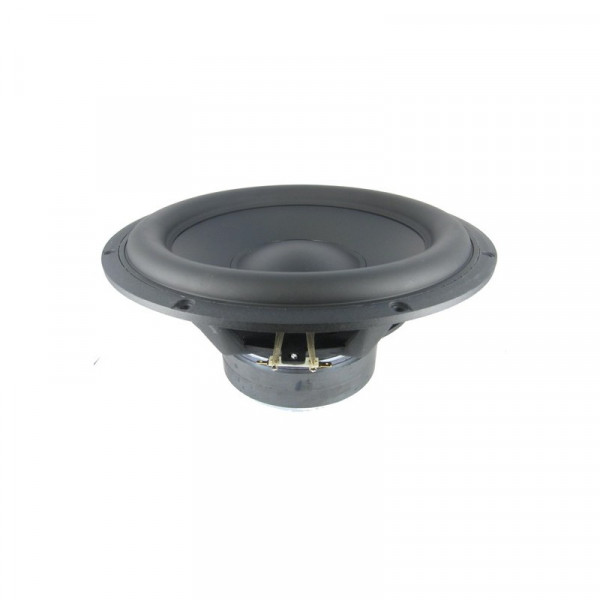

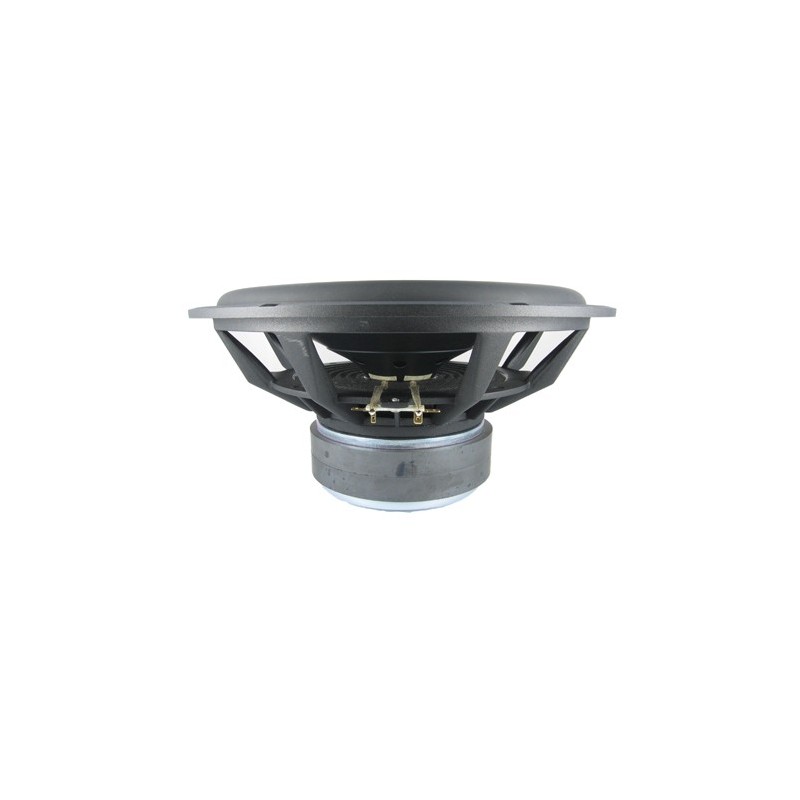

The P835017 XXLS-12 12 inch 4 ohm subwoofer, member of the XXLS product family has all the design features suitable for a high performance, high excursion subwoofer driver. The motor features a double ferrite magnet motor, supporting high excursion, and aluminium shorting rings and pole extenders, lowering and linearizing the inductance of the overhung voice coil. The Aluminium cone is vented under the dust cap, to reduce air compression. The suspension system features a low-creep rubber surround, and a nomex spider, ensuring long-term reliability under high power conditions. The product also features a rigid cast aluminium basket.
Specifications
power handling (continuous/programme) = 120 W

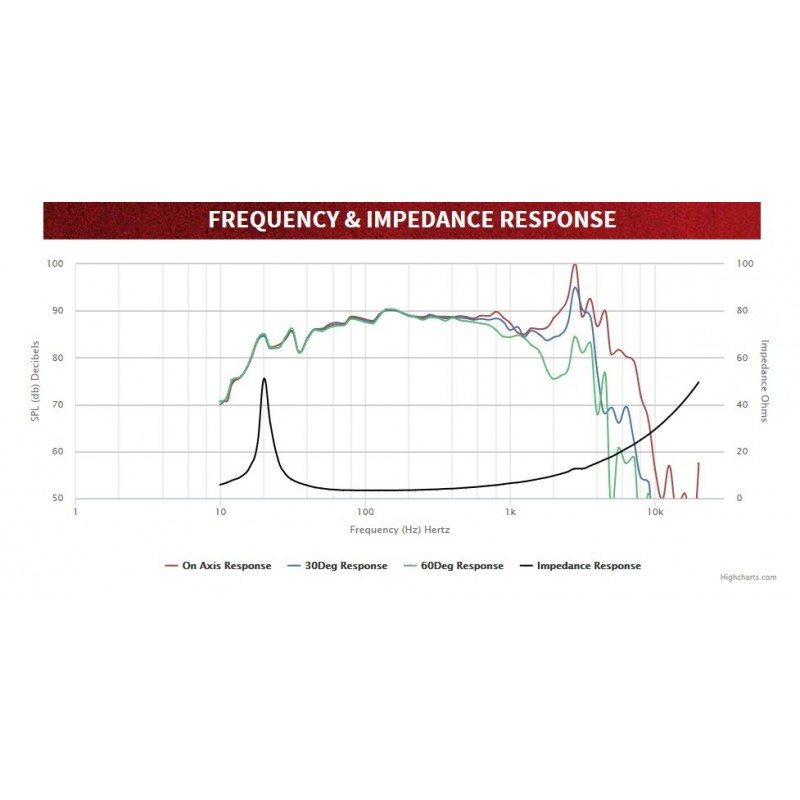

frequency range = 20-800 Hz
resonance frequency fs = 21,6 Hz
impedance R = 4 Ohm
sound pressure level SPL = 88,6 dB (2,83V; 1m)
DC resistance Re = 2,51 Ohm
force factor BL = 10,58 N/A
voice coil inductance L = 0,53 mH
effective piston radiating area Sd = 483,1 cm2
effective mechanical mass incl. air load mms = 131,4 g
equivalent volume of compliance Vas = 136 l
total Q factor Qts = 0,39 (Qms=10,83, Qes=0,4)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 12,3 mm
