The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No... more

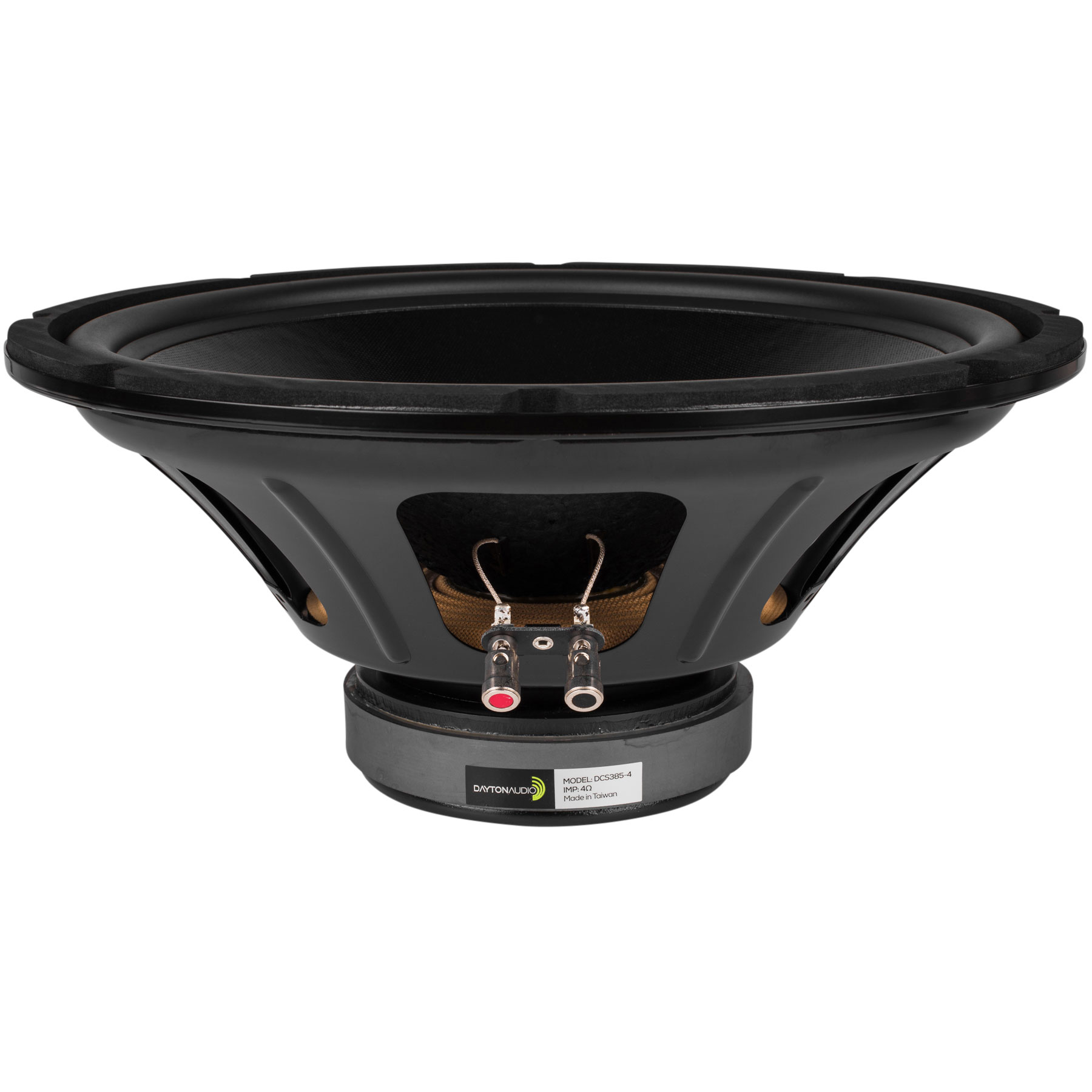

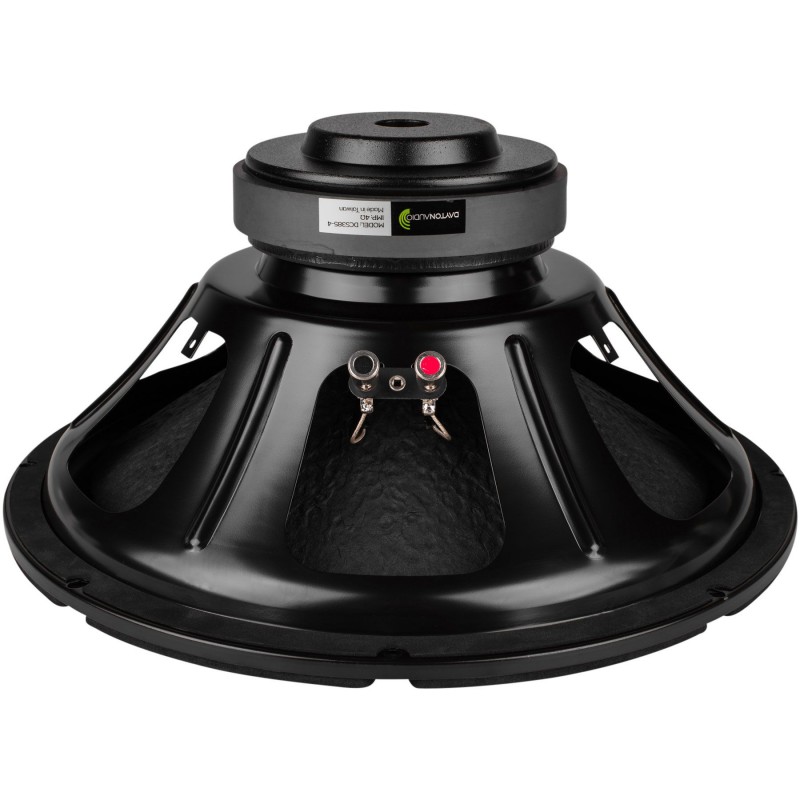

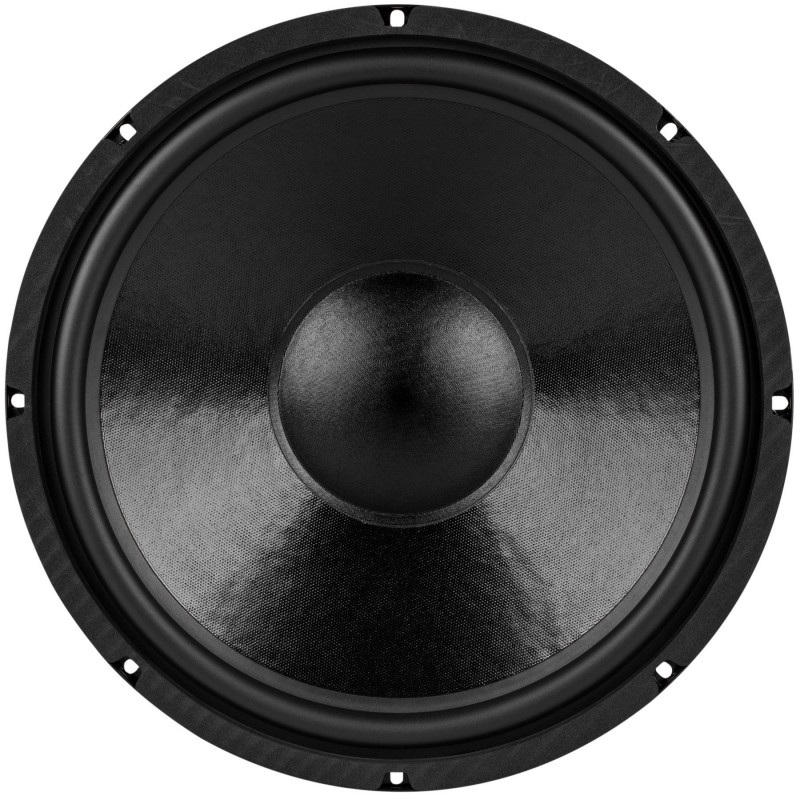

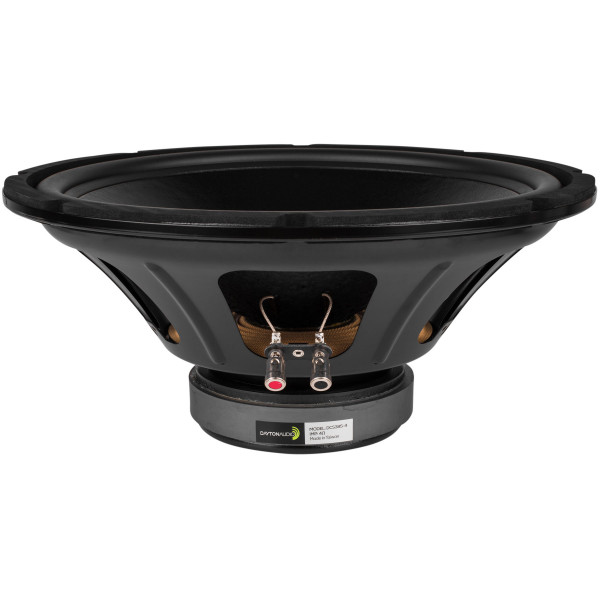

Product information "Dayton Audio DCS385-4"
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.
Specifications
Impedance
4 ohms
Re
3.3 ohms
Le
2.2 mH @ 1 kHz
Fs
17.5 Hz
Qms
5.27
Qes
0.42
Qts
0.39
Mms
273g
Cms
0.3 mm/N
Sd
850.1 cm²
Vd
790.6 cm³
BL
15.4 Tm
Vas
311 liters
Xmax
9.3 mm
VC Diameter
65.5 mm
SPL
91.7 dB @ 2.83V/1m
RMS Power Handling
300 watts
Usable Frequency Range (Hz)
19 - 200 Hz
