Tangband W46-1316SM

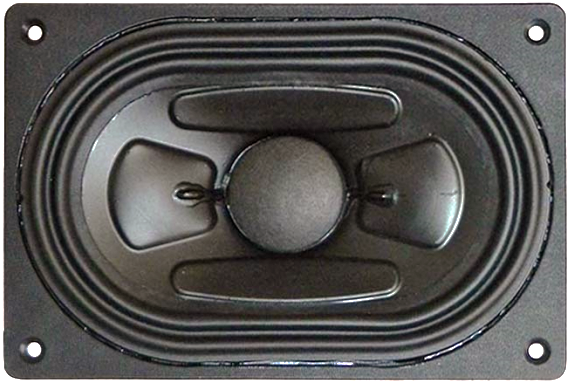

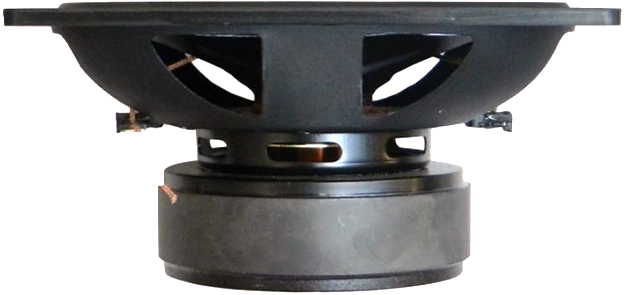

Tang Band W6-1316 4x6" PPM Subwoofer

• Long throw high power loading design.
• PP cone with rubber surround.
• Nylon composite basket.
• Intended for slim or flat subwoofer speaker box design.
• Vented pole piece.
• Good for home theater, Hi-Fi, car, multi-media application.

Specifications

Resonant frequency fS 50 Hz

Electrical Q QES 0.52

Mechanical Q QMS 4.07

Total Q factor QTS 0.46

Suspension equivalent air volume VAS 6.83 litres

DC resistance RE 3.2 Ω

Maximum impedance Zmax 27.0 Ω

Voice coil inductance LE 0.0168 mH

Force factor B·l 5.73 T·m

Suspension mechanical resistance RMS 1.2 N·s/m

Suspension mechanical compliance CMS 550 µm/N

Moving mass MMD 14.7 g

Moving mass (including airload) MMS 15.38 g

Surface of the diaphragm SD 93.5 cm²

Effective diaphragm diameter Ø 10.9 cm

Maximum linear excursion Xmax ± 5 mm

Displacement volume at Xmax VD 46.8 cm³

Efficiency η₀ 0.16 %

Efficiency bandwidth product EBP 96
