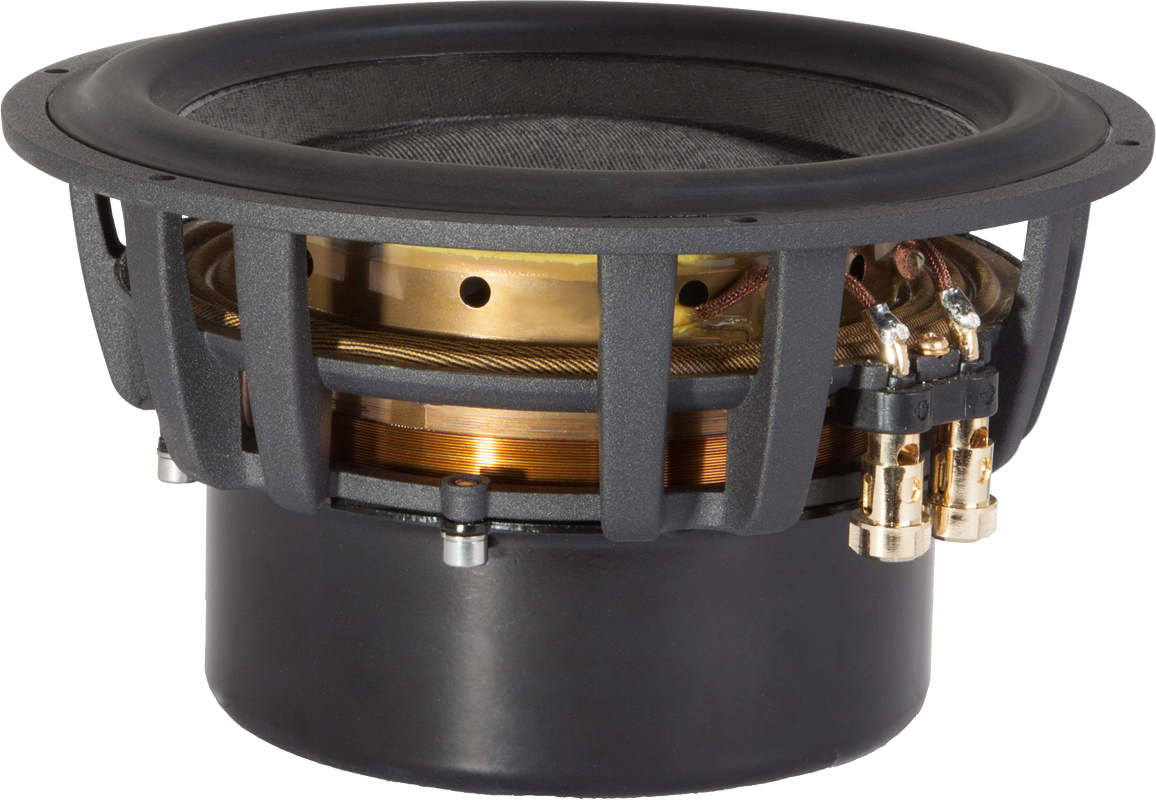

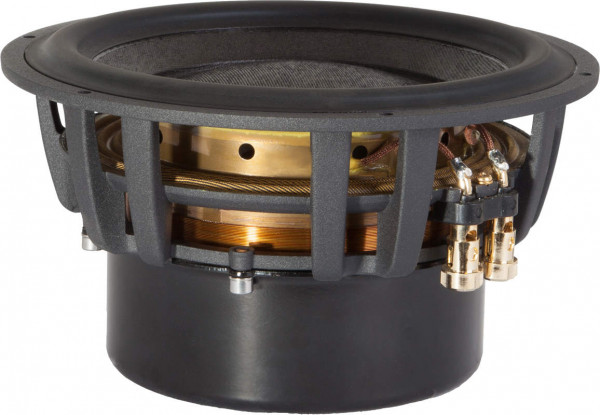

Morel TiCW 958Ft

21 cm bass driver with high quality cone. The basket is made of die-cast.

Specifications

• power handling (continuous/programme) = 500 W
• frequency range = 30-2000 Hz
• resonance frequency fs = 28 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 85 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 15 N/A
• voice coil inductance L = 0,62 mH
• effective piston radiating area Sd = 243 cm²
• effective mechanical mass incl. air load mms = 77 g
• equivalent volume of compliance Vas = 34 l
• total Q factor Qts = 0,39 (Qms=4,4, Qes=0,43)
• voice coil diameter = 130 mm
• maximum peak linear excursion vibration x_lin = +/- 10,5 mm
• mounting diameter d = 200 mm
• overall diameter d = 222 mm
• mounting depth (not countersunk) t = 120 mm
