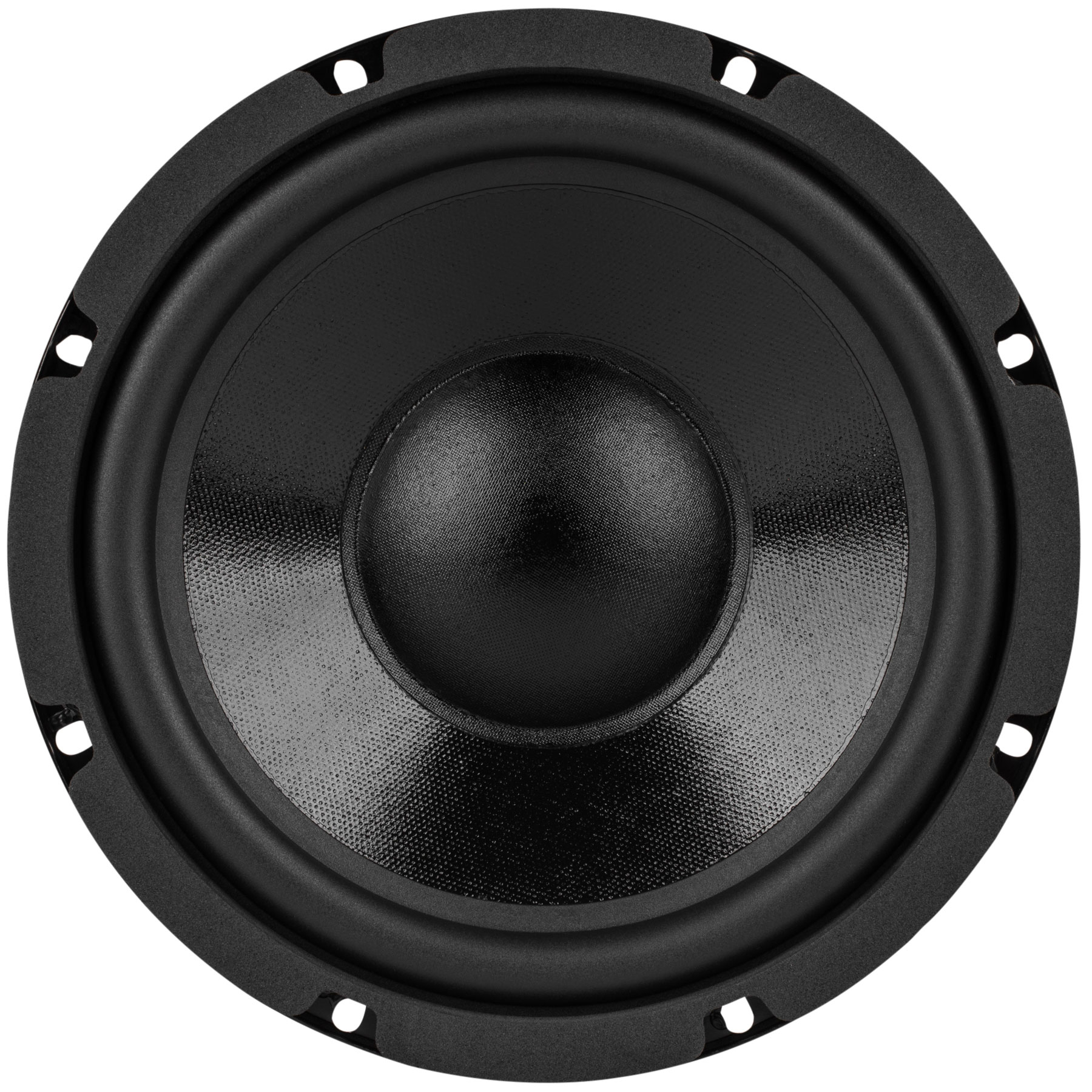

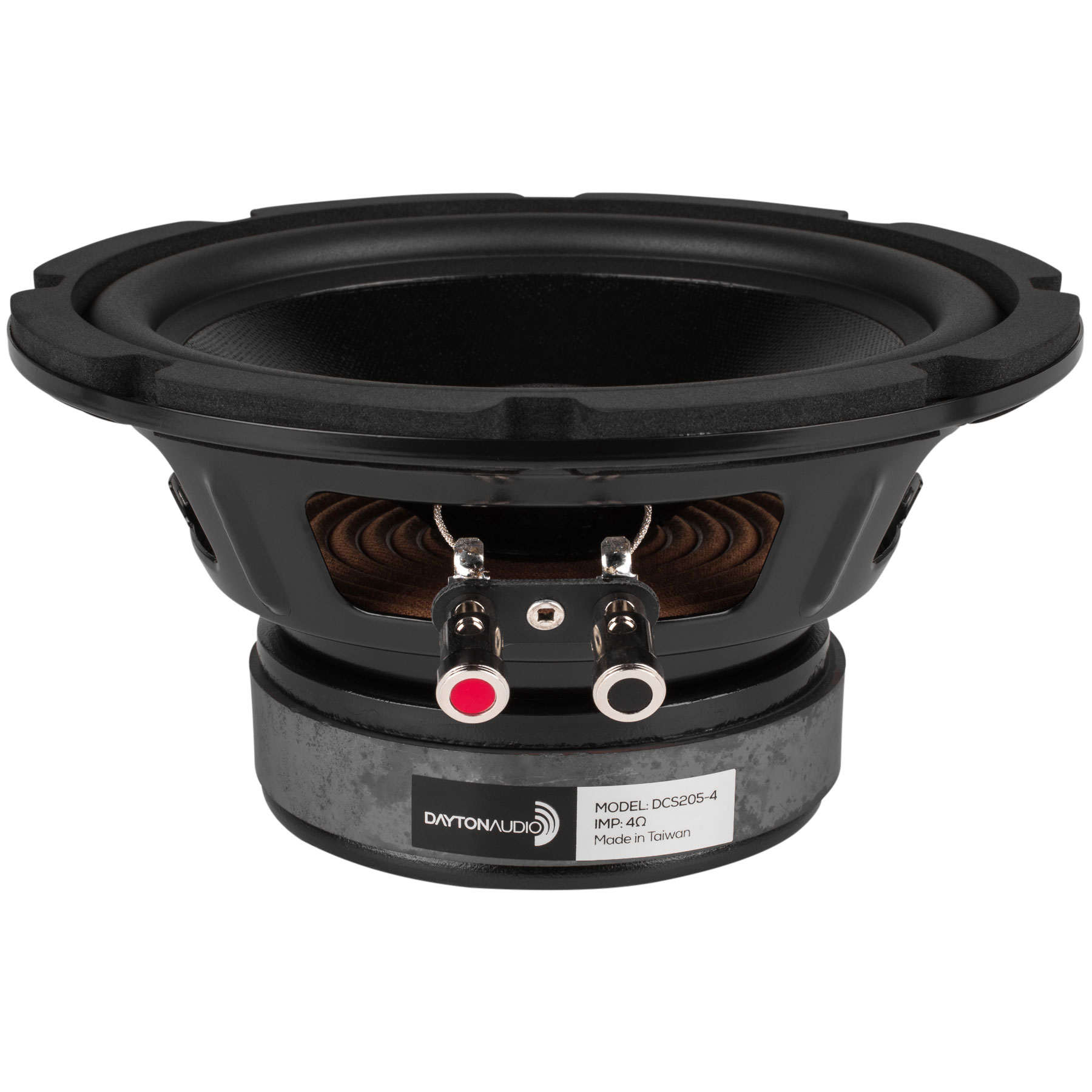

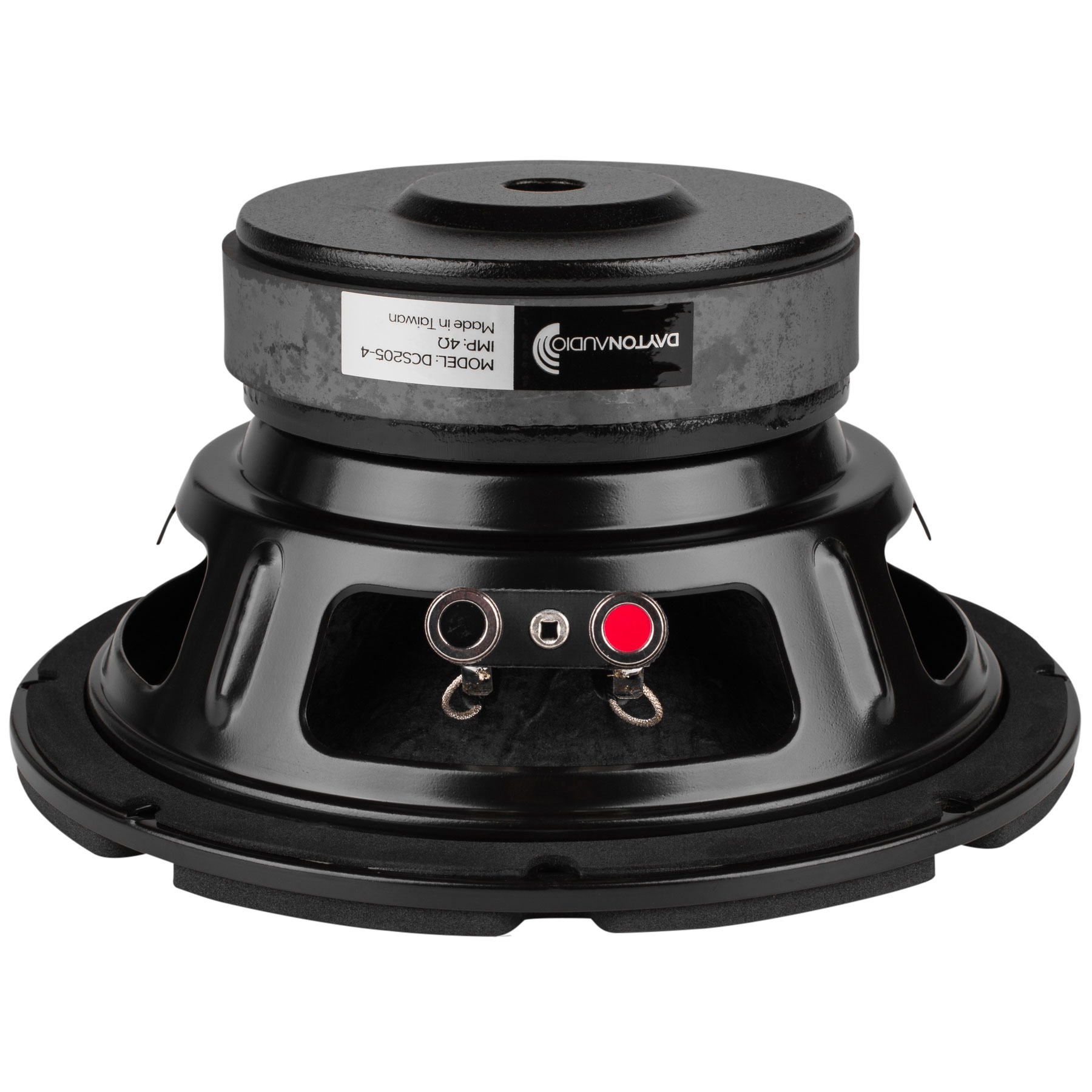

Dayton Audio DCS205-4

€104.08 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-dcs205-4
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No... more
Product information "Dayton Audio DCS205-4"

The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses.

The Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.

Product Highlights

• Sturdy stamped steel frame
• Vented pole piece and bumped back plate
• Inductance-reducing copper pole piece cap
• Treated non-pressed paper/Kevlar cone with rubber surround
• 4-layer VC with polyimide former
• Great for home and automotive applications



Specifications

Impedance
4 ohms

Re
3.9 ohms

Le
1.78 mH

Fs
32.3 Hz @ 1 kHz

Qms
6.28

Qes
0.4

Qts
0.37

Mms
57.7g

Cms
0.42 mm/N

Sd
213.8 cm²

Vd
188.2 cm³

BL
10.7 Tm

Vas
27 liters

Xmax
8.8 mm

VC Diameter
38.5 mm

SPL
88.6 dB @ 2.83V/1m

RMS Power Handling
150 watts

Usable Frequency Range (Hz)
30 - 200 Hz
