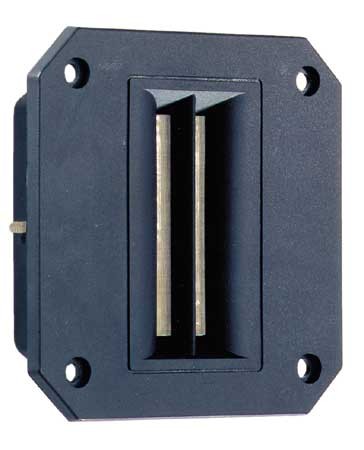

Visaton MHT 12 8 Ohm

Visaton MHT 12

High-end tweeter-range magnetostat. Solid aluminium die-cast front. Effective from 4000 Hz upwards due to the large diaphragm area and low self-resonance. The extremely thin base layer of the diaphragm means there is very little mass to set in motion which guarantees a high degree of signal fidelity and broad frequency response. High efficiency is guaranteed by the neodymium boron magnets. Low distortion factor, good power-handling capabilities, highly linear impedance and amplitude frequency response and the broad frequency response range make the MHT 12 a highly versatile tweeter unit for the discerning listener. Screened magnets.

Specifications

• power handling (continuous/programme) = 150/200 W

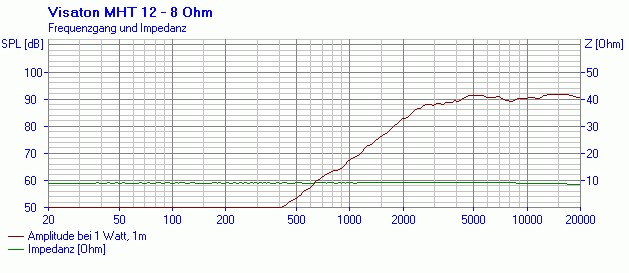

• frequency range = 2000-40000 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (2,83V; 1m)

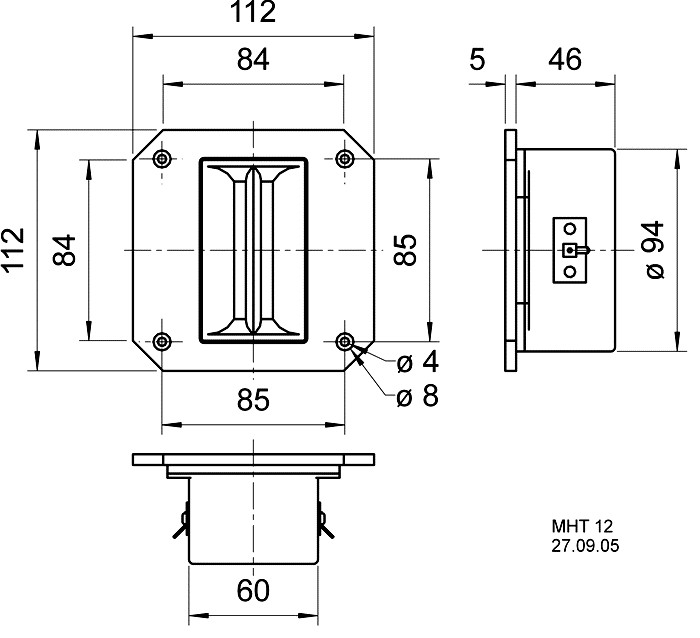

• mounting diameter d = 95 mm
• overall diameter d = 112 mm
• mounting depth (not countersunk) t = 46 mm
