Dayton Audio ND16FA

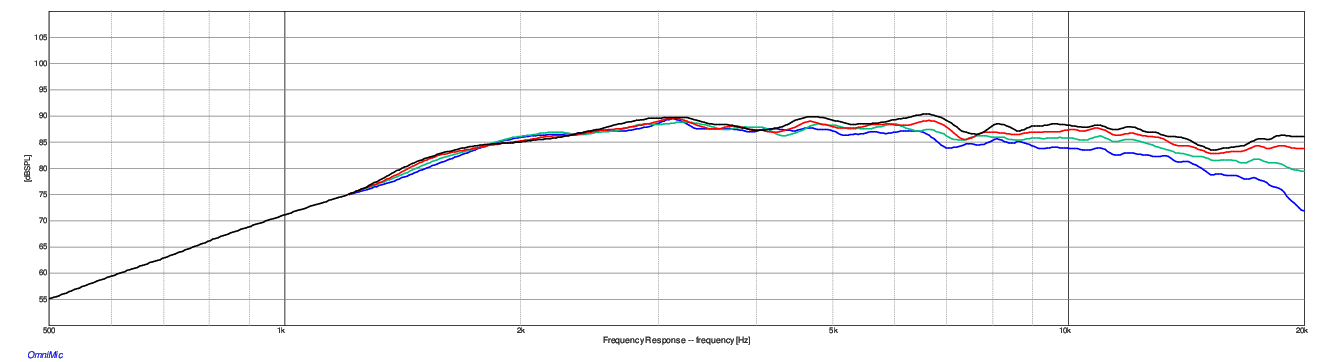

Dayton Audio ND16FA frequency chart

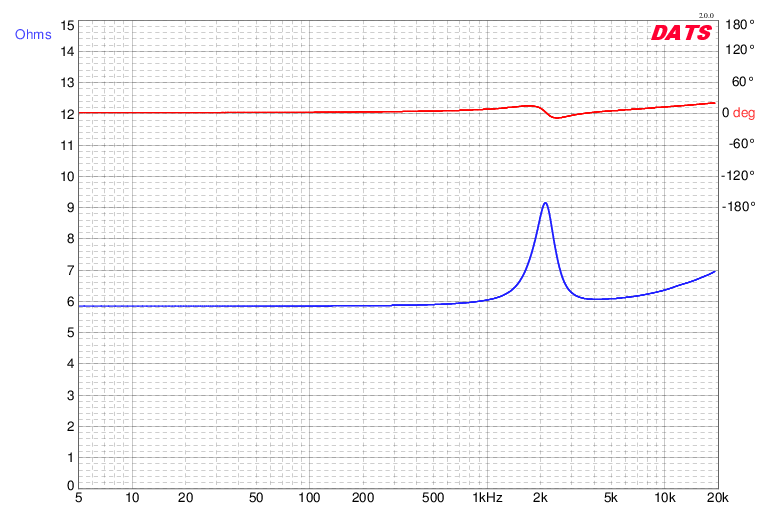

Dayton Audio ND16FA impedance chart

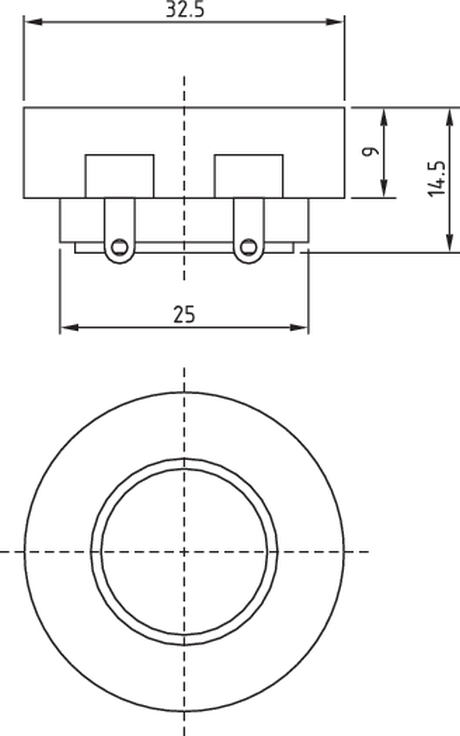

Dayton Audio ND16FA dimensions

€10.95 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

Order number: da-ND16FA-6

Don't let the low price fool you! This versatile tweeter is a huge step above the average... more

Product information "Dayton Audio ND16FA-6"

Don't let the low price fool you! This versatile tweeter is a huge step above the average "budget" tweeter.

Product Highlights

Unique front pressfit, flush-mount design
Center-to-center spacing as low as 1-3/8"
Extended response with superior off-axis dispersion
Compact neodymium motor is effectively self-shielded
Ferrofluid enhances power handling and helps damp resonance

Specifications

power handling (continuous/programme) = 10/20 W
frequency range = 3500-27000 Hz
resonance frequency fs = 2125,0 Hz
impedance R = 6 Ohm
sound pressure level SPL = 88,0 dB (2,83V; 1m)
DC resistance Re = 5,8 Ohm
voice coil inductance L = 0,04 mH
effective piston radiating area Sd = 2,0 cm²
total Q factor Qts = 2,20 (Qms=3,45, Qes=6,09)
voice coil diameter = 16 mm
mounting diameter d = 25 mm
overall diameter d = 32,5 mm
mounting depth (not countersunk) t = 14,5 mm

Related links to "Dayton Audio ND16FA-6"

Available downloads:

Download Dayton Audio ND16FA Datasheet
