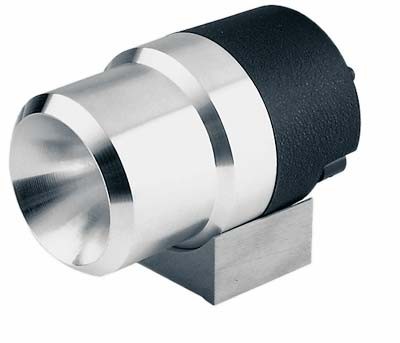

Visaton TL 16 H 8Ohm

Visaton TL 16 H 8Ohm

Visaton TL 16 H 8Ohm

€321.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: 24520

Visaton TL 16 H High-End horn driver for the high-frequency range above 5000 Hz.... more

Product information "Visaton TL 16 H 8Ohm"

Visaton TL 16 H

High-End horn driver for the high-frequency range above 5000 Hz. The extremely light aluminium titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response. The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.

Specifications

Nominal power handling with high pass = 150 W (12 dB/Okt.; 7500 Hz)
Peak power handling with high pass = 200 W (12 dB/Okt.; 7500Hz)
Nominal impedance Z = 8 Ohm

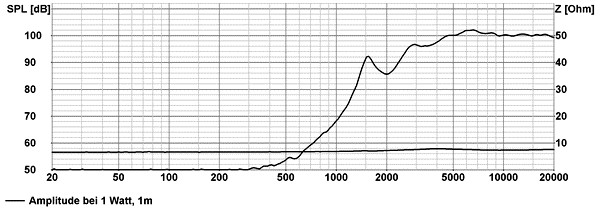

Frequency response = 2200–35000Hz
Mean sound pressure level = 100 dB (1 W/1 m)
Opening angle (-6 dB) = 67°/8000 Hz
Resonance frequency fs = 6000 Hz
Magnetic induction = 1,6 T
Magnetic flux = 200 µWb
Height of front pole-plate = 2,5 mm
Voice coil diameter = 16 mm
Net weight = 1,3 kg
D.C. resistance Rdc = 6,9 Ohm
Inductance of the voice coil Le = 0,17 mH
