Dayton Audio ND13FA-4

€10.95 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-nd13fa-4
ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm   Quick Overview Dayton Audios tiny... more
Product information "Dayton Audio ND13FA-4"

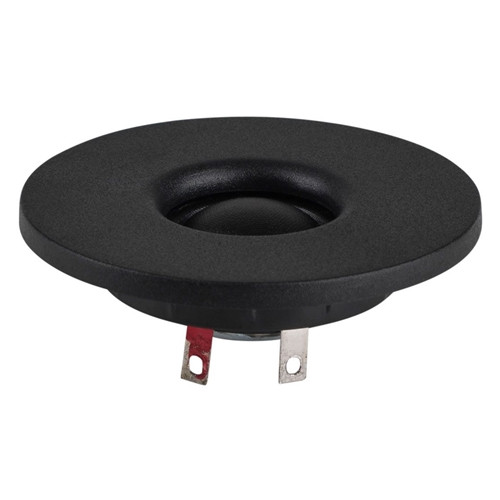

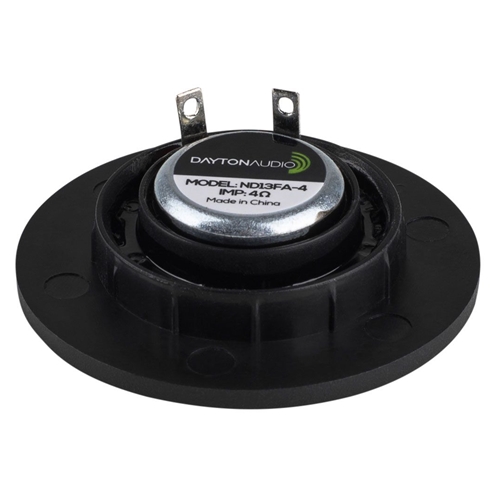

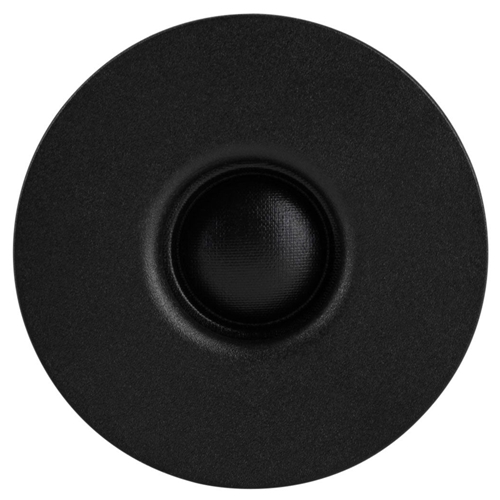

ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm



Quick Overview

Dayton Audios tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers.

Product Highlights

  • Compact faceplate is perfect for minimal center-to-center distances
  • Easy installation, front mount pressfit design
  • Ferrofluid enhances power handling and helps damp resonance
  • Powerful neodymium motor keeps tweeter small with impressive efficiency

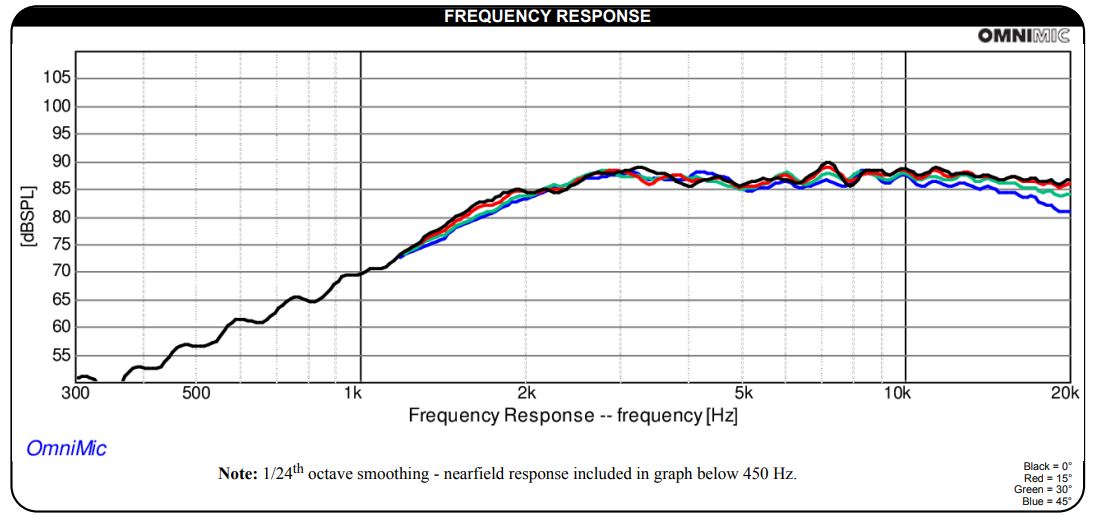

  • Exceptionally flat frequency response



Specifications

  • power handling = 20 W
  • frequency range = 4500-20000 Hz
  • resonance frequency fs = 2832 Hz

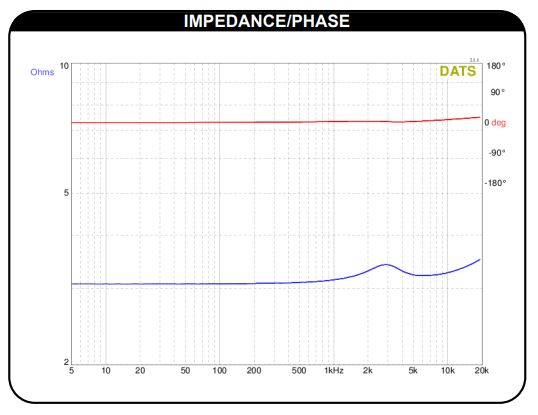

  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,5 dB (2,83V; 1m)
  • DC resistance Re = 3,07 Ohm
  • voice coil inductance L = 0,02 mH
  • total Q factor Qts = 0,84 (Qms=0,93, Qes=8,44)
  • voice coil diameter = 13 mm

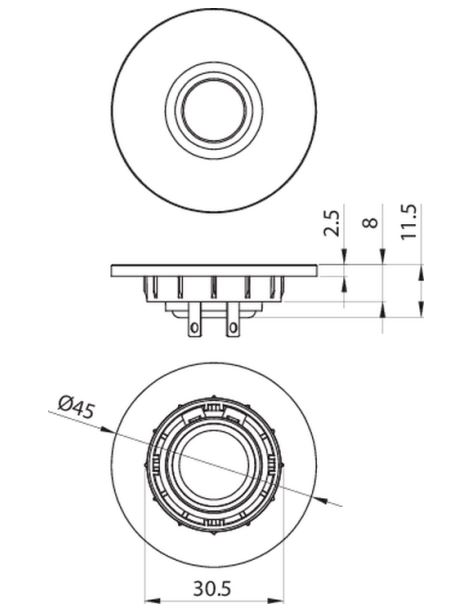

  • mounting diameter d = 30,5 mm
  • overall diameter d = 45 mm
  • mounting depth (not countersunk) t = 8,5 mm
