Visaton DT 94 4Ohm

Visaton
Preview: Visaton DT 94 4Ohm Preview: Visaton DT 94 4Ohm Preview: Visaton DT 94 4Ohm
Visaton DT 94 4Ohm
Visaton DT 94 4Ohm
Visaton DT 94 4Ohm

€34.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 9003
Description Evaluations 0
Description
Visaton DT 94 4Ohm   20 mm (0.8") polycarbonate HiFi driver with round shaped front... more
Close menu
Product information "Visaton DT 94 4Ohm"

Visaton DT 94 4Ohm

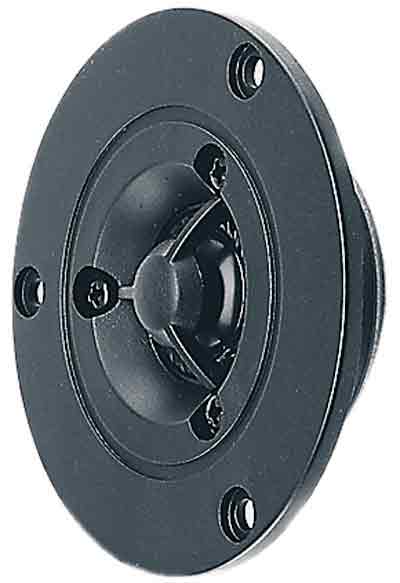

20 mm (0.8") polycarbonate HiFi driver with round shaped front plate for the highrange above 3000 Hz. Balanced frequency response and good omnidirectional sound distribution. High power handling due to ferrofluid-cooled voice-coil.



Specifications

  • power handling (continuous/programme) = 70/100 W

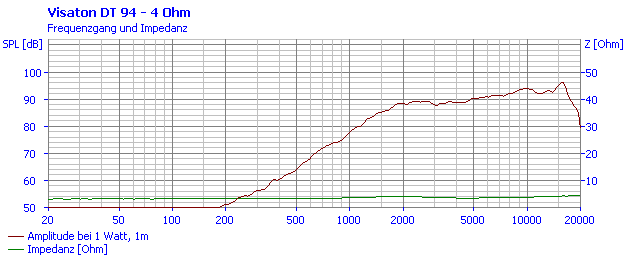

  • frequency range = 1200-22000 Hz
  • resonance frequency fs = 1900 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 20 mm

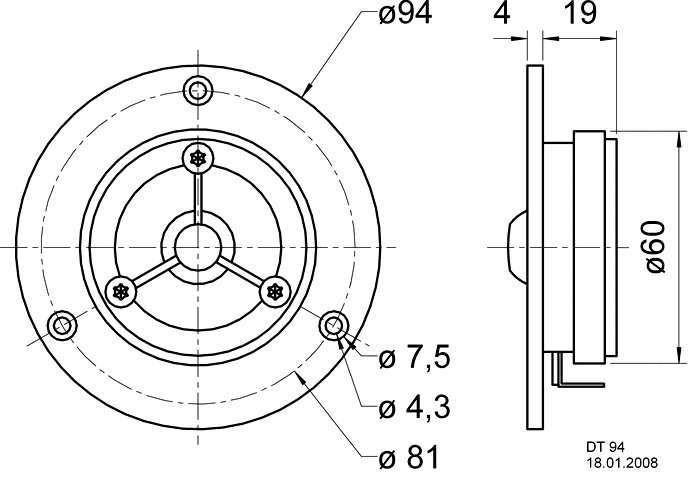

  • mounting diameter d = 64 mm
  • overall diameter d = 94 mm
  • mounting depth (not countersunk) t = 19 mm
