SB Acoustics SB14ST-C000-4

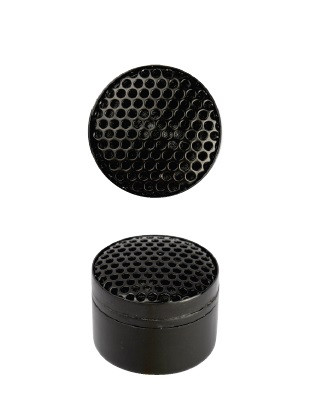

SB Acoustics SB14ST-C000-4 0.75" Tweeter

• Optimized damping in pole cavity to eliminate internal reflection
• Fine weave soft fabric dome for smooth frequency response
• Saturation controlled motor system for reduced distortion
• CCAW voice coil for low moving mass
• Long life silver lead wires

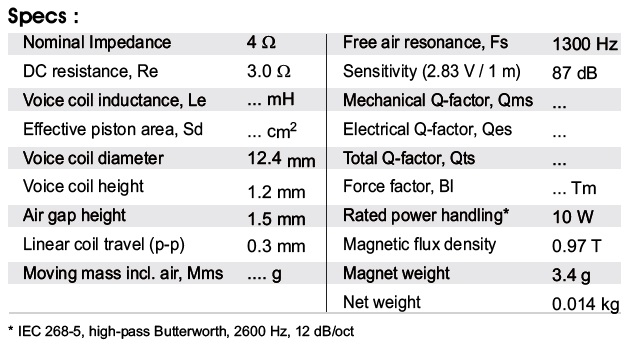

Specifications

• power handling (continuous/programme) = 30 W

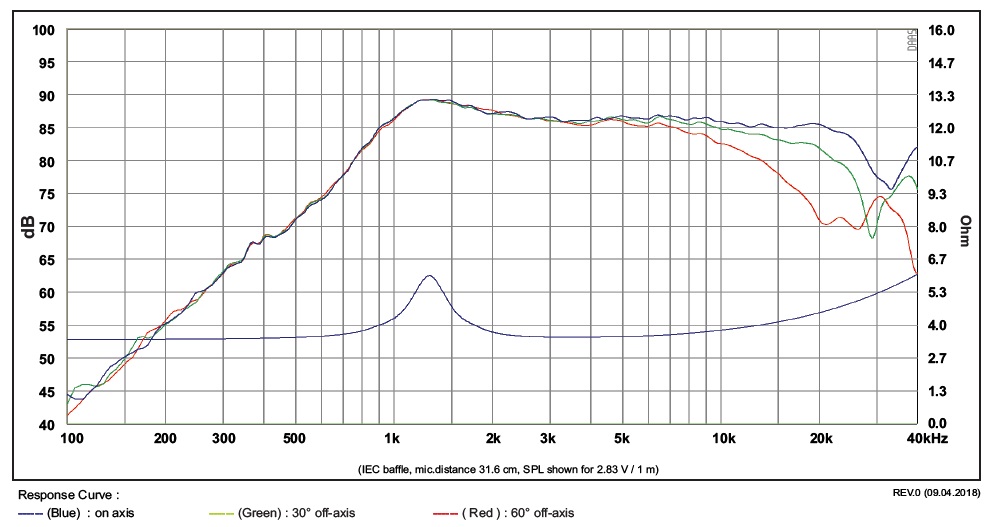

• frequency range = 1300-40000 Hz
• resonance frequency fs = 1300 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 87 dB (2,83V; 1m)
• DC resistance Re = 3.0 Ohm
• force factor BL = -- N/A
• voice coil inductance L = -- mH
• effective piston radiating area Sd = -- cm²
• effective mechanical mass incl. air load mms = -- g
• total Q factor Qts = -- (Qms= --, Qes= --)
• voice coil diameter = 12.4 mm

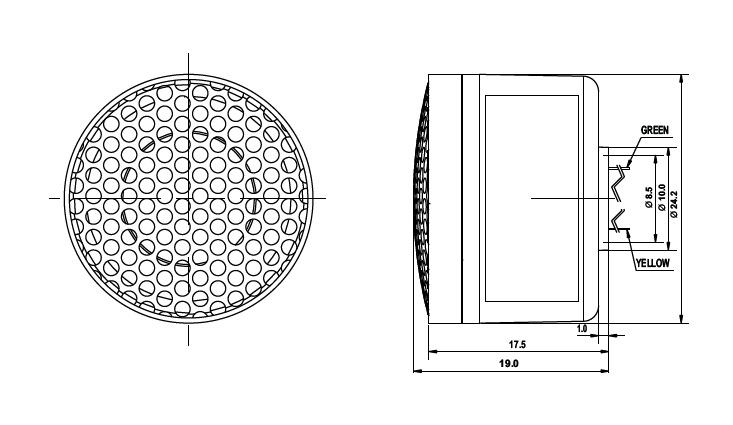

• mounting diameter d = 24.2 mm
• overall diameter d = 24.2 mm
• mounting depth (not countersunk) t = -- mm
