Product information "Wavecor TW022TU01"
Wavecor TW022UT01
22 mm dome tweeter with fabric dome. The magnet system is based on Neodymium technology.
Specifications
- power handling (continuous/programme) = 20 W
- frequency range = 2000-30000 Hz
- resonance frequency fs = 825 Hz
- impedance R = 4 Ohm

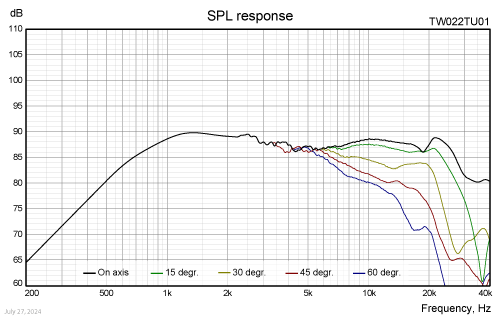

- sound pressure level SPL = 88 dB (2,83V; 1m)
- DC resistance Re = 3,6 Ohm
- force factor BL = 1,6 N/A
- effective piston radiating area Sd = 6,1 cm2
- effective mechanical mass incl. air load mms = 0,26 g
- equivalent volume of compliance Vas = 0,075 l
- total Q factor Qts = 0,81 (Qms=1,43, Qes=1,88)
- voice coil diameter = 22 mm
- mounting diameter d = 43 mm
- overall diameter d = 50 mm
- mounting depth (not countersunk) t = 23,7 mm
- mass m = 0,07 kg
