Visaton SC 10 N 8Ohm

Visaton
Preview: Visaton SC 10 N 8Ohm Preview: Visaton SC 10 N 8Ohm Preview: Visaton SC 10 N 8Ohm
Visaton SC 10 N 8Ohm
Visaton SC 10 N 8Ohm
Visaton SC 10 N 8Ohm

€22.71 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 8011
Description Evaluations 0
Description
Visaton SC 10 N   Magnetically shielded 25 mm (1") fabric dome driver for the... more
Close menu
Product information "Visaton SC 10 N 8Ohm"

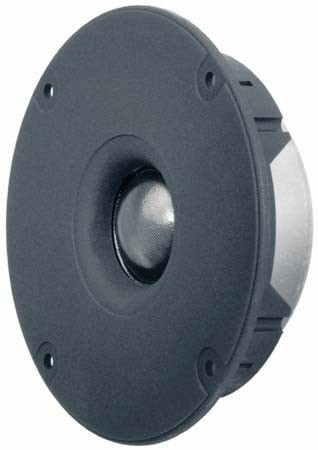

Visaton SC 10 N



Magnetically shielded 25 mm (1") fabric dome driver for the highrange above 3000 Hz. Linear frequency re-sponse due to special dome coating and ferrofluid-cooled voice-coil for high power handling. Suitable for shielded medium sized 2-way combinations for surround center speakers and multi-media systems in conjunction with the shielded low-midrange driver SC 13 8 Ohm.



Specifications

  • power handling (continuous/programme) = 100/150 W
  • frequency range = 1000-20000 Hz
  • resonance frequency fs = 1700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 25 mm

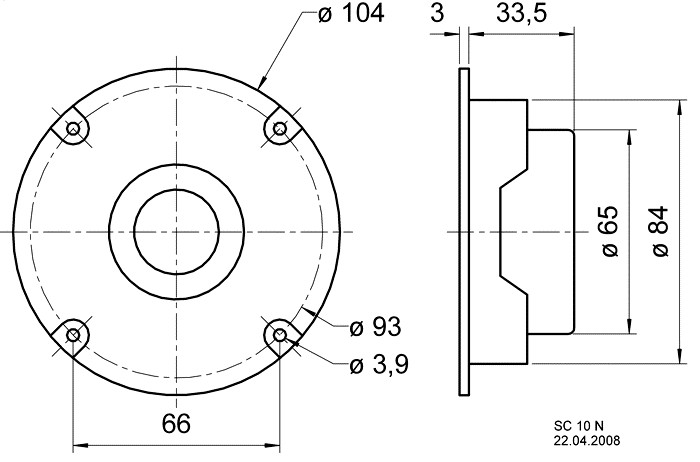

  • mounting diameter d = 85 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 32 mm
