Dayton Audio ND25TA-4

Dayton Audio
Preview: Dayton Audio ND25TA-4 Preview: Dayton Audio ND25TA-4 front Preview: Dayton Audio ND25TA-4 back Preview: Dayton Audio ND25TA-4 frequency chart Preview: Dayton Audio ND25TA-4 impedance chart Preview: Dayton Audio ND25TA-4 dimensions

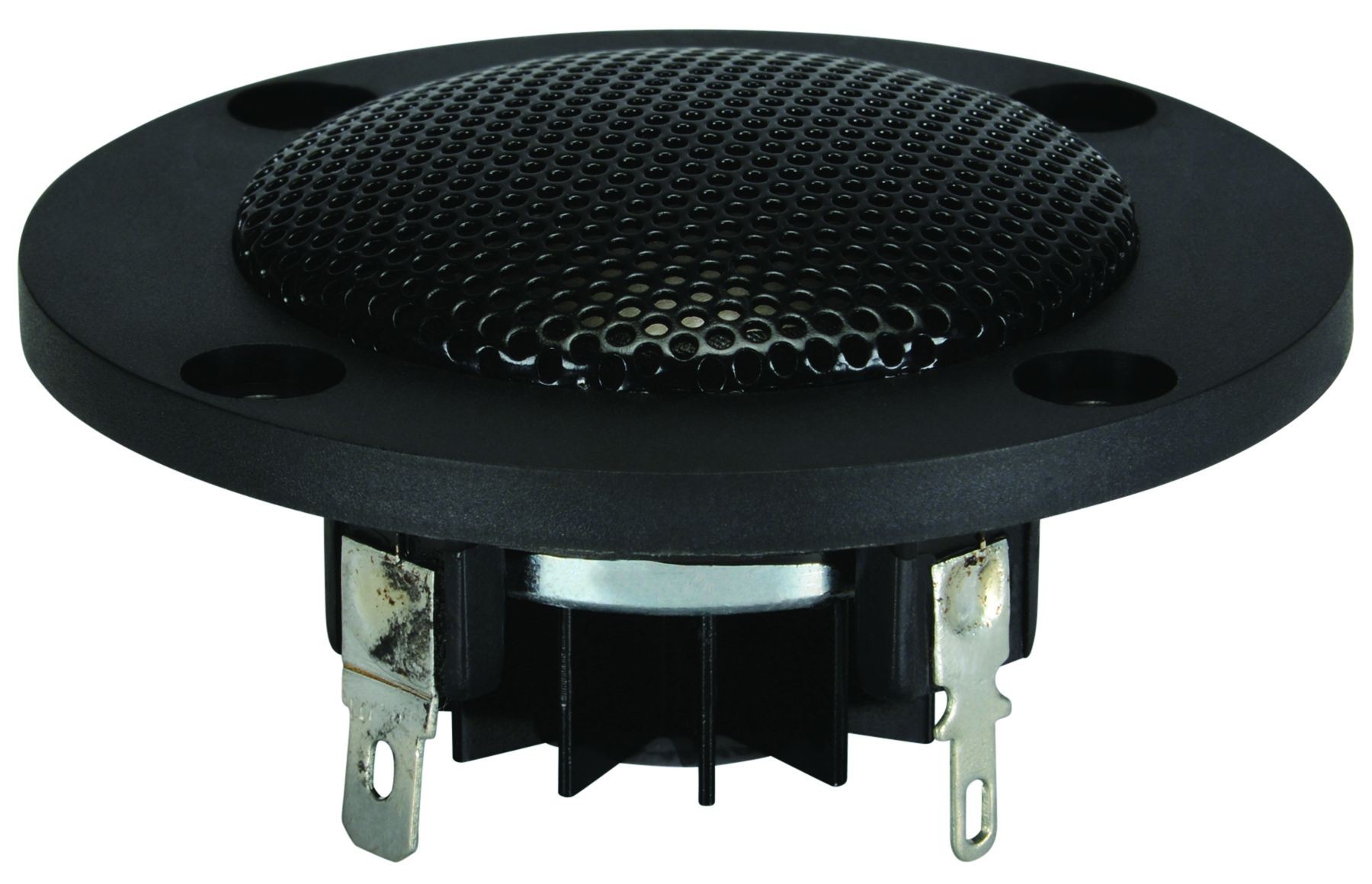

Dayton Audio ND25TA-4

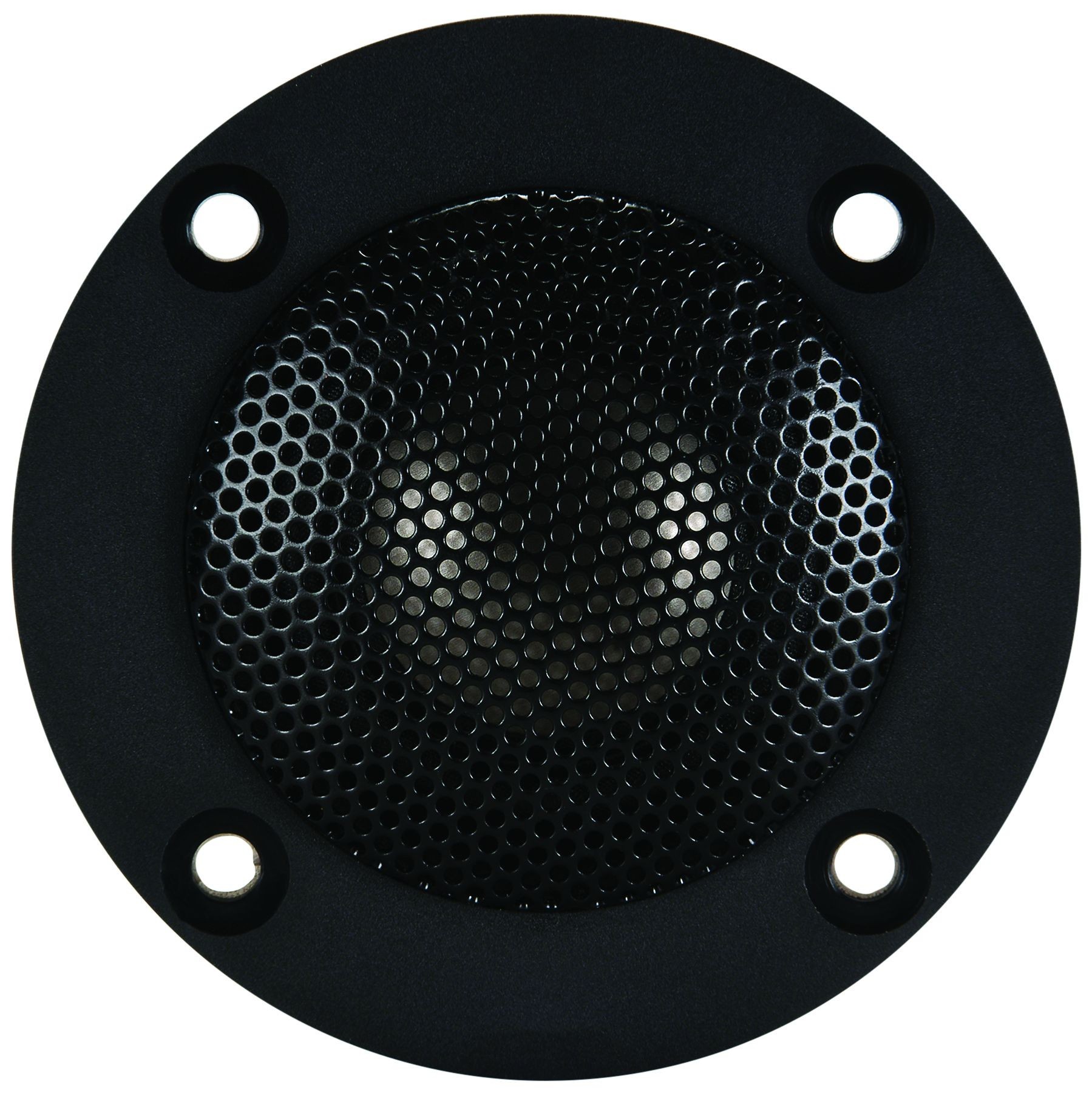

Dayton Audio ND25TA-4 front

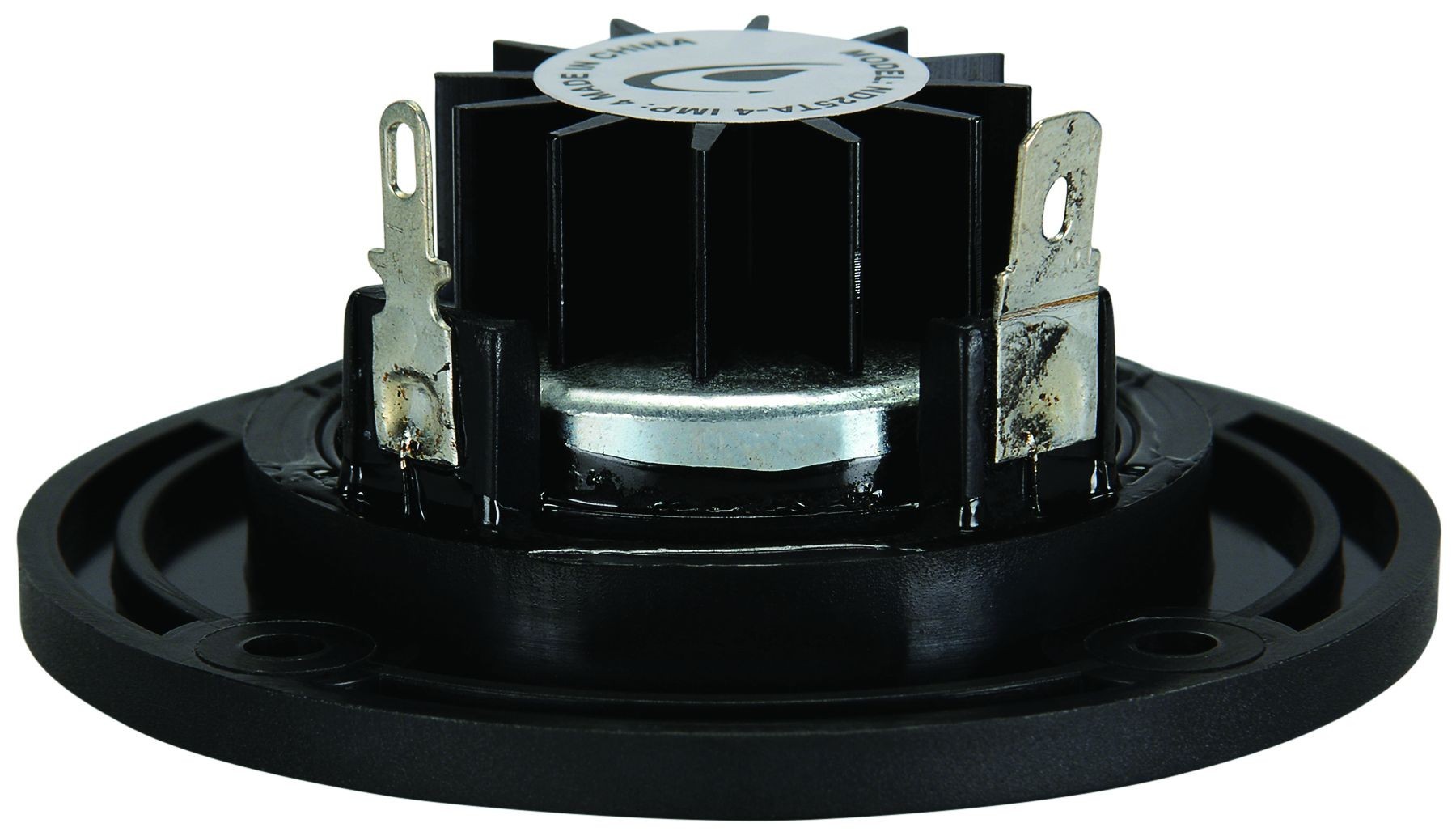

Dayton Audio ND25TA-4 back

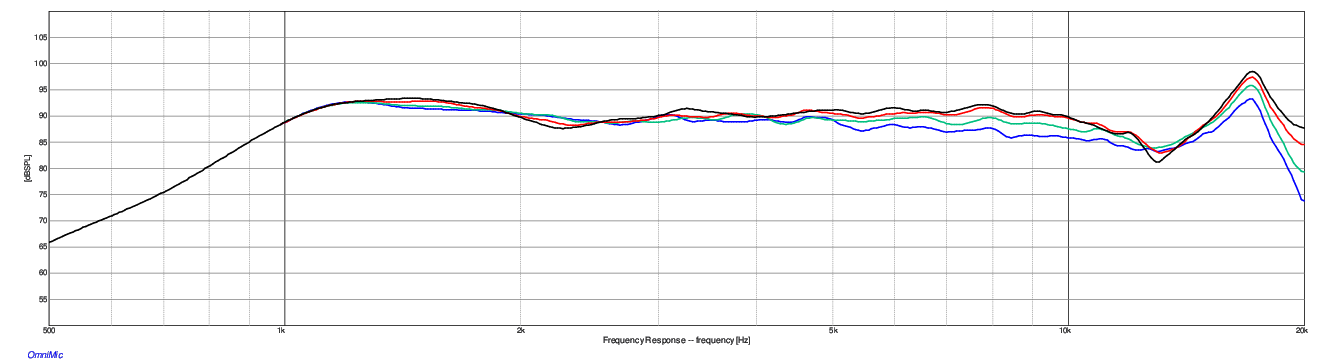

Dayton Audio ND25TA-4 frequency chart

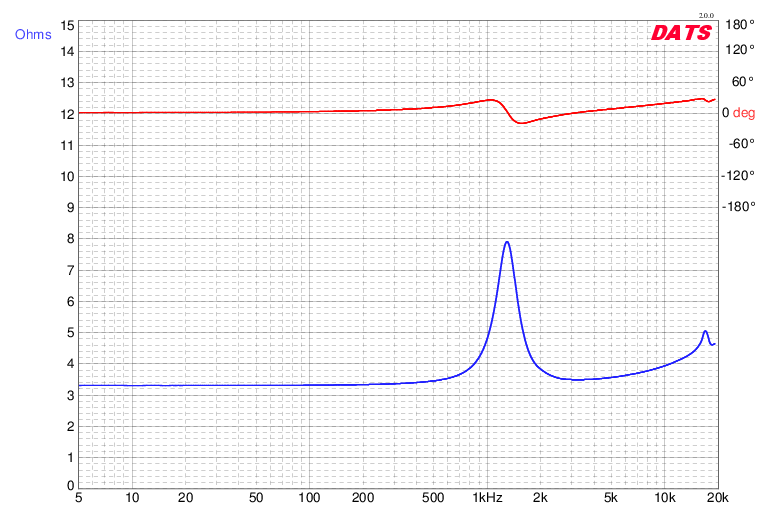

Dayton Audio ND25TA-4 impedance chart

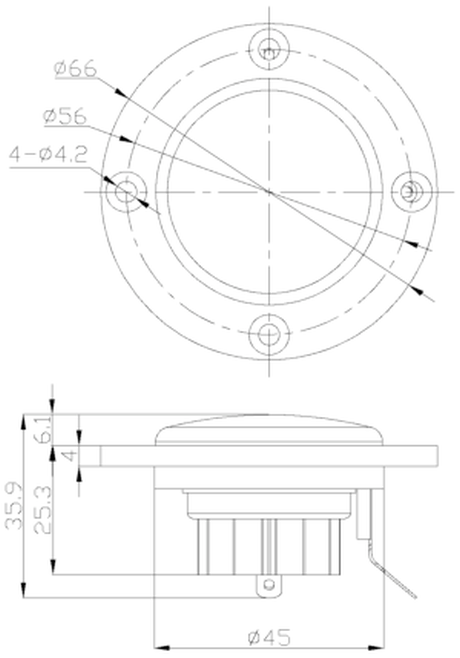

Dayton Audio ND25TA-4 dimensions

€19.95 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • Order number: da-275-057
Description Evaluations 0
Description
The Dayton Audio ND25TA-4 is a versatile 1” titanium-dome tweeter that offers the performance of... more
Close menu
Product information "Dayton Audio ND25TA-4"

The Dayton Audio ND25TA-4 is a versatile 1” titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. It features a Dayton Audio exclusive round faceplate design with integral perforated steel grille, and a small yet powerful neodymium motor with attached aluminum heatsink and ferrofluid-filled magnetic gap for reduced power compression and improved long-term power handling. The carefully-designed titanium diaphragm provides clean, crisp treble response to beyond 22kHz, and delivers superb sonic detail and dynamics with low distortion. A copper pole cap further reduces distortion and inductance effects.



Specifications

  • power handling (continuous/programme) = 15 W
  • frequency range = 1470-25000 Hz
  • resonance frequency fs = 1470 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,0 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • voice coil inductance L = 0,48 mH
  • effective piston radiating area Sd = 7,5 cm2
  • total Q factor Qts = 1,45 (Qms=3,24, Qes=2,63)
  • voice coil diameter = 25 mm
  • mounting diameter d = 45 mm
  • overall diameter d = 66 mm
  • mounting depth (not countersunk) t = 21,3 mm
