SB Acoustics SB26STC-C000-4

SB Acoustics
Preview: SB Acoustics SB26STC-C000-4 Preview: SB Acoustics SB26STC-C000-4 charts Preview: SB Acoustics SB26STC-C000-4 parameter Preview: SB Acoustics SB26STC-C000-4 dimensions

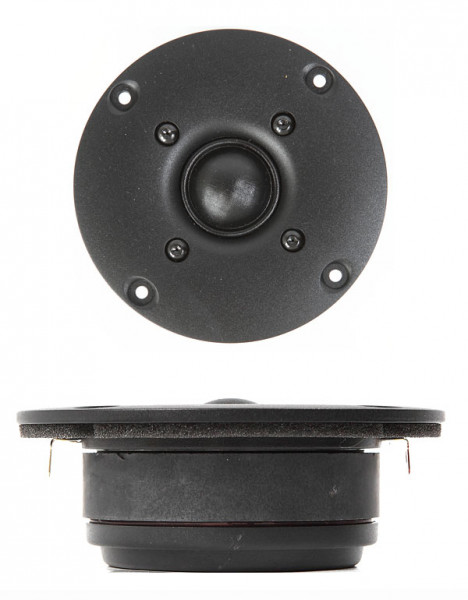

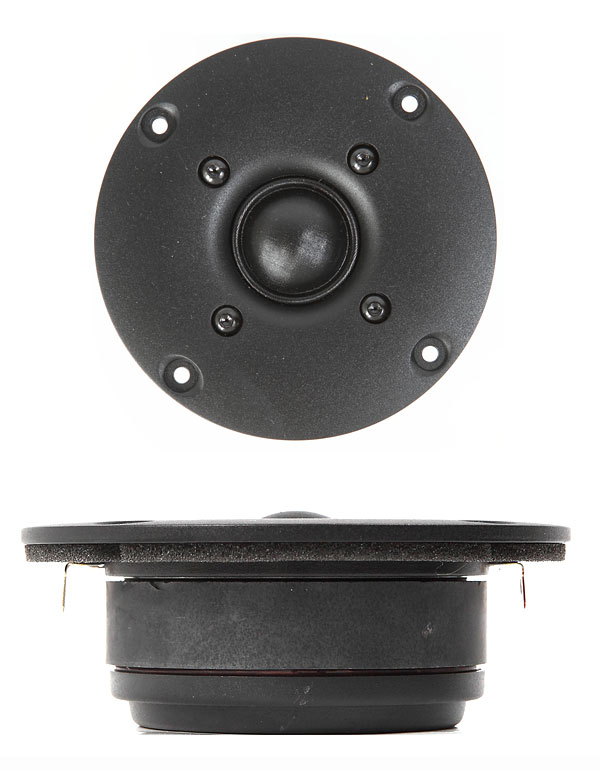

SB Acoustics SB26STC-C000-4

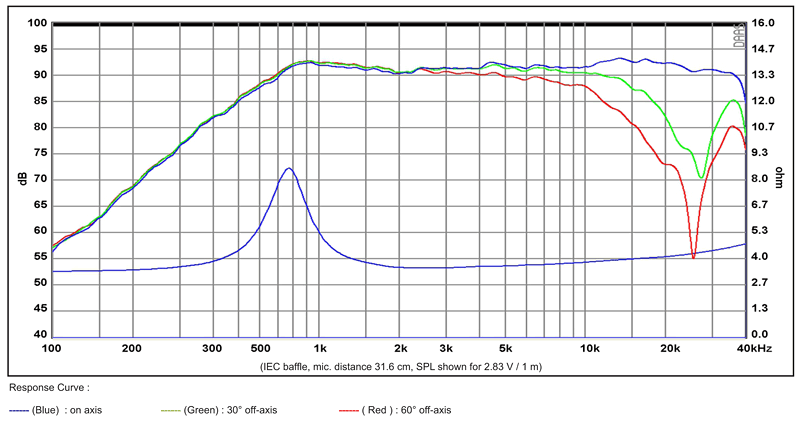

SB Acoustics SB26STC-C000-4 charts

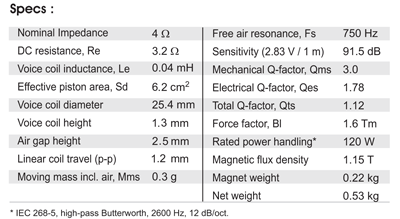

SB Acoustics SB26STC-C000-4 parameter

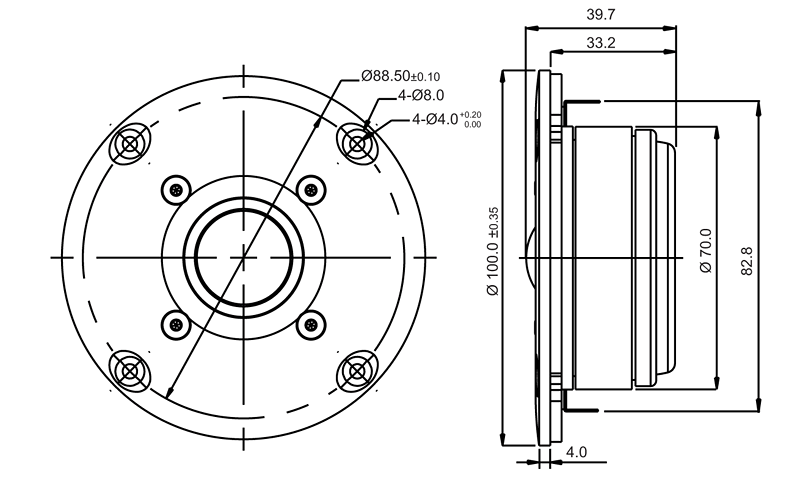

SB Acoustics SB26STC-C000-4 dimensions

€32.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1382301
Description Evaluations 0
Description
SB Acoustics SB26STC-C000-4 1" Tweeter Copper cap for reduced voice coil inductance and... more
Close menu
Product information "SB Acoustics SB26STC-C000-4"

SB Acoustics SB26STC-C000-4 1" Tweeter

  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • Fine weave soft fabric dome for smooth frequency response
  • Saturation controlled motor system for low distortion
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency



Specifications

  • power handling (continuous/programme) = 120 W
  • frequency range = 400-40000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 1,12 (Qms=3, Qes=1,78)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 82,8 mm
  • overall diameter d = 100 mm
  • mounting depth (not countersunk) t = 39,63 mm
