Monacor DT-100

Monacor
Preview: Monacor DT-100 Preview: Monacor DT-100 Preview: Monacor DT-100
Monacor DT-100
Monacor DT-100
Monacor DT-100

This product is currently not available.
€34.54 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: mon-dt100
Description Evaluations 0
Description
25 mm dome tweeter with fabric dome.   Soft dome of high power capability, classic... more
Close menu
Product information "Monacor DT-100"

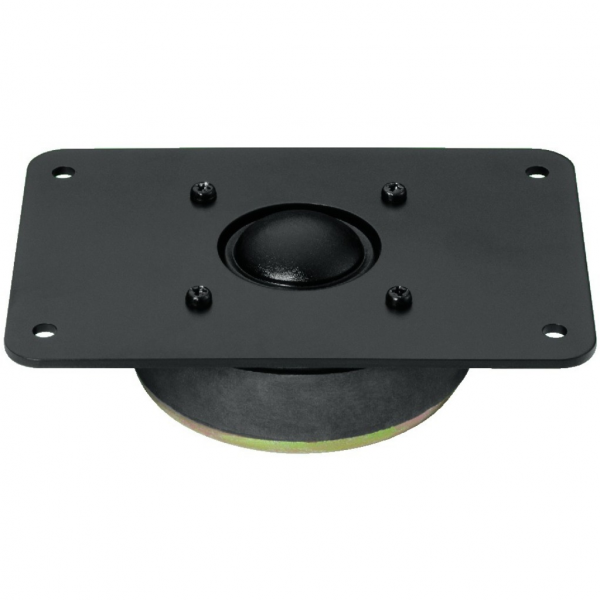

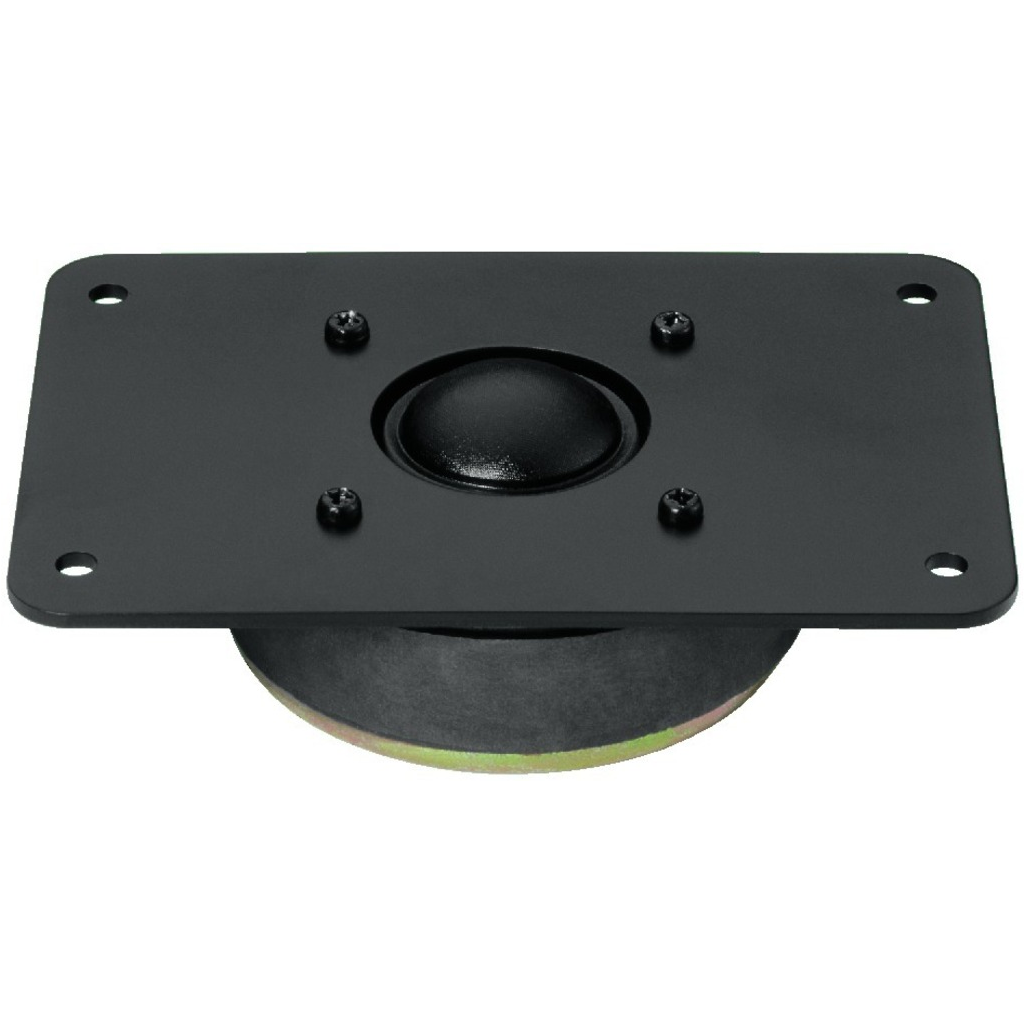

25 mm dome tweeter with fabric dome.



Soft dome of high power capability, classic rectangular size, ferrofluid, good linearity with extra brilliant characteristics, reproduction rich in detail, suitable for all HiFi purposes.



Specifications

  • power handling (continuous/programme) = 30/60 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 1500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 25 mm

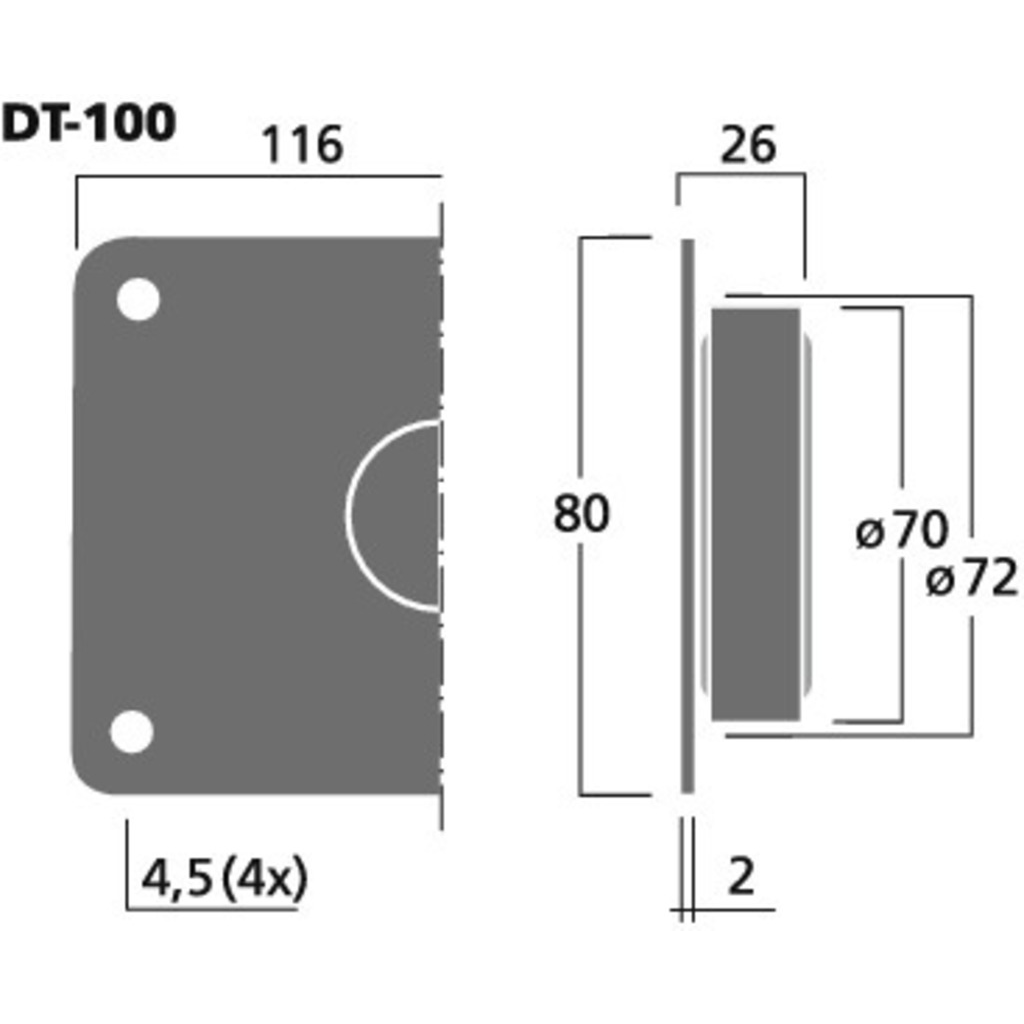

  • mounting diameter d = 72 mm
  • overall diameter d = 80 x 116 mm
  • mounting depth (not countersunk) t = 26 mm
  • mass m = 0,58 kg
