- Order number: mon-dtm104-8
Hi-fi dome tweeters, 100W MAX , 8Ω (/8) and 4Ω (/4) Textile dome tweeter with Kapton voice... more
Product information "Monacor DTM-104/8"
Hi-fi dome tweeters, 100WMAX, 8Ω (/8) and 4Ω (/4)
- Textile dome tweeter with Kapton voice coil former
- Excellent radiation pattern due to waveguide
- Very well-suited as a replacement for high-quality hi-fi speakers
Impedance (Z) 4Ω
Resonant frequency (fs) 1,200Hz
Max. frequency range fx-19,000Hz
Rec. crossover freq. (12dB) 2,500Hz
Music power 100WMAX
Power rating 45WRMS
SPL (1W/m) 92dB

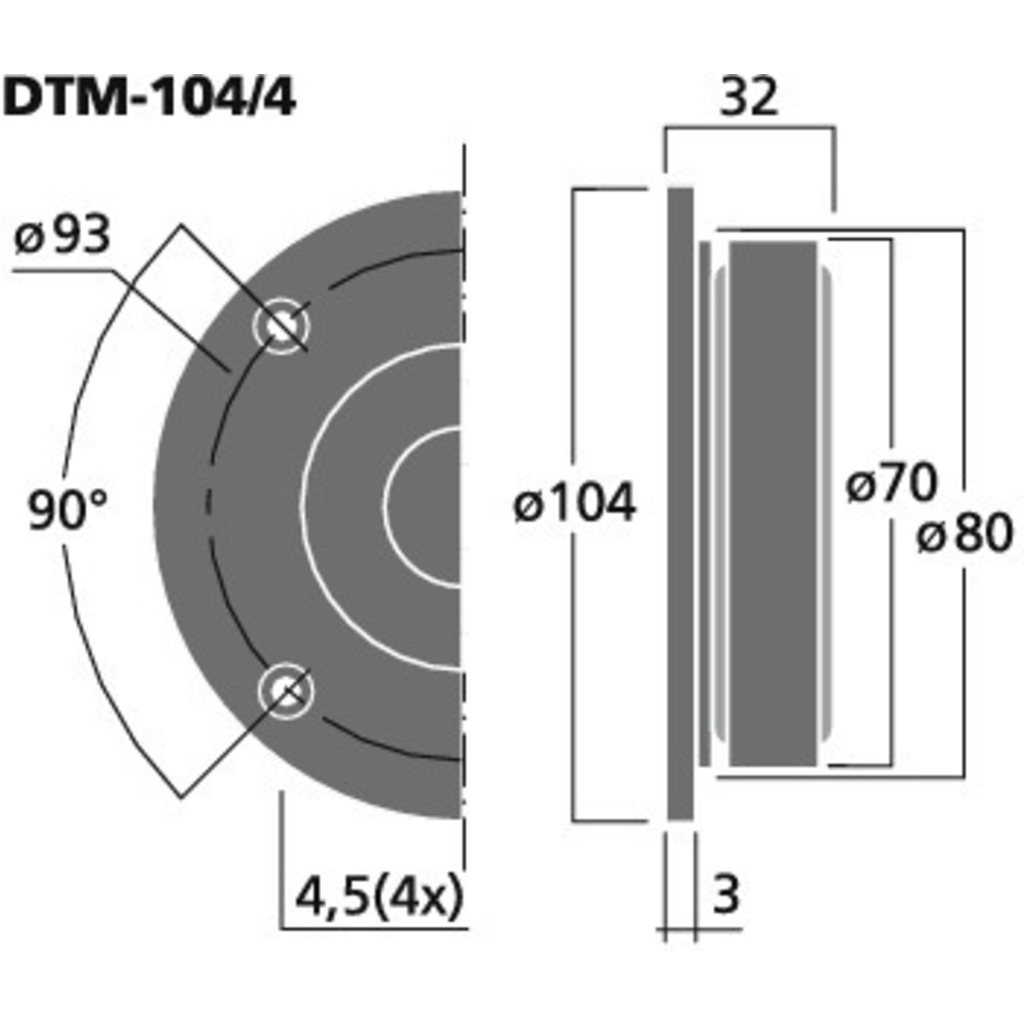

Voice coil diameter 25mm
Magnet diameter 70mm
Mounting cutout Ø 80mm
Mounting depth 32mm
Dimensions Ø 104mm
Weight 520g
