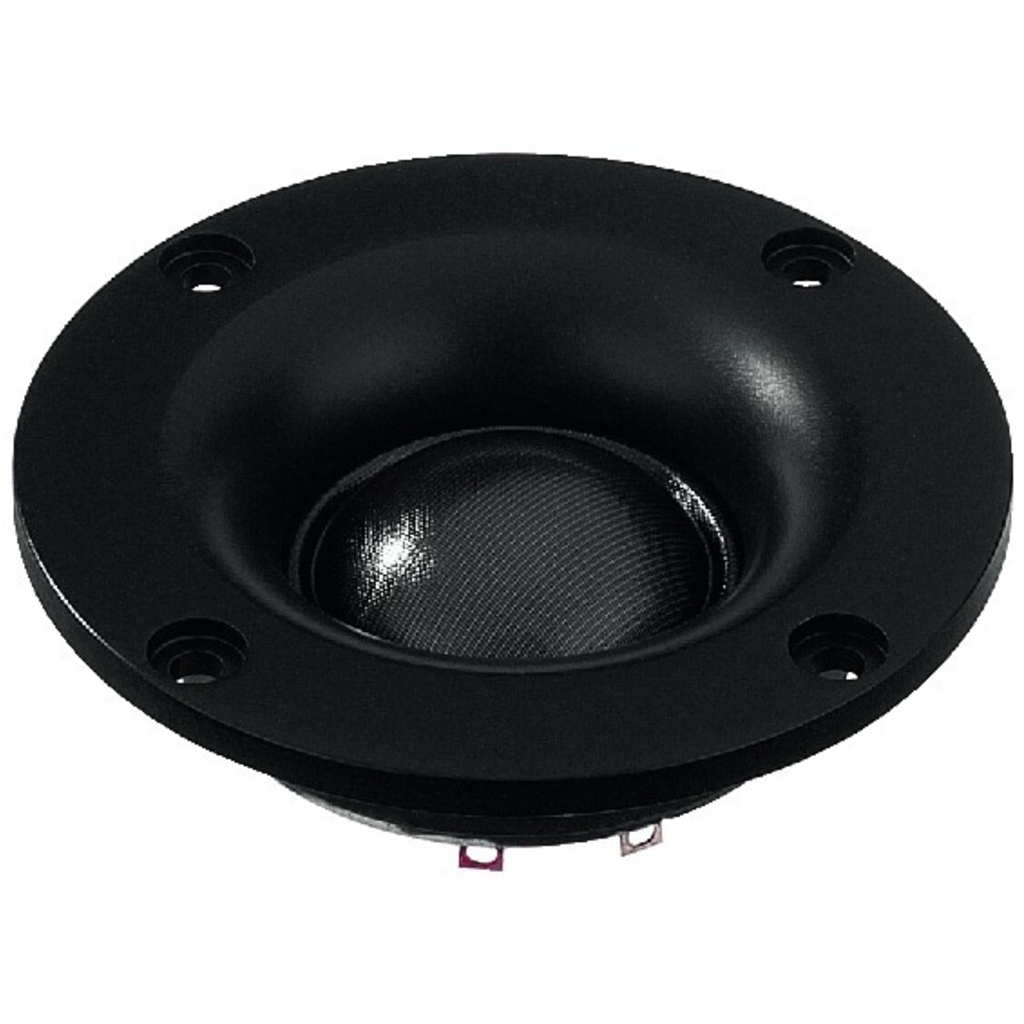

Monacor DT-25N

Neodymium hi-fi tweeter, 40 W, 8 Ω

• Outstanding sound characteristics
• Silk soft dome cone with optimised geometry
• Front plate with a specially adapted design
• Very linear reproduction even of lower frequencies
• High efficiency
• Low magnetic dispersion and mechanically very compact due to the application of a high-performance neodymium magnet
• Ideally suited for building smaller speaker systems
• For high-quality standing hi-fi speakersy, e.g. in D'Appolito arrangements
• Very fine and natural sound

Specifications

• power handling (continuous/programme) = 40/80 W

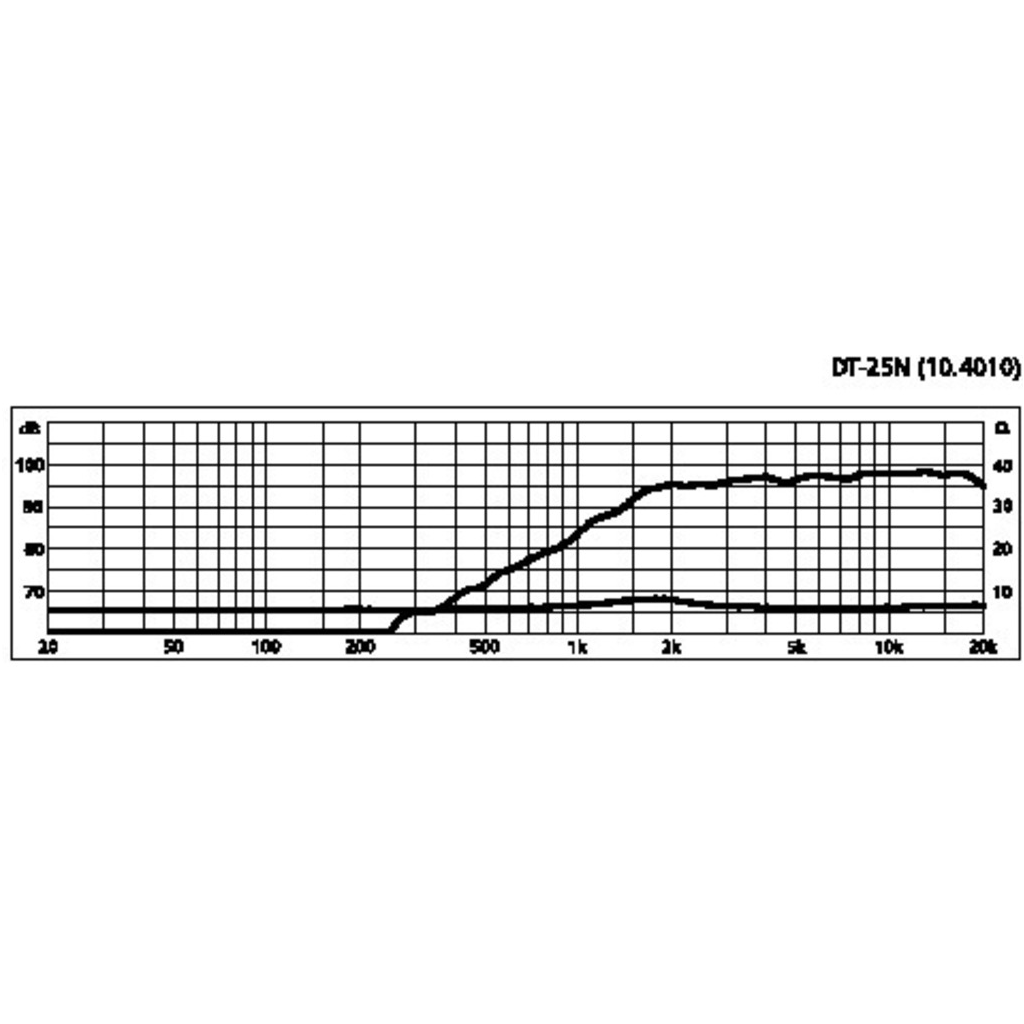

• frequency range = 2000-20000 Hz
• resonance frequency fs = 1600 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 95 dB (2,83V; 1m)
• voice coil diameter = 25 mm

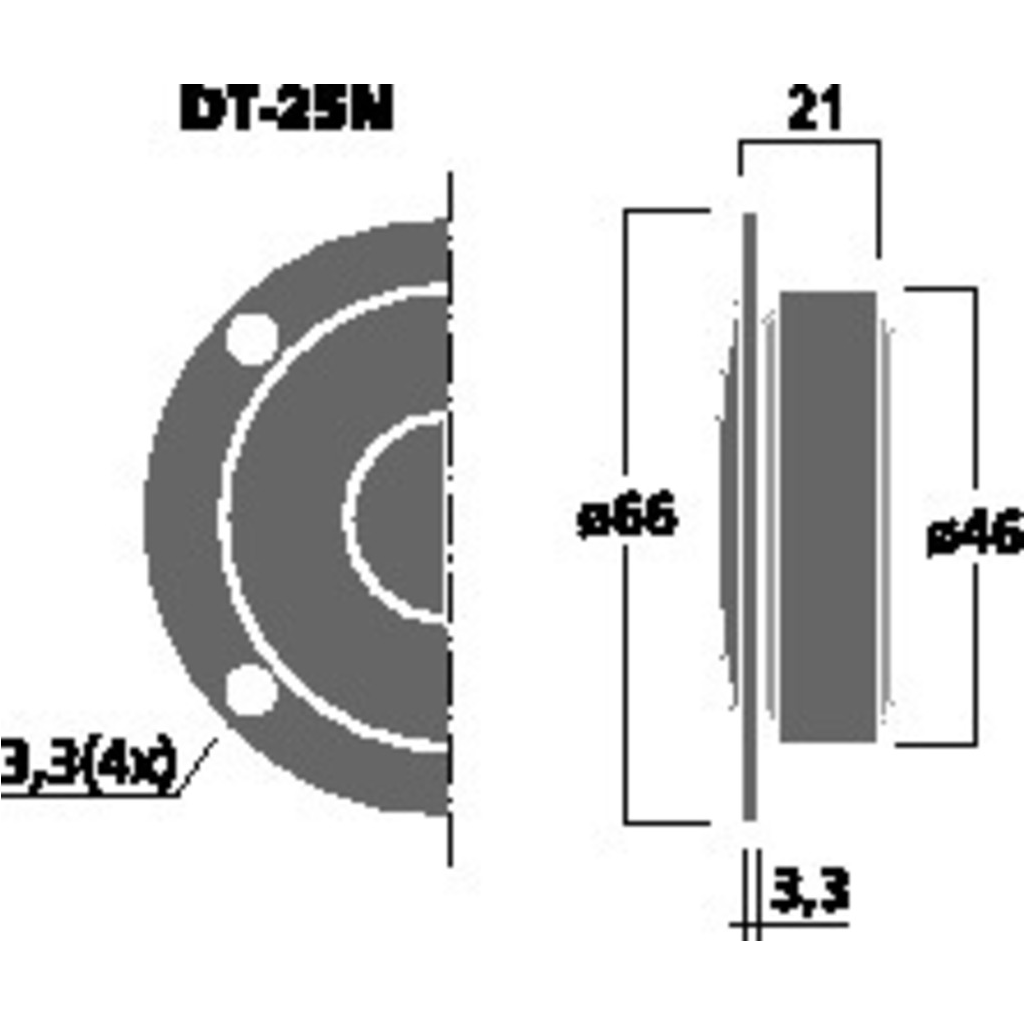

• mounting diameter d = 46 mm
• overall diameter d = 66 mm
• mounting depth (not countersunk) t = 21 mm
• mass m = 0,07 kg
