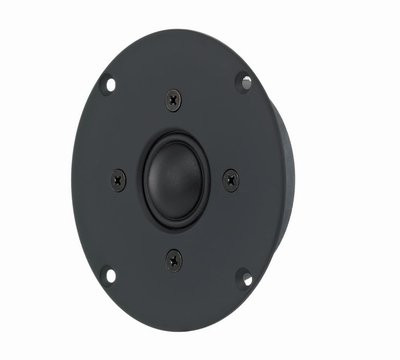

Visaton G 25 FFL

Visaton G 25 FFL - 8 Ohm

25 mm (1") fabric dome driver for the high-frequency range above 2000 Hz. Due to the optimised dome shape with double coating in conjunction with the highly damped surround, linear frequency response has been made possible. Due to the powerful magnetic driver and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed.

Specifications

• power handling (continuous/programme) = 120/180 W
• frequency range = 1000-30000 Hz
• resonance frequency fs = 1500 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• voice coil diameter = 25 mm

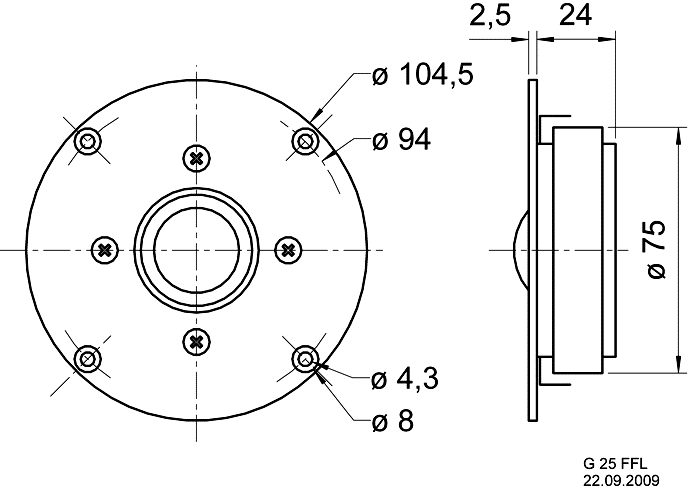

• mounting diameter d = 80 mm
• overall diameter d = 104 mm
• mounting depth (not countersunk) t = 24 mm
