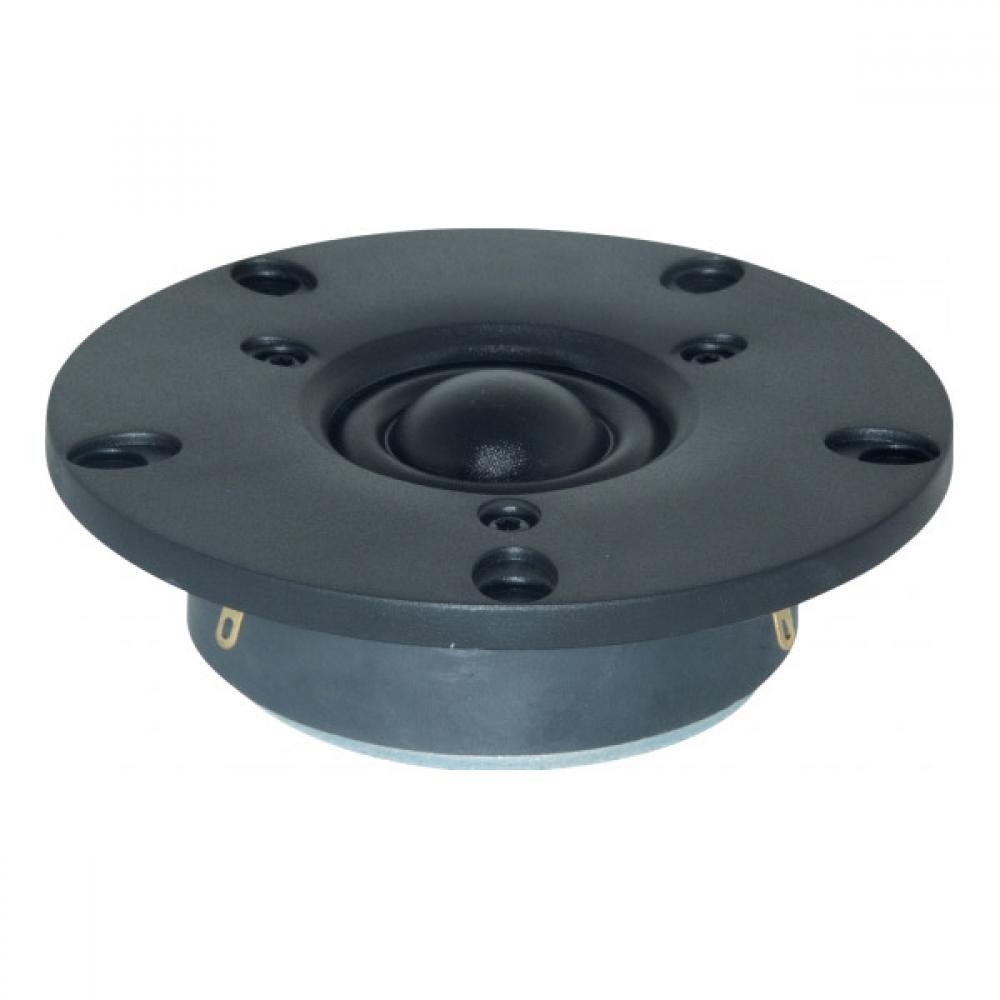

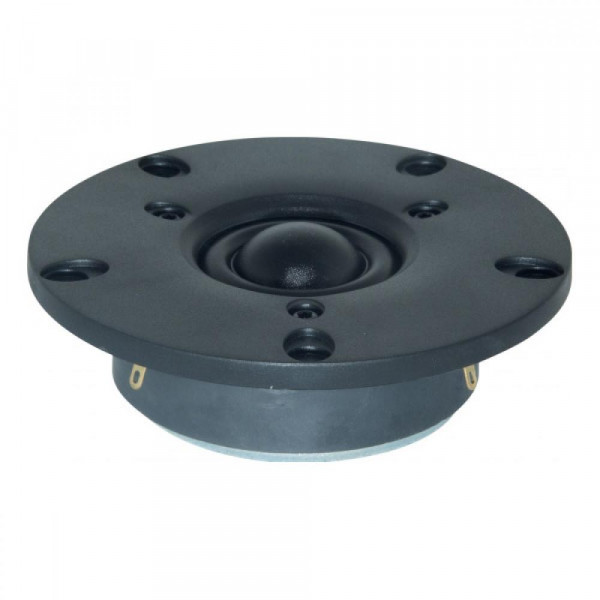

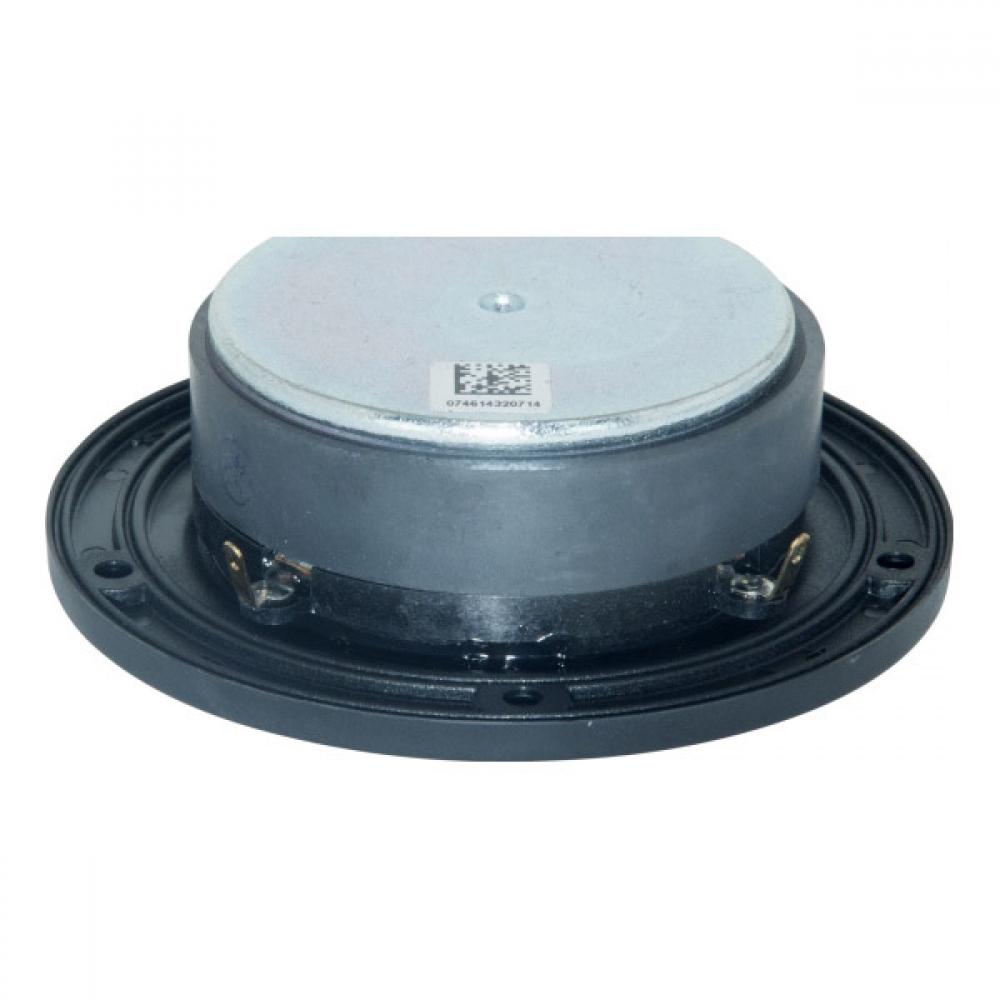

This DX family tweeter features a 4 ohm 25 mm ferrofluid-cooled voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.
Specifications
power handling (continuous/programme) = 100 W
frequency range = 1000-23000 Hz
resonance frequency fs = 703 Hz
impedance R = 4 Ohm
sound pressure level SPL = 93 dB (2,83V; 1m)
DC resistance Re = 3 Ohm
force factor BL = 1.52 N/A
voice coil inductance L = 0,02 mH
effective piston radiating area Sd = 8,2 cm2
effective mechanical mass incl. air load mms = 0,4 g
total Q factor Qts = 0,58 (Qms=3,43, Qes=0,69)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 0,1 mm
