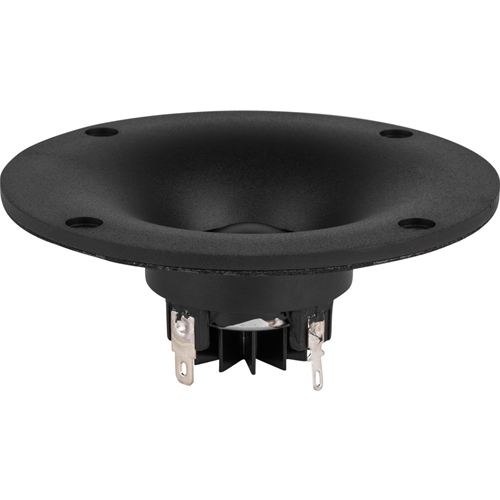

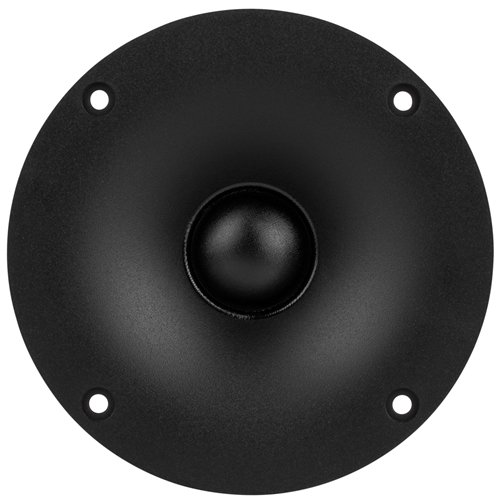

ND25FW-4 1" Soft Dome Neodymium Tweeter with Waveguide 4 Ohm
The Dayton Audio ND25FW-4 tweeter features a unique integrated round waveguide faceplate that provides a controlled directivity transition at high frequencies, reducing the effect of room reflections on the speakers tonal balance. Unlike conventional flat-faceplate dome tweeters whose directivity does not match the midwoofer driver near the crossover frequency, the ND25FW-4s waveguide is curved to maintain consistent directivity at the transition. The waveguide also acts as a low-compression horn, lowering distortion. Waveguide-loaded dome tweeters are embraced within the industry for providing directivity control and mild horn loading without the negative effects of compression loading such as impulse smear and throat distortion where high levels are not needed. The waveguide profile used in the ND25FW-4 provides a minimum dispersion angle of about 90 degrees, and maintains directivity control to about 2,000 Hz, but the round waveguide will install easily into the same 104 mm standard tweeter cutout used commonly by dome tweeters with larger ferrite motors.
Product Highlights
Waveguide-loaded 1" treated silk dome
Waveguide provides controlled directivity and higher efficiency

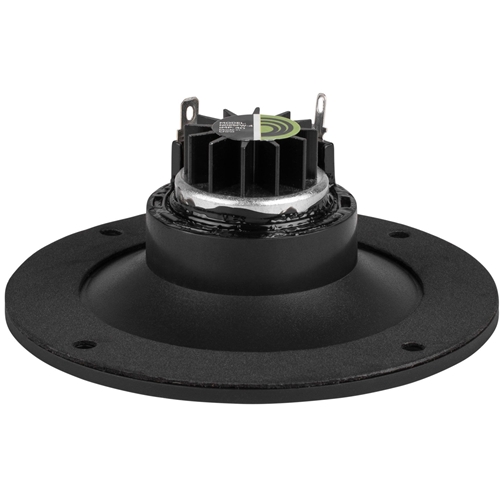

High-strength neodymium motor with heatsink and ferrofluid cooling

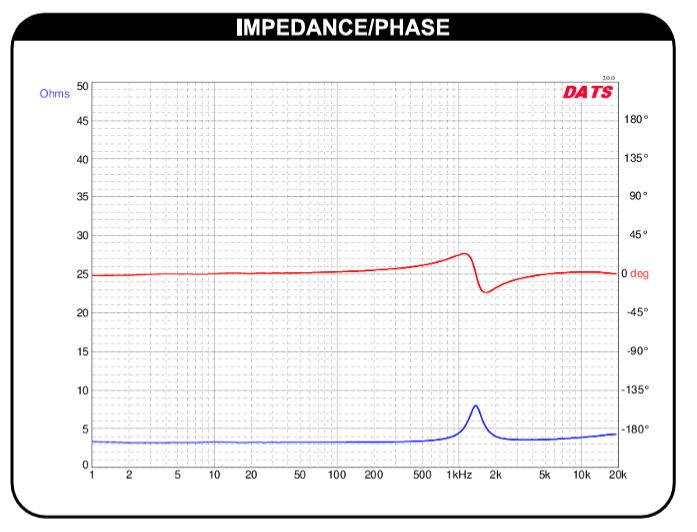

Low Fs of 1,350 Hz can accommodate crossover points as low as 2,500 Hz

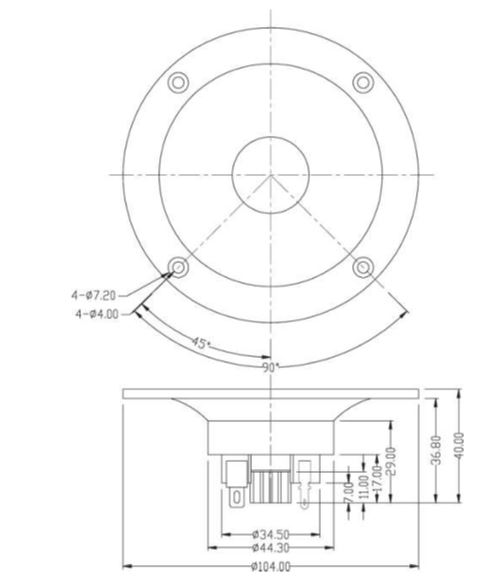

Standard 104 mm tweeter cutout for easy integration into many existing systems
Included foam gasket ensures a good seal to the enclosure
