Dayton Audio’s TD25F-4 1” soft dome tweeter is ideal for adding natural high frequency response to cost effective projects. Capable of handling a crossover frequency as low as 2,000 Hz (@ 12 dB/octave), the TD25F-4 makes a great choice for use in compact 2-way designs.
Highlights
1” silk dome delivers high efficiency and smooth response
Semi-horn loaded faceplate protects the dome while controlling off-axis response
Low Fs for use with crossovers as low as 2,000 Hz (@12 dB/octave)
Perfect choice for use in budget 2-way designs
Product details

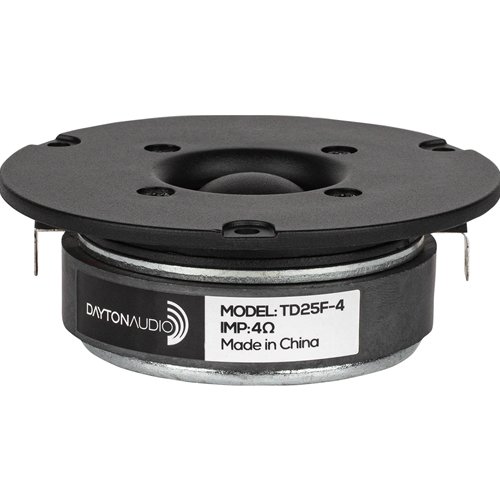

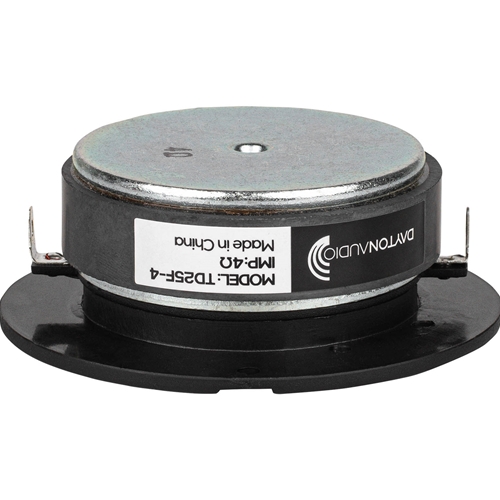

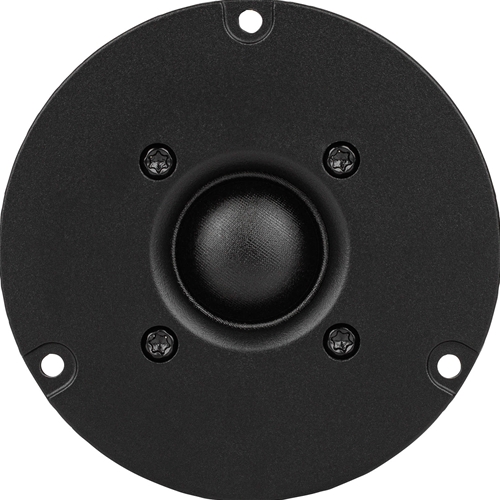

Dayton Audio TD25F-4 1" Soft Dome Tweeter 4 Ohm

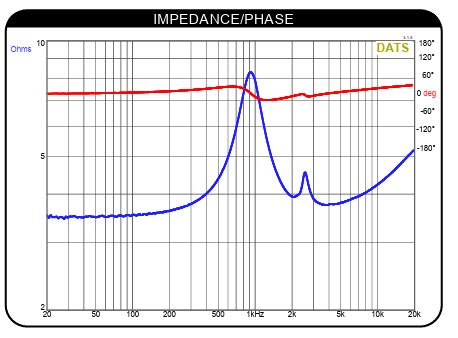

With a 1” silk dome the TD25F-4 from Dayton Audio produces smooth and natural high frequency output. The semi-horn loaded faceplate helps to control the off-axis response while recessing the dome for extra protection. An Fs of 900 Hz makes this tweeter suitable for use with a crossover as low as 2,000 Hz for an easy transition to most 6-1/2” woofers. The TD25F-4 is an excellent choice for use in cost effective, but high performance, 2-way speaker systems.
