Dayton Audio NHP25Ti-4

€19.15 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

Order number: da-nhp25ti-4

NHP25Ti-4 1" Titanium Dome High Power Neodymium Tweeter 4 Ohm Quick Overview The... more

Close menu

Product information "Dayton Audio NHP25Ti-4"

Quick Overview

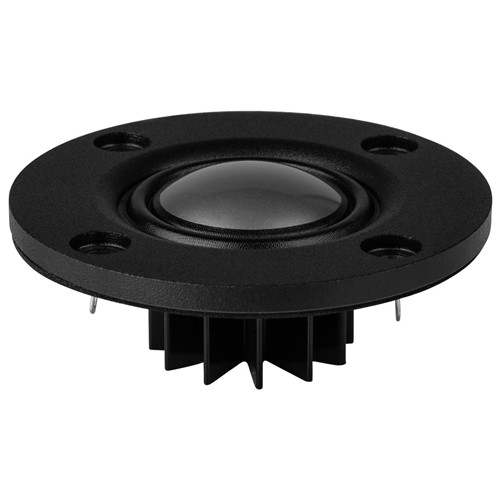

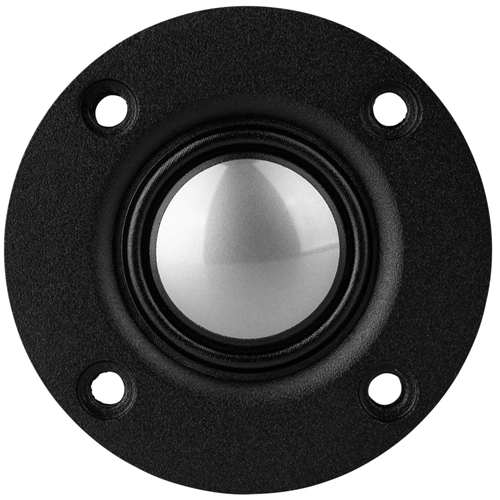

The Dayton Audio compact NHP25Ti-4 1" titanium dome tweeter uses a high temperature neodymium motor, Ferrofluid cooling, and rear mounted heatsink for improved heat dissipation making this tweeter suitable for higher output systems and even professional line arrays. In addition, the flat response and high efficiency makes the NHP25Ti-4 an amazing value.

Product Highlights

Extremely smooth response makes for easy transition to midrange diver
Over 94 dB efficiency is perfect for use in higher output designs
Attached heatsink and ferrofluid cooling for increased power handling
Compact cast aluminum faceplate minimizes center-to-center distance
High temperature neodymium motor allows high output for extended periods

Specifications

power handling (continuous/programme) = 40 W

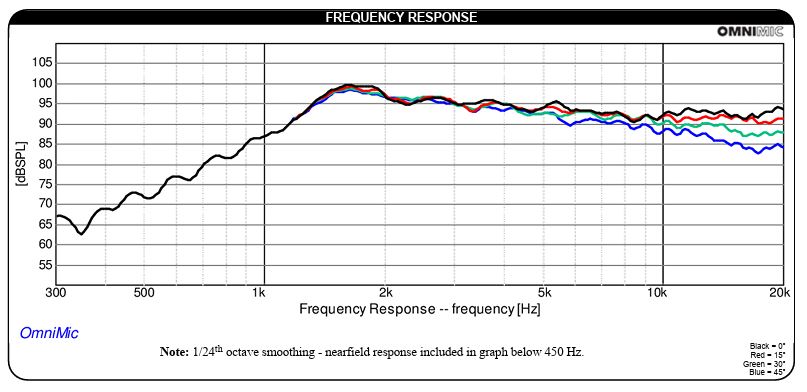

frequency range = 3000-20000 Hz

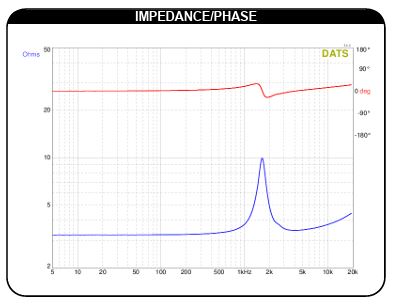

resonance frequency fs = 1612 Hz
impedance R = 4 Ohm
sound pressure level SPL = 94,0 dB (2,83V; 1m)
DC resistance Re = 3,23 Ohm
voice coil inductance L = 0,3 mH
effective piston radiating area Sd = 7,5 cm²
total Q factor Qts = 1,71 (Qms=5,23, Qes=2,54)
voice coil diameter = 25 mm

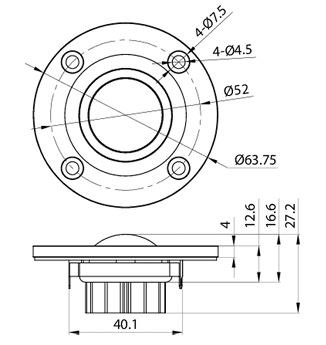

mounting diameter d = 40,1 mm
overall diameter d = 63,75 mm
mounting depth (not countersunk) t = 19,2 mm
