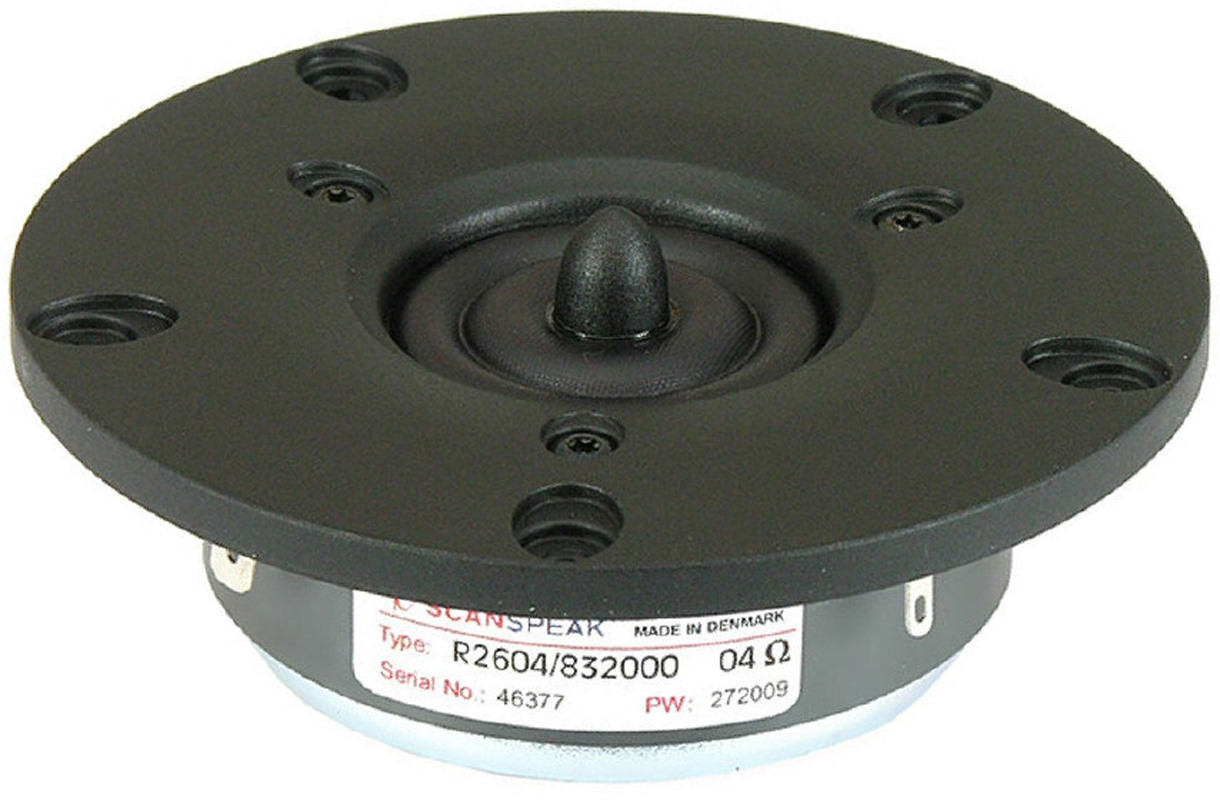

Product information "Scan-Speak R2604/8320.00"
The Scan-speak R2604/8320.00 1" Ring Radiator Tweeters offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
- Dual Ring Radiator diaphragm (Patent)
- Wave-guide center plug (Patent)
- Extended Frequency To Above 40KHz
- Very Low Resonance Frequency - 500Hz
- Low Distortion
- Coated Fabric Diaphragm
- Rear Chamber
- Copper-clad aluwire
Specifications
- power handling (continuous/programme) = 100 W

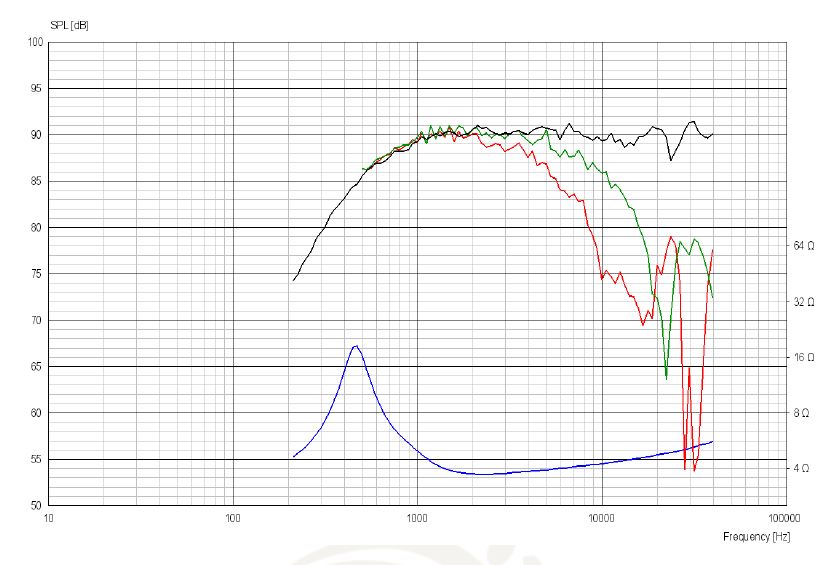

- frequency range = 1000-38000 Hz
- resonance frequency fs = 500 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 90 dB (2,83V; 1m)
- DC resistance Re = 2,9 Ohm
- force factor BL = 2,3 N/A
- voice coil inductance L = 0,02 mH
- effective piston radiating area Sd = 5,4 cm2
- effective mechanical mass incl. air load mms = 0,3 g
- equivalent volume of compliance Vas = 0,01 l
- total Q factor Qts = 0,44 (Qms=2,77, Qes=0,52)
- voice coil diameter = 26 mm
- maximum peak linear excursion vibration xlin = +/- 0,2 mm

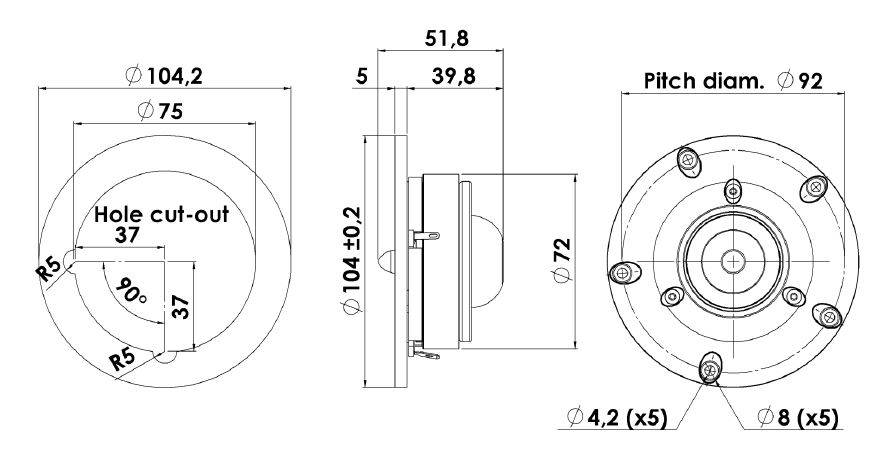

- mounting diameter d = 72 mm
- overall diameter d = 104 mm
- mounting depth (not countersunk) t = 44,8 mm
