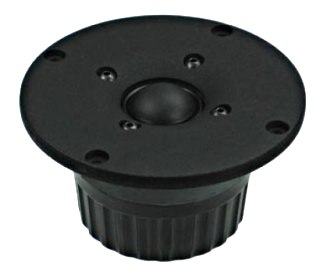

The T25CF001 E0006-06 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency.
Low viscosity magnetic fluid which provides excellent cooling while maintaining a low resonance frequency.

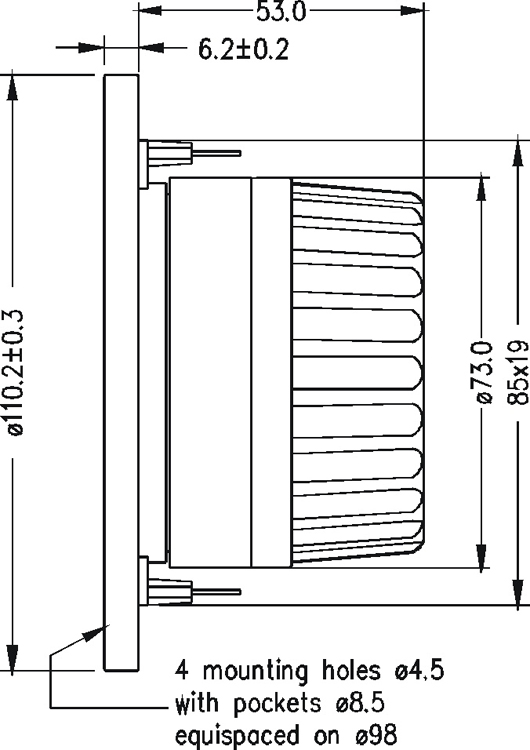

6 mm solid metal front plate with a slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet.
A substantial injection-moulded rear chamber, with complex internal shape and reinforcing ribs, which eliminate unwanted chamber resonances and reflections.
A double magnet system which increases sensitivity and provides better control of the voice coil.
This system also reduces the magnetic stray fields, making the T25CF001 an ideal choice in high end A/V applications.
TC25CF001 Specifications
power handling (continuous/programme) = 90/200 W

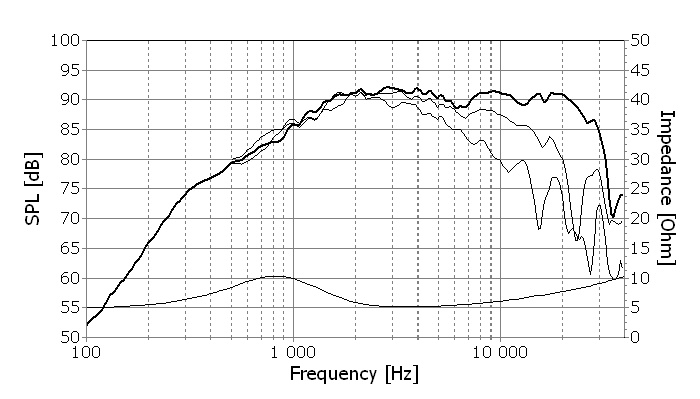

frequency range = 2000-25000 Hz
resonance frequency fs = 700 Hz
impedance R = 6 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 4,6 Ohm
force factor BL = 3,5 N/A
voice coil inductance L = 0,05 mH
effective piston radiating area Sd = 7 cm2
effective mechanical mass incl. air load mms = 0,33 g
