Morel CAT 378

Morel
Preview: Morel CAT 378 Preview: Morel CAT 378 Preview: Morel CAT 378 Preview: Morel CAT 378 Preview: Morel CAT 378
Morel CAT 378
Morel CAT 378
Morel CAT 378
Morel CAT 378
Morel CAT 378

€89.57 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 753086
Description Evaluations 0
Description
The magnet assembly of the CAT 378 is vented into a damped rear chamber to lower resonance and... more
Close menu
Product information "Morel CAT 378"

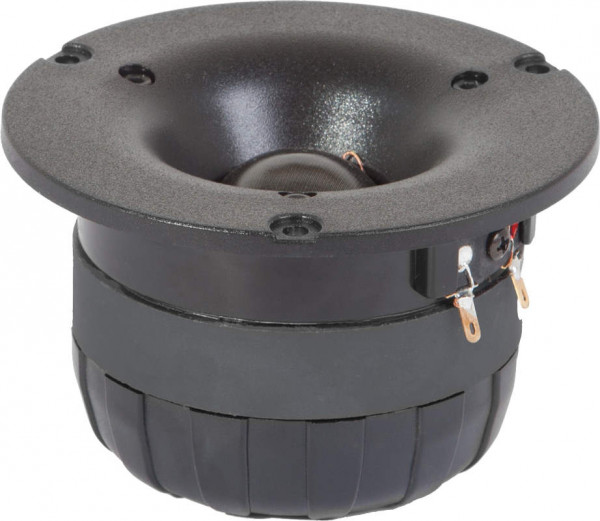

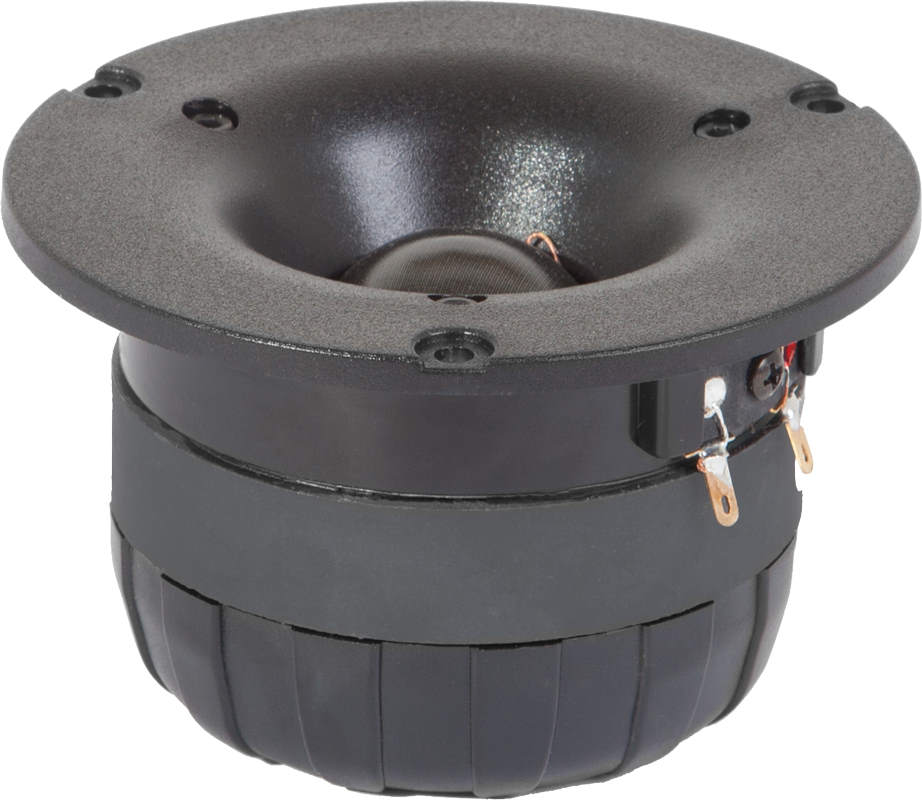

The magnet assembly of the CAT 378 is vented into a damped rear chamber to lower resonance and to eliminate "honking" at lower frequencies. Latest evolution of the popular MDT-37 tweeter.

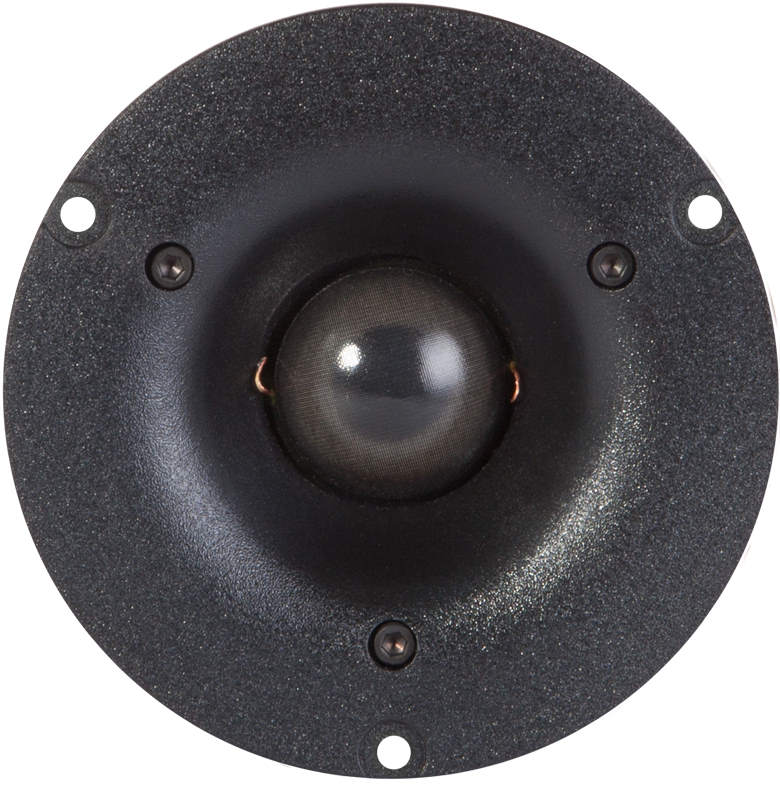

  • 94 mm horn-loading faceplate
  • Large Hexatech™ aluminum voice coil
  • Replaceable Acuflex™ dome/coil assembly
  • High sensitivity
  • High power handling
  • Sturdy gold plated input tags



Specifications

  • power handling (continuous/programme) = 200 W

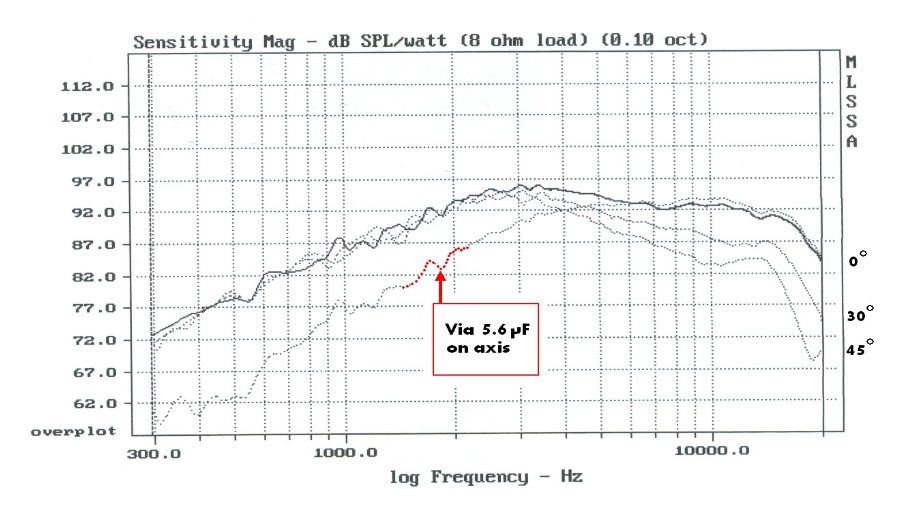

  • frequency range = 1800-22000 Hz
  • resonance frequency fs = 700 Hz

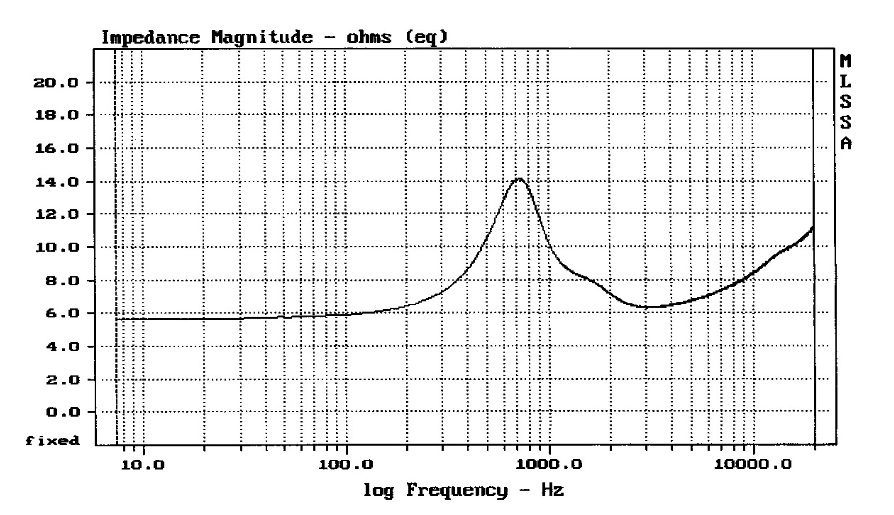

  • impedance R = 8 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,09 mH
  • effective piston radiating area Sd = 6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • voice coil diameter = 28 mm

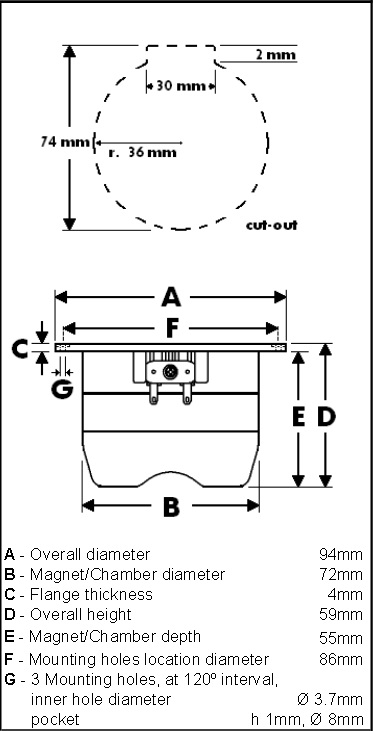

  • mounting diameter d = 72 mm
  • overall diameter d = 94 mm
  • mounting depth (not countersunk) t = 55 mm
