Dayton Audio DC28FS-8

Dayton Audio
Preview: Dayton Audio DC28FS-8 Preview: Dayton Audio DC28FS-8 frequency curve Preview: Dayton Audio DC28FS-8 impedance curve Preview: Dayton Audio DC28FS-8 dimensions

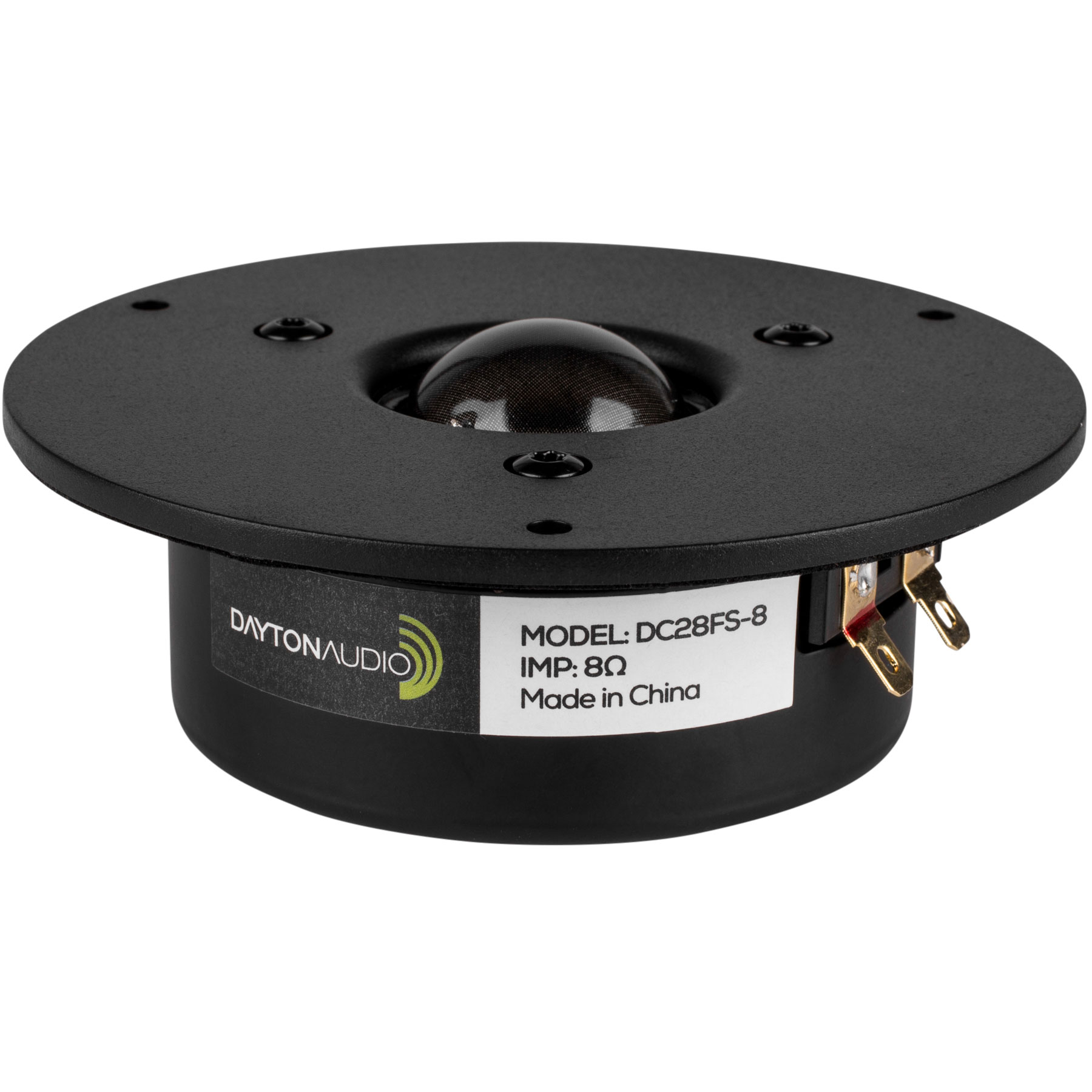

Dayton Audio DC28FS-8

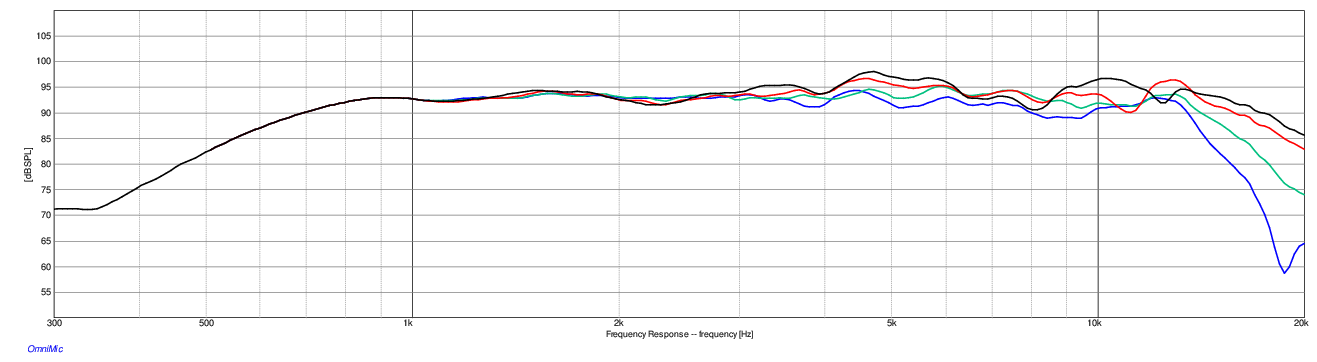

Dayton Audio DC28FS-8 frequency curve

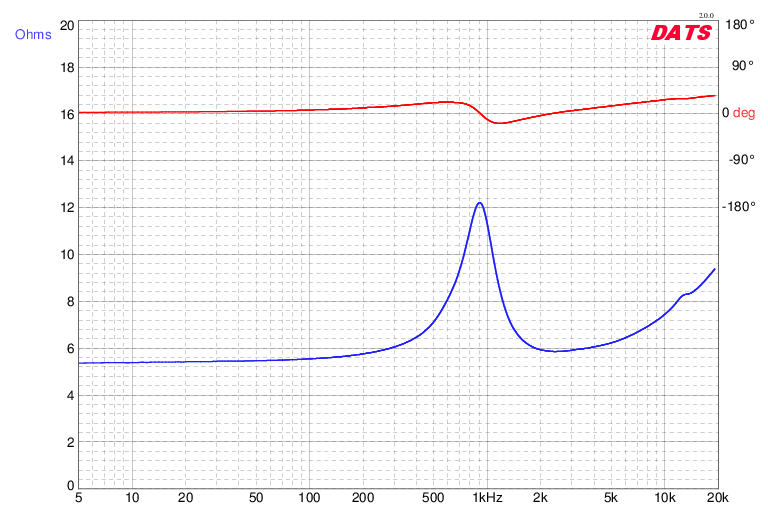

Dayton Audio DC28FS-8 impedance curve

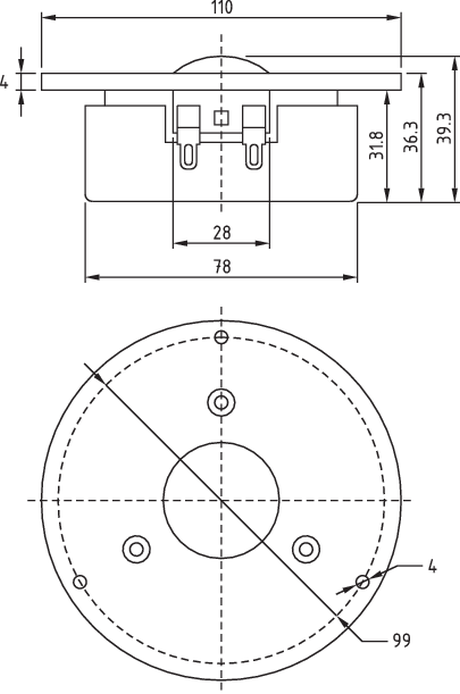

Dayton Audio DC28FS-8 dimensions

€39.28 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: da-dc28fs-8
Description Evaluations 0
Description
DC28FS-8 1-1/8" Silk Dome Shielded Tweeter 8 Ohm   The shielded version of the famous... more
Close menu
Product information "Dayton Audio DC28FS-8"

DC28FS-8 1-1/8" Silk Dome Shielded Tweeter 8 Ohm



The shielded version of the famous Dayton Audio Silk Dome, this tweeter offers the same performance but in a CRT-safe design. Features a 1-1/8" silk dome with a ferrofluid cooled voice coil for superior damping. A damped rear chamber lowers the resonance point and provides a very smooth natural sound with excellent on and off axis response. Recommended for crossover points as low as 1,800 Hz, making it ideal for most 2-way speaker designs.



Product Highlights

• Offers smooth and detailed high frequency performance
• Magnetically shielded
• Ferrofluid cooled voice



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 2000-20000 Hz
  • resonance frequency fs = 813 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,6 cm2
  • total Q factor Qts = 0,88 (Qms=1,97, Qes=1,6)
  • voice coil diameter = 29 mm
  • mounting diameter d = 78,0 mm
  • overall diameter d = 110,0 mm
  • mounting depth (not countersunk) t = 32,0 mm
