Dayton Audio DC28F-8

Dayton Audio
Preview: Dayton Audio DC28F-8 Preview: Dayton Audio DC28F-8 frequency curve Preview: Dayton Audio DC28F-8 impedance curve Preview: Dayton Audio DC28F-8 dimensions

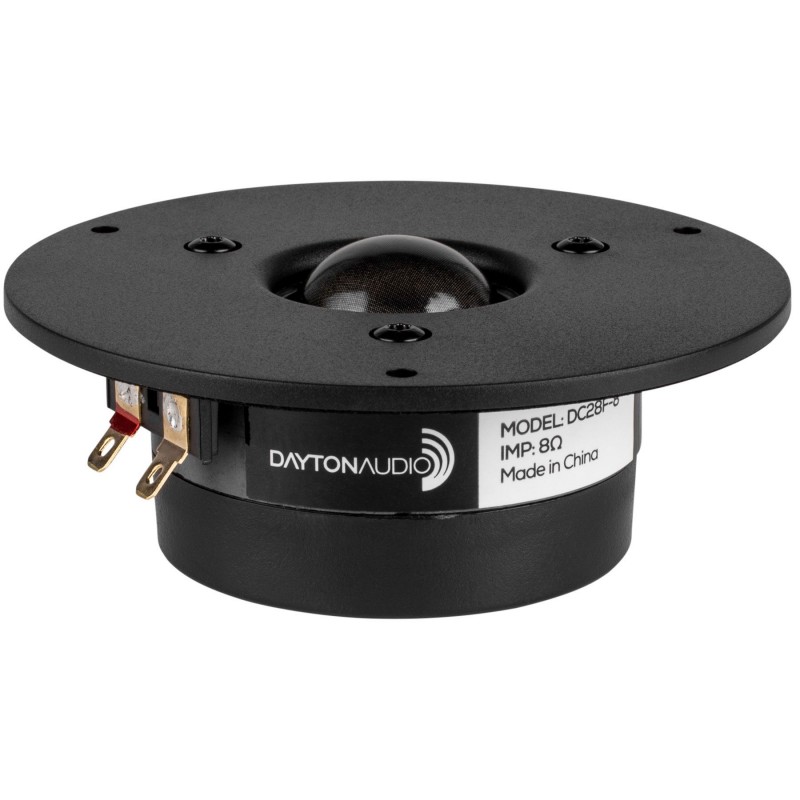

Dayton Audio DC28F-8

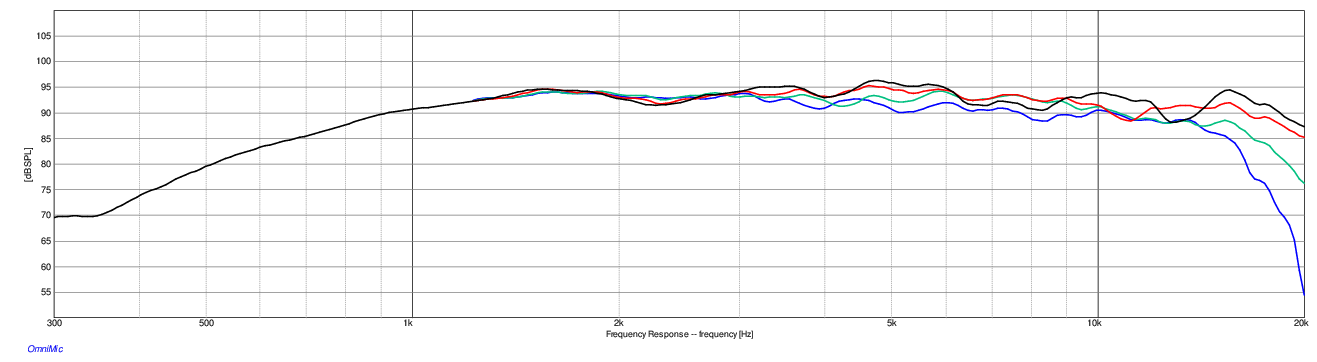

Dayton Audio DC28F-8 frequency curve

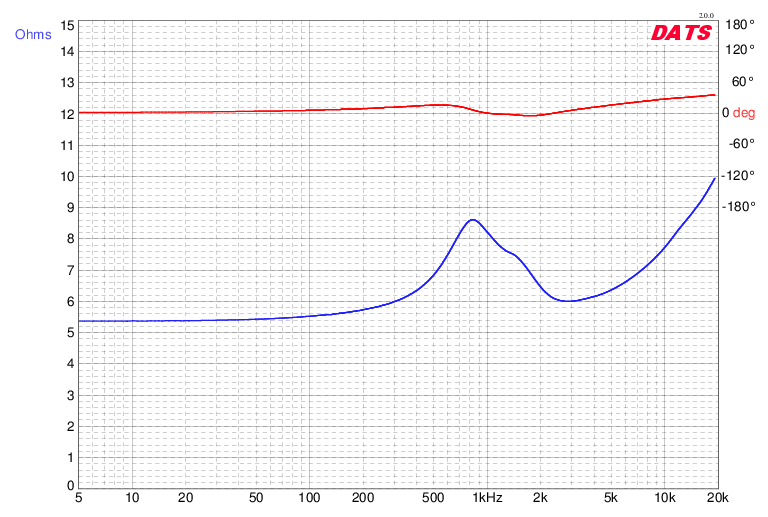

Dayton Audio DC28F-8 impedance curve

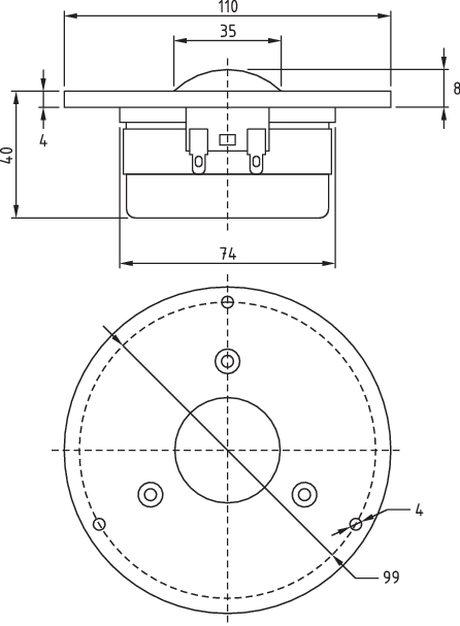

Dayton Audio DC28F-8 dimensions

€33.78 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • Order number: da-dc28f-8
Description Evaluations 0
Description
DC28F-8 1-1/8" Silk Dome Tweeter 8 Ohm   The Dayton Audio DC28F-8 1-1/8" silk dome... more
Close menu
Product information "Dayton Audio DC28F-8"

DC28F-8 1-1/8" Silk Dome Tweeter 8 Ohm



The Dayton Audio DC28F-8 1-1/8" silk dome tweeter's nearly unbeatable cost-to-performance ratio makes it a favorite, best-selling product.



Product Highlights

• Smooth, extended response
• Treated silk dome
• Damped rear chamber lowers resonance
• Ferrofluid cooled voice coil
• Sounds like tweeters costing far more!
• Great replacement for the Dayton DC28FS-8 1-1/8" Silk Dome Shielded Tweeter



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 2200-20000 Hz
  • resonance frequency fs = 812,9 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,0 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,6 cm2
  • total Q factor Qts = 0,88 (Qms=1,97, Qes=1,6)
  • voice coil diameter = 29 mm
  • mounting diameter d = 78,0 mm
  • overall diameter d = 110,0 mm
  • mounting depth (not countersunk) t = 36,3 mm
