Dayton Audio ND28F-6

Dayton Audio
Preview: Dayton Audio ND28F-6 Preview: Dayton Audio ND28F-6 frequency chart Preview: Dayton Audio ND28F-6 impedance chart Preview: Dayton Audio ND28F-6 dimensions

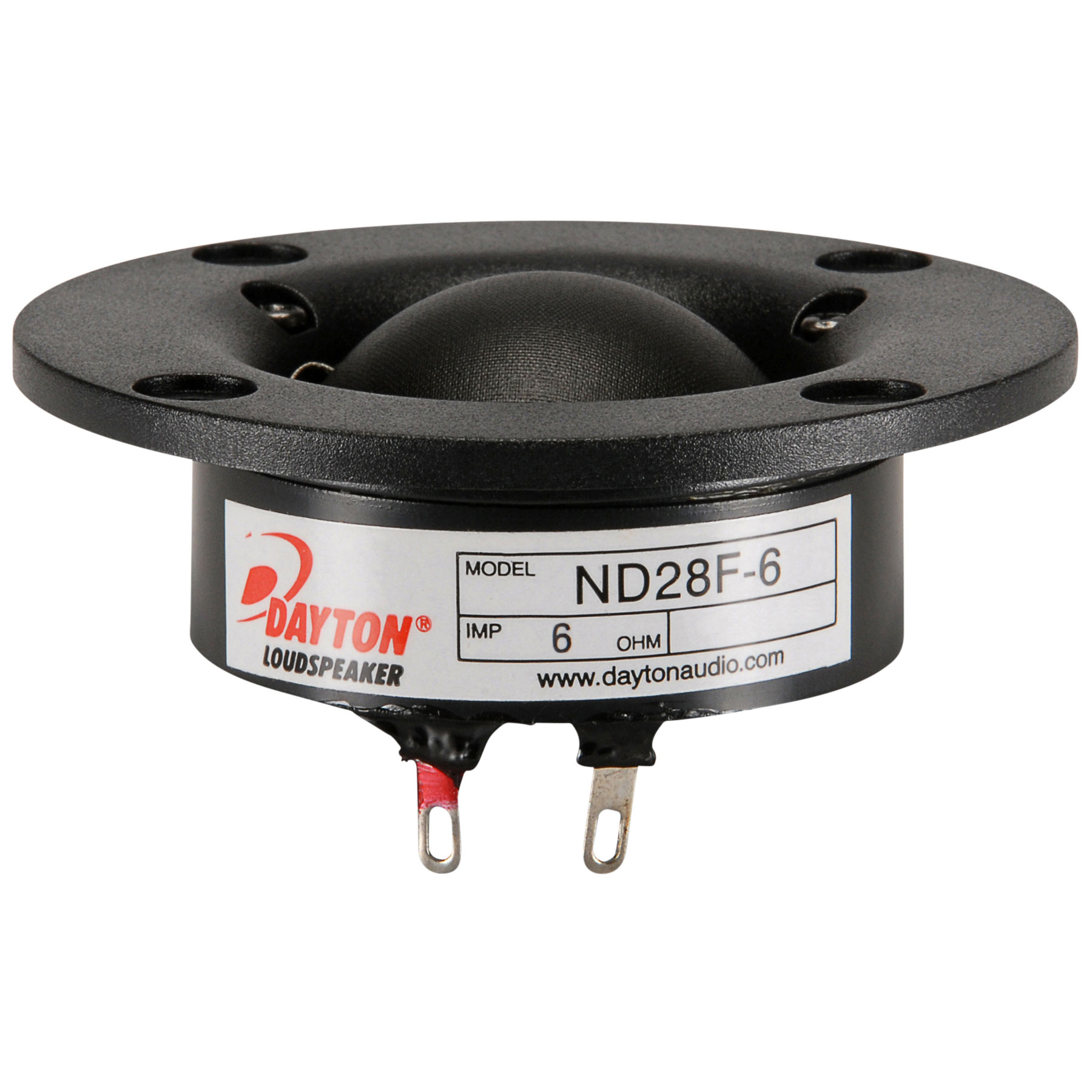

Dayton Audio ND28F-6

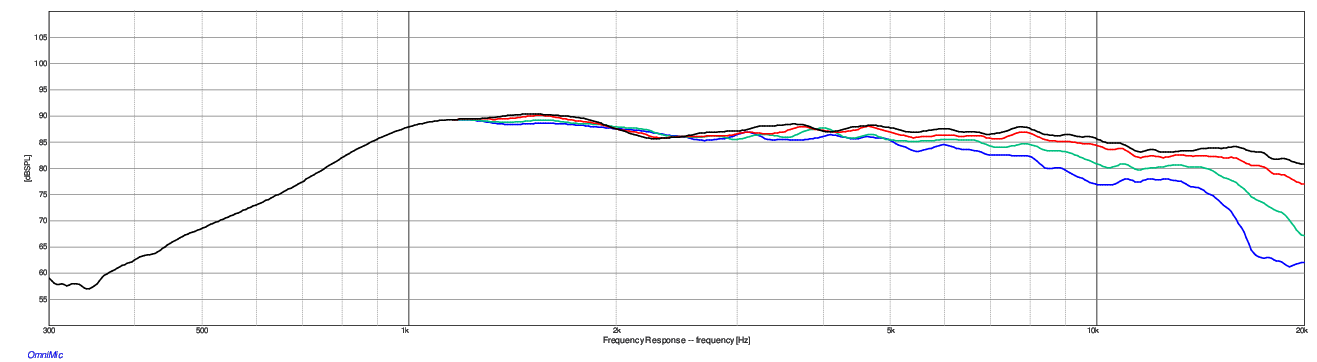

Dayton Audio ND28F-6 frequency chart

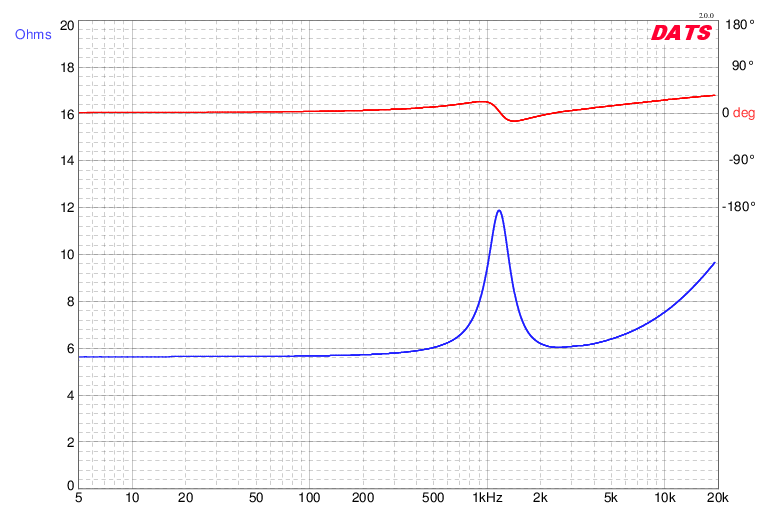

Dayton Audio ND28F-6 impedance chart

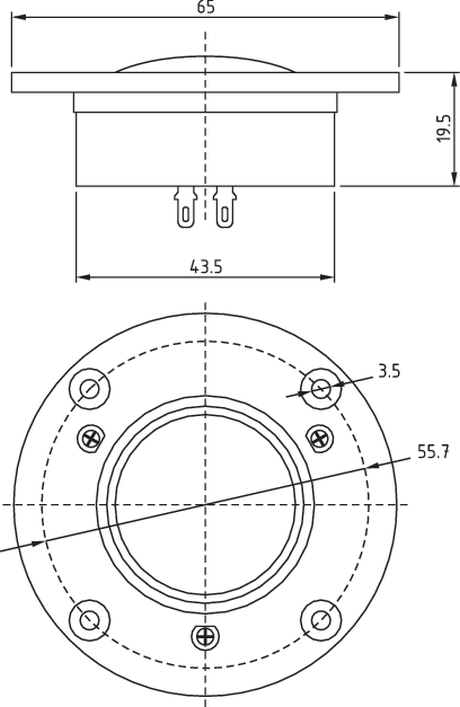

Dayton Audio ND28F-6 dimensions

€17.45 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 1381923
Description Evaluations 0
Description
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance... more
Close menu
Product information "Dayton Audio ND28F-6"
This compact 1-1/8" soft dome tweeter offers the best of both worlds. A low free air resonance together with a compact faceplate.



Product Highlights

• Front-mount design
• Center-to-center spacing as low as 2-1/2"
• Great top-end air and sparkle
• Self shielding neodymium motors



ND28F-6 Specifications

  • power handling (continuous/programme) = 30 W
  • frequency range = 2200-20000 Hz
  • resonance frequency fs = 1097 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 91,0 dB (2,83V; 1m)
  • DC resistance Re = 5,4 Ohm
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 4,9 cm2
  • total Q factor Qts = 1,25 (Qms=2,16, Qes=2,94)
  • voice coil diameter = 25 mm
  • mounting diameter d = 43,5 mm
  • overall diameter d = 65,0 mm
  • mounting depth (not countersunk) t = 19,5 mm
