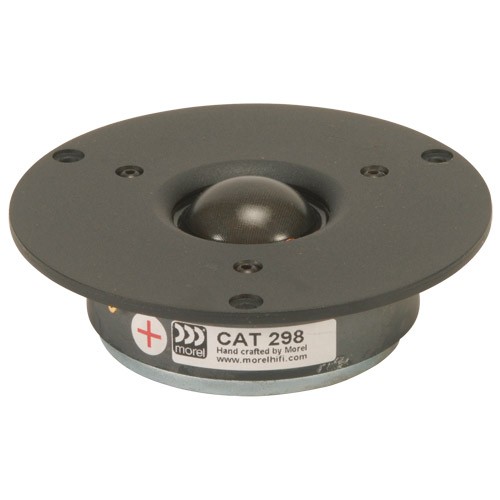

Morel CAT 298

Morel
Preview: Morel CAT 298 Preview: Morel CAT 298 Preview: Morel CAT 298 Preview: Morel CAT 298
Morel CAT 298
Morel CAT 298
Morel CAT 298
Morel CAT 298

€73.28 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 753080
Description Evaluations 0
Description
The CAT-298 is an updated and more cost effective version of the famous MDT-29 and MDT-33, the... more
Close menu
Product information "Morel CAT 298"

The CAT-298 is an updated and more cost effective version of the famous MDT-29 and MDT-33, the CAT298 also features a treated 28mm soft dome, ferrofluid cooling, and aluminum voice coil.



Specifications

  • power handling (continuous/programme) = 80 W
  • frequency range = 1800-20000 Hz
  • resonance frequency fs = 900 Hz

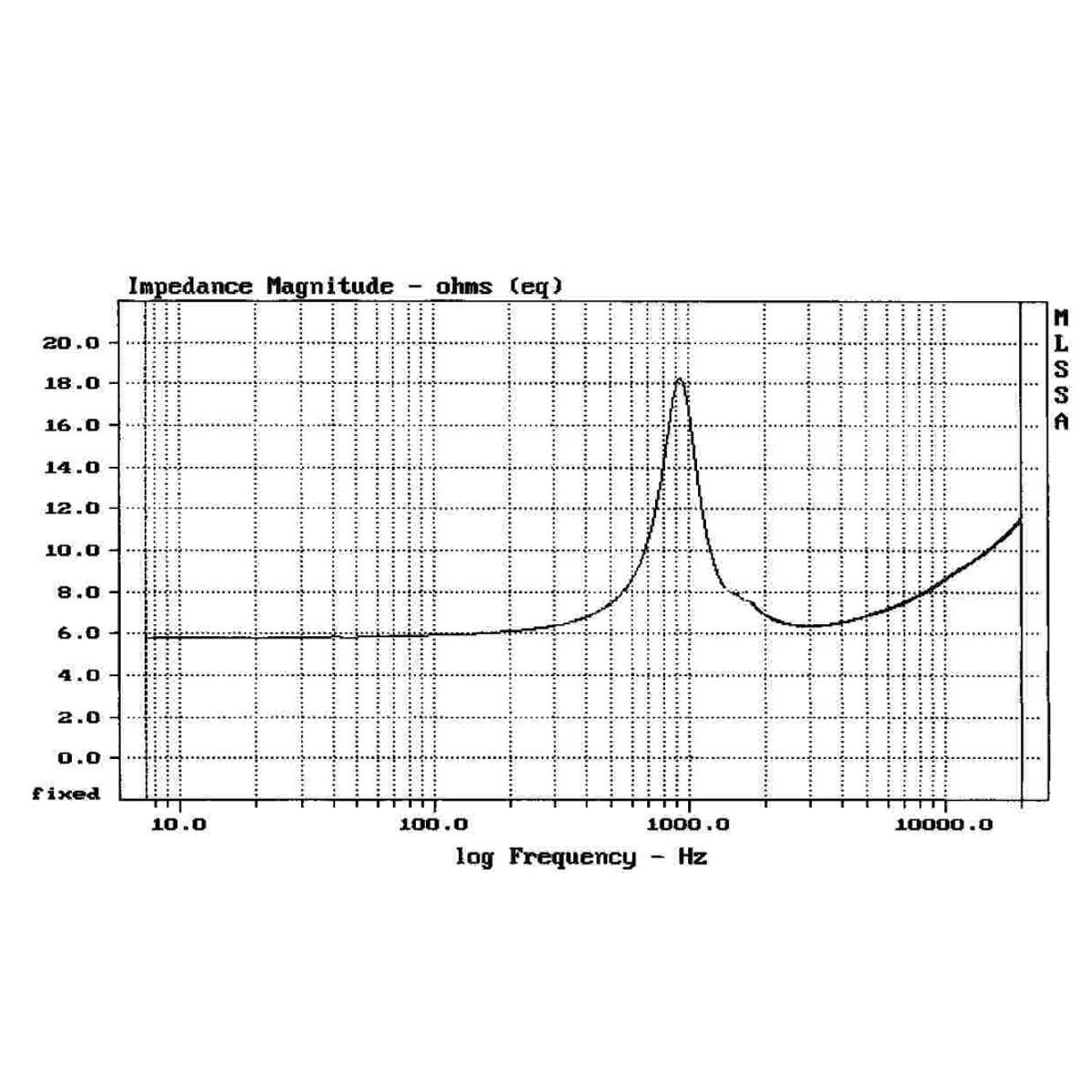

  • impedance R = 8 Ohm

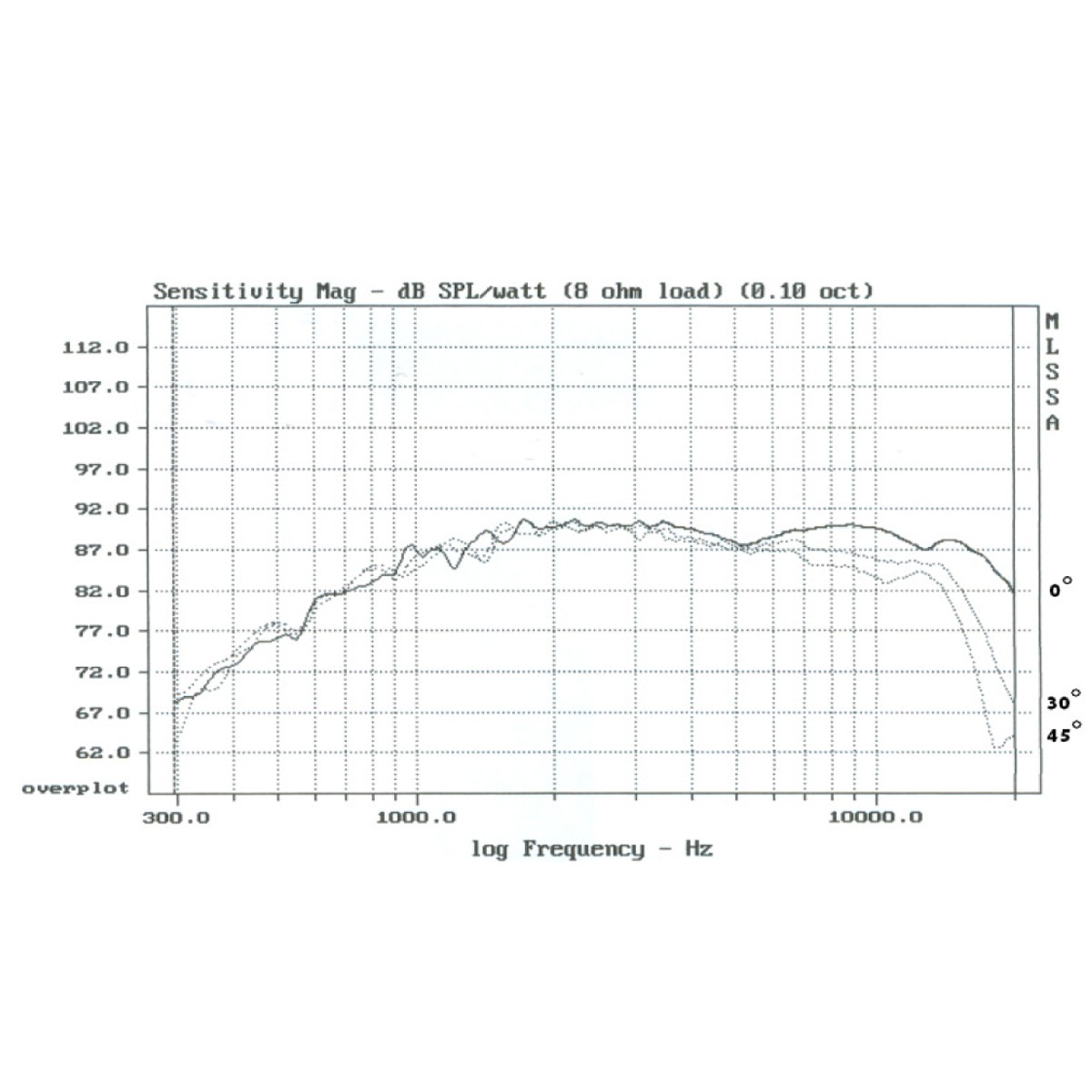

  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 6 cm2
  • effective mechanical mass incl. air load mms = 0,5 g
  • voice coil diameter = 28 mm

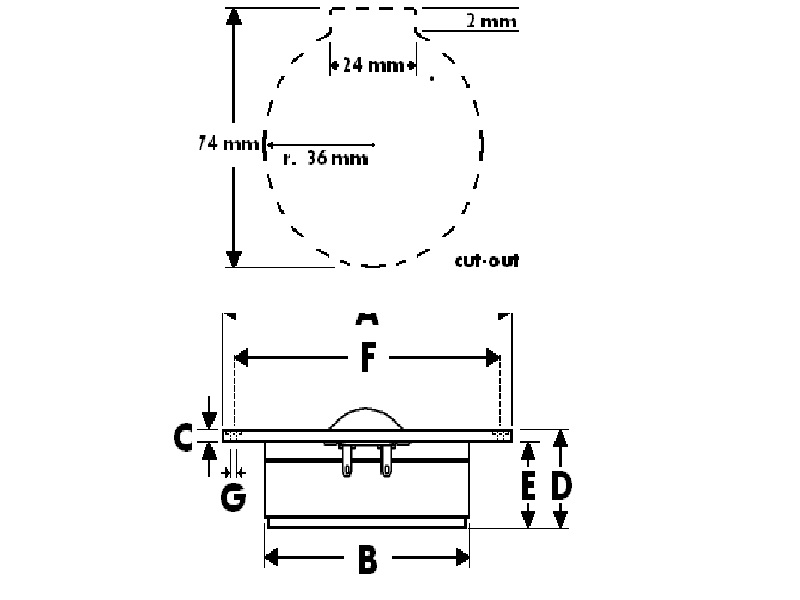

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 27 mm
