Preview: Eton 28 SD1 tweeter

Preview: Eton 28 SD1 tweeter side

Preview: Eton 28 SD1 tweeter frequency response

Preview: Eton 28 SD1 tweeter impedance curve

Preview: Eton 28 SD1 tweeter dimensions

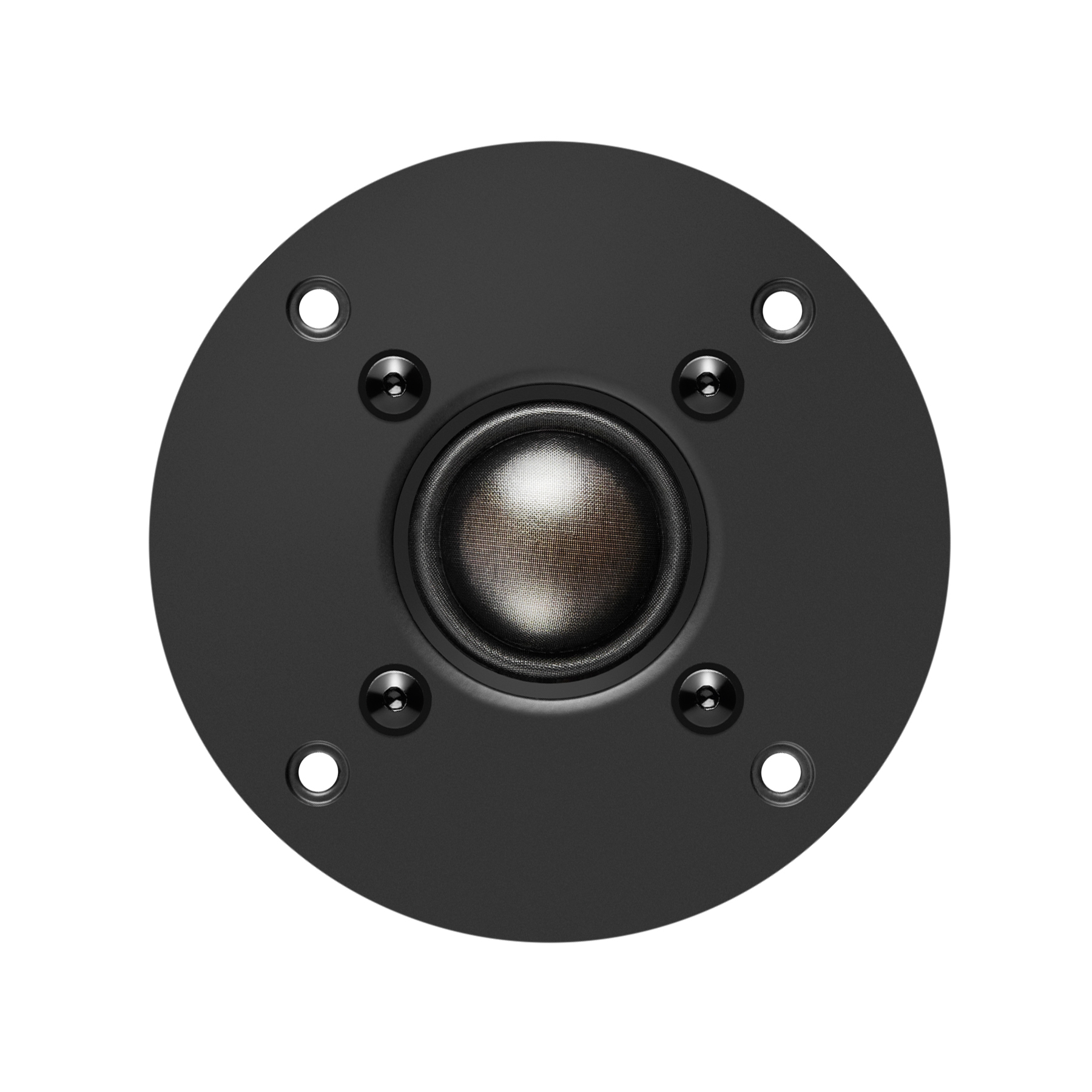

Eton 28 SD1 tweeter

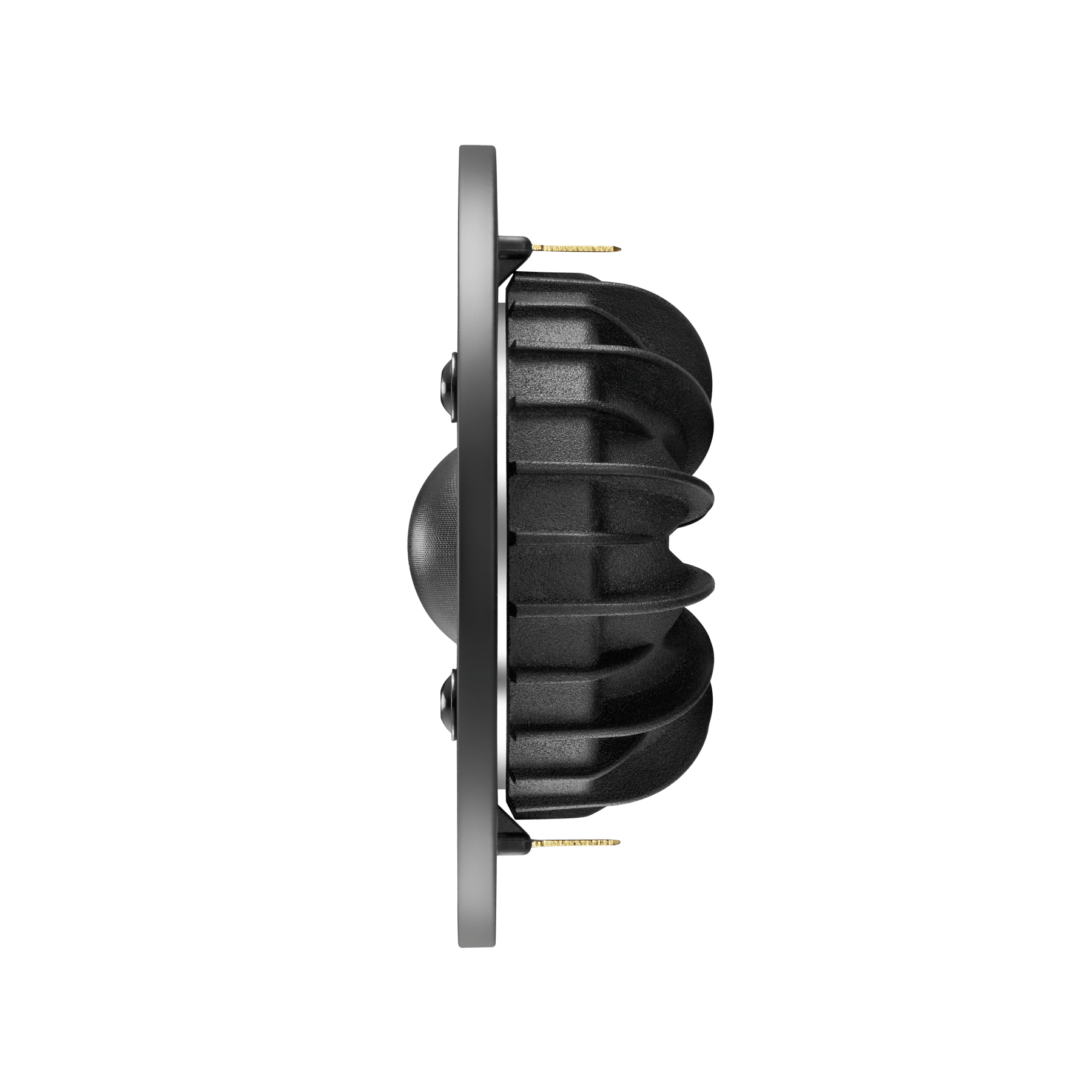

Eton 28 SD1 tweeter side

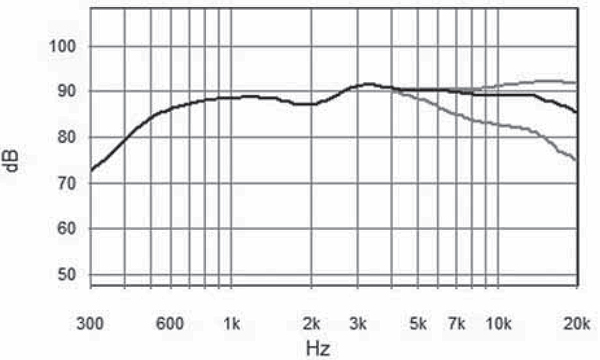

Eton 28 SD1 tweeter frequency response

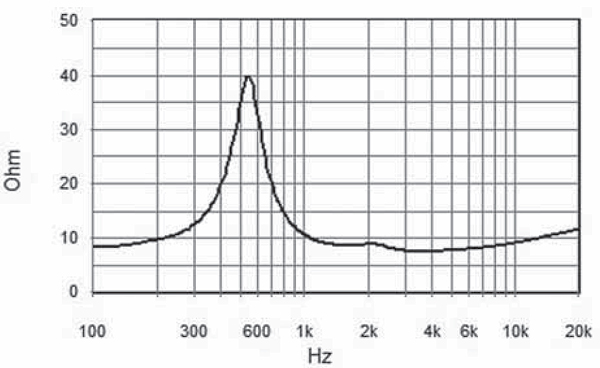

Eton 28 SD1 tweeter impedance curve

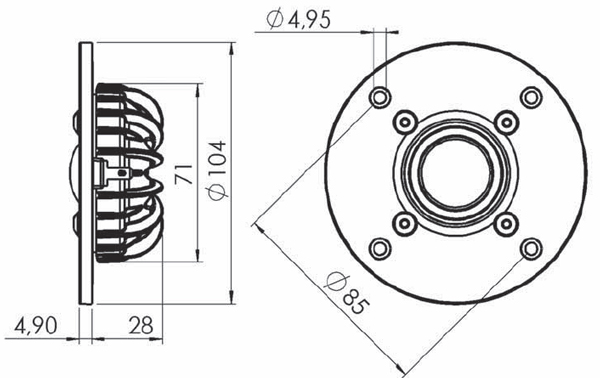

Eton 28 SD1 tweeter dimensions

€139.95 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: 1381388

28mm Silk dome tweeter, hand coated Silk diaphragm, rich and warm sound impression, authentical... more

Product information "Eton 28 SD1 tweeter"

28mm Silk dome tweeter, hand coated Silk diaphragm, rich and warm sound impression, authentical staging, uncolorled sound reproduction.

Specifications

frequency range = 2000-20000 Hz
resonance frequency fs = 510 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 6,7 Ohm
force factor BL = 4,8 N/A
voice coil inductance L = 0,02 mH
effective piston radiating area Sd = 8,6 cm²
effective mechanical mass incl. air load mms = 0,32g
voice coil diameter = 28 mm
mounting diameter d = 71 mm
overall diameter d = 104 mm
mounting depth (not countersunk) t = 28 mm

Related links to "Eton 28 SD1 tweeter"

Available downloads:

Download Eton 28 SD1 tweeter Datasheet
