Morel ET 338-104 Black

€449.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1381513
The Morel ET338/104 Elite tweeters are acoustically matched from the manufacturer when... more
Product information "Morel ET 338-104 Black"

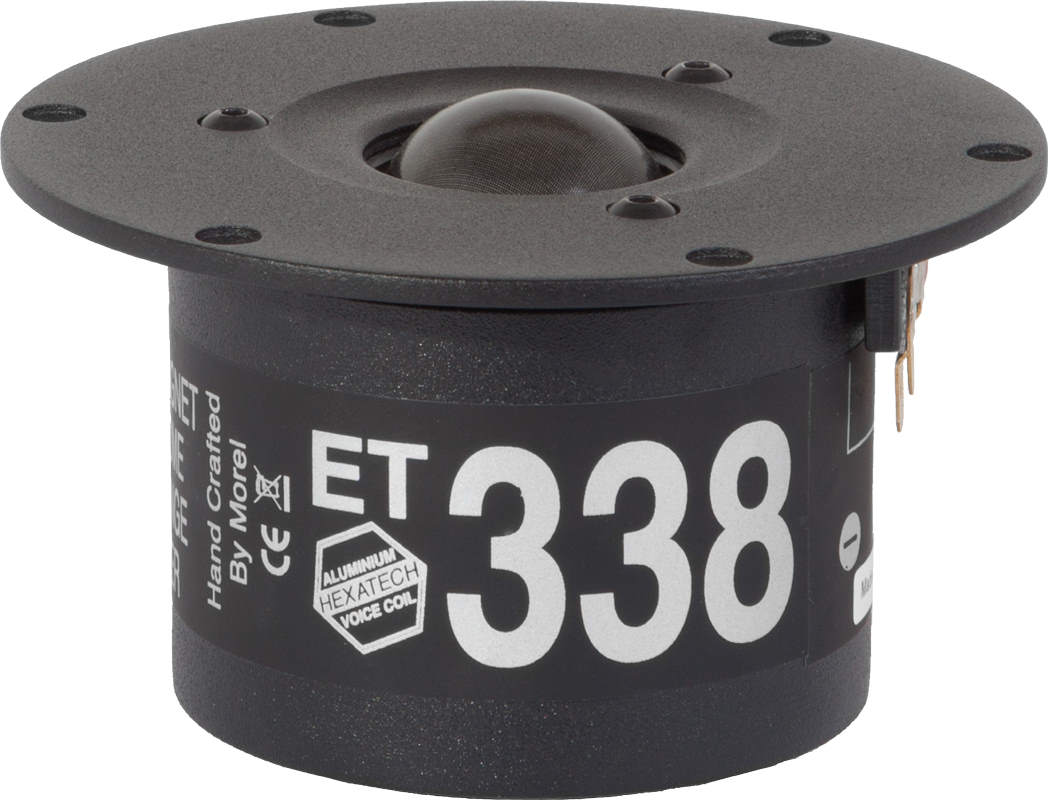

The Morel ET338/104 Elite tweeters are acoustically matched from the manufacturer when bought as a pair and based on the unique qualities of the famous Morel MDT 33. The new IDR™ (Improved Dispersion Recess) technology enables wider high frequency off-axis dispersion, resulting in a smoother overall performance. An aluminum faceplate with a newly refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Also available in a 110 mm faceplate diameter.



  • Acoustically matched pair
  • IDR™ (Improved Dispersion Recess)
  • Large Hexatech™ aluminum voice coil
  • Triple magnet system
  • Replaceable Accuflex™ diaphragm

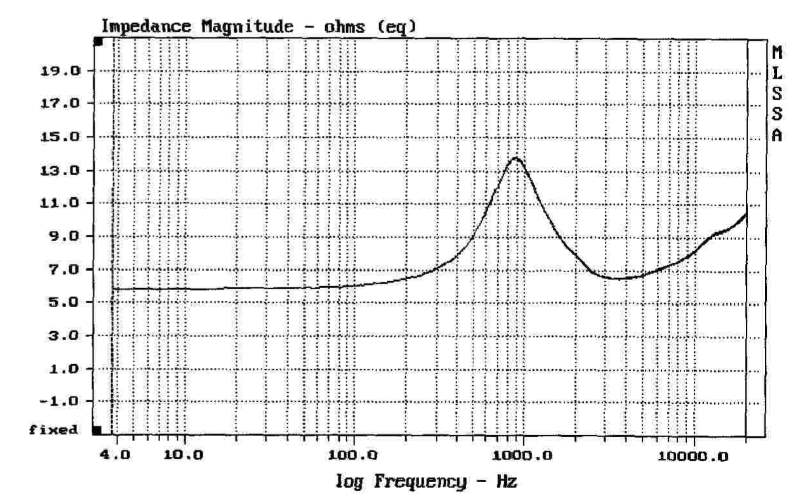

Specifications

  • power handling (continuous/programme) = 200 W
  • frequency range = 1800-20000 Hz
  • resonance frequency fs = 700 Hz
  • impedance R = 8 Ohm

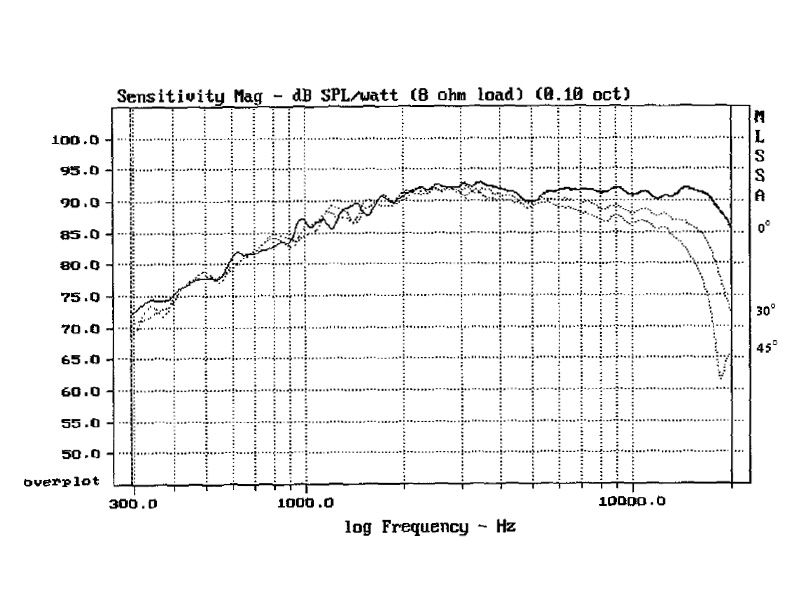

  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 6,3 N/A
  • voice coil inductance L = 0,09 mH
  • effective piston radiating area Sd = 6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • voice coil diameter = 28 mm

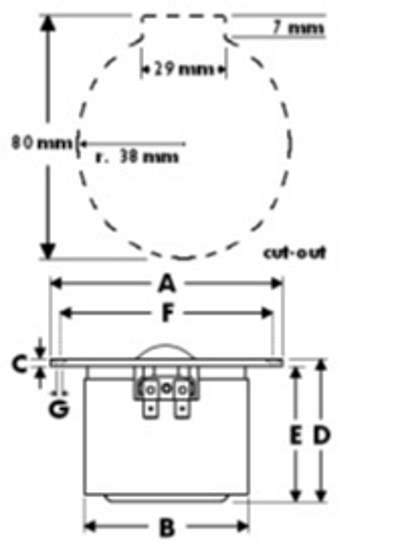

  • mounting diameter d = 76 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 63 mm



Price per matched pair
