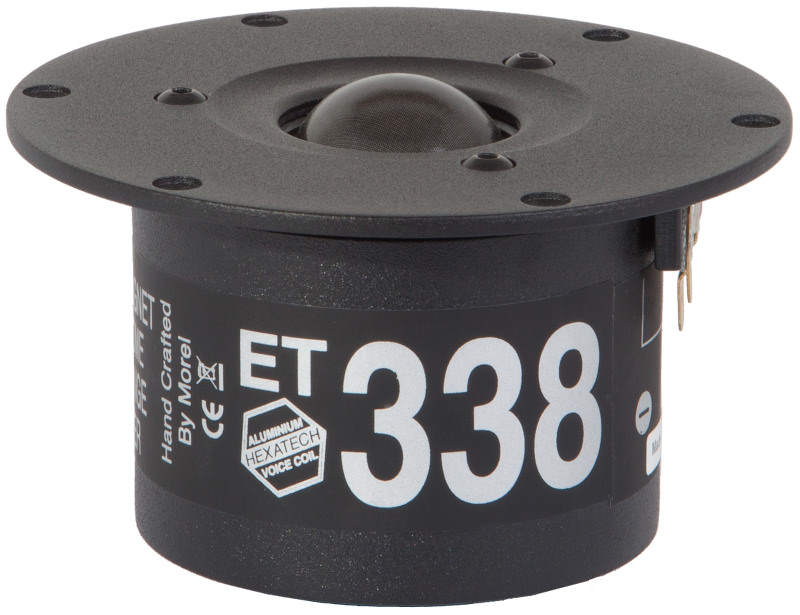

Morel ET 338-110 Black

The Morel ET338/110 Elite tweeters are acoustically matched from the manufacturer when bought as a pair and based on the unique qualities of the famous Morel MDT 33. The new IDR™ (Improved Dispersion Recess) technology enables wider high frequency off-axis dispersion, resulting in a smoother overall performance. An aluminum faceplate with a newly refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Also available in a 104 mm faceplate diameter.

• Acoustically matched pair
• IDR™ (Improved Dispersion Recess)
• Large Hexatech™ aluminum voice coil
• Triple magnet system
• Replaceable Accuflex™ diaphragm

Specifications

• power handling (continuous/programme) = 200 W
• frequency range = 1800-20000 Hz
• resonance frequency fs = 700 Hz
• impedance R = 8 Ohm

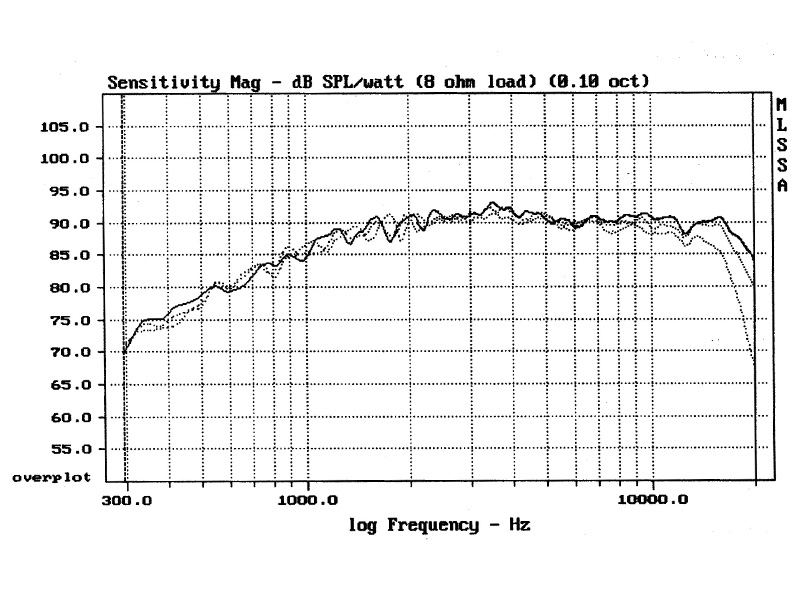

• sound pressure level SPL = 92,5 dB (2,83V; 1m)

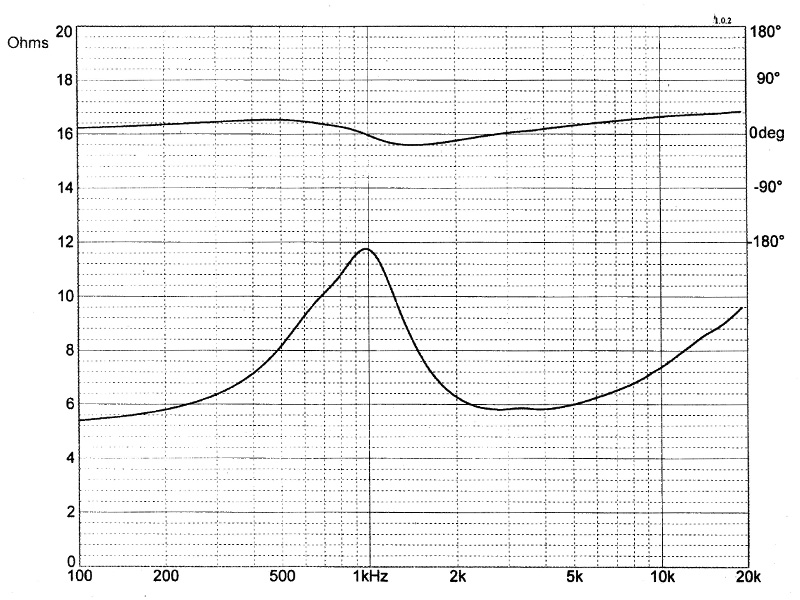

• DC resistance Re = 5,2 Ohm
• force factor BL = 6,3 N/A
• voice coil inductance L = 0,09 mH
• effective piston radiating area Sd = 6 cm²
• effective mechanical mass incl. air load mms = 0,44 g
• voice coil diameter = 28 mm

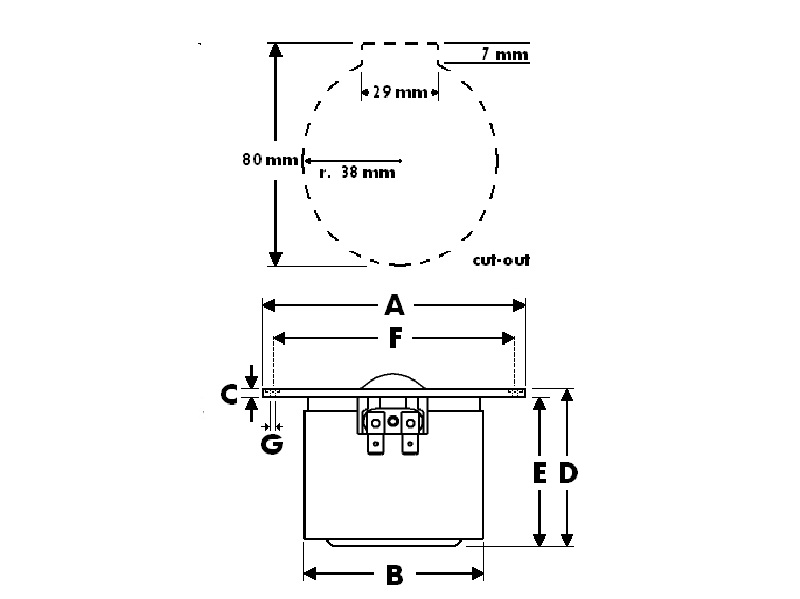

• mounting diameter d = 76 mm
• overall diameter d = 110 mm
• mounting depth (not countersunk) t = 63 mm

Price per mathed pair
