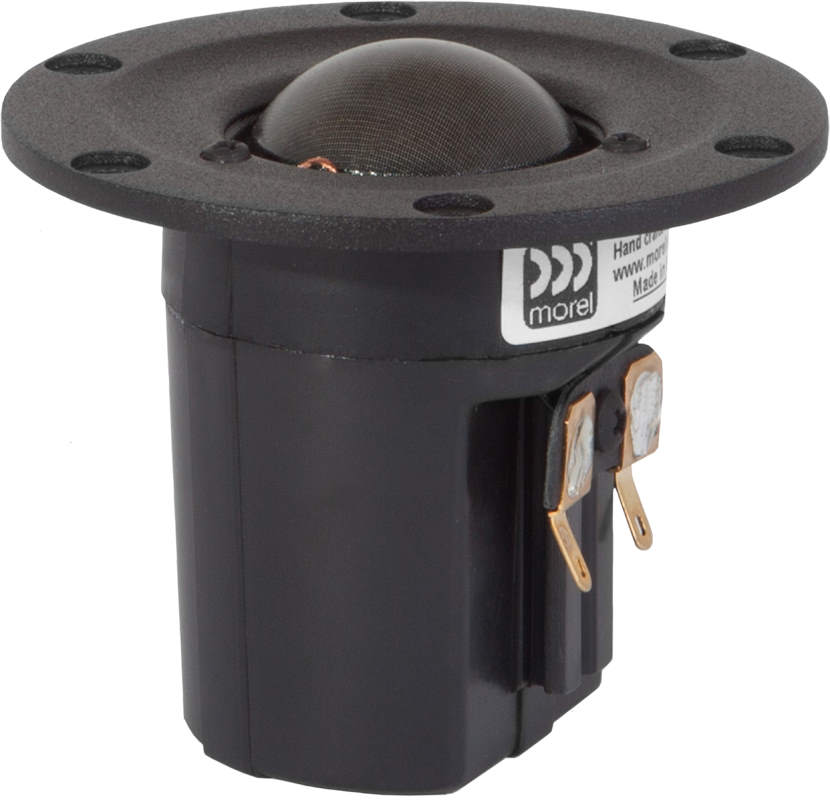

The Morel ET448 Elite tweeter is based on the famous Morel MDT 44 compact soft dome tweeter and its unique qualities. The new IDR™ (Improved Dispersion Recess) technology and an aluminum faceplate with a new refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Small faceplate allows very close placement to woofer or midrange for improved sound integration. Fully shielded for A/V use.
IDR™ (Improved Dispersion Recess)
Large Hexatech™ aluminum voice coil
Double neodymium magnet system
Replaceable Accuflex™ diaphragm
High power handling
Specifications
power handling (continuous/programme) = 120 W
frequency range = 2200-22000 Hz
resonance frequency fs = 750 Hz

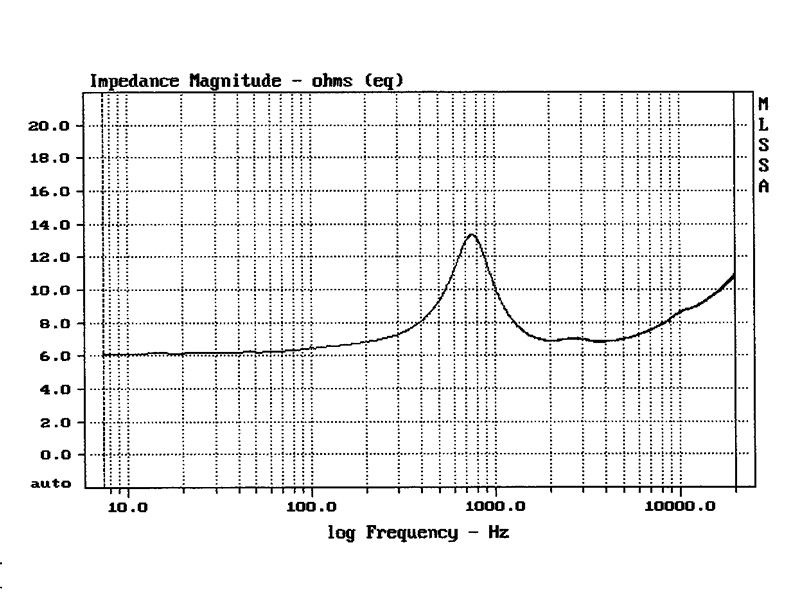

impedance R = 8 Ohm

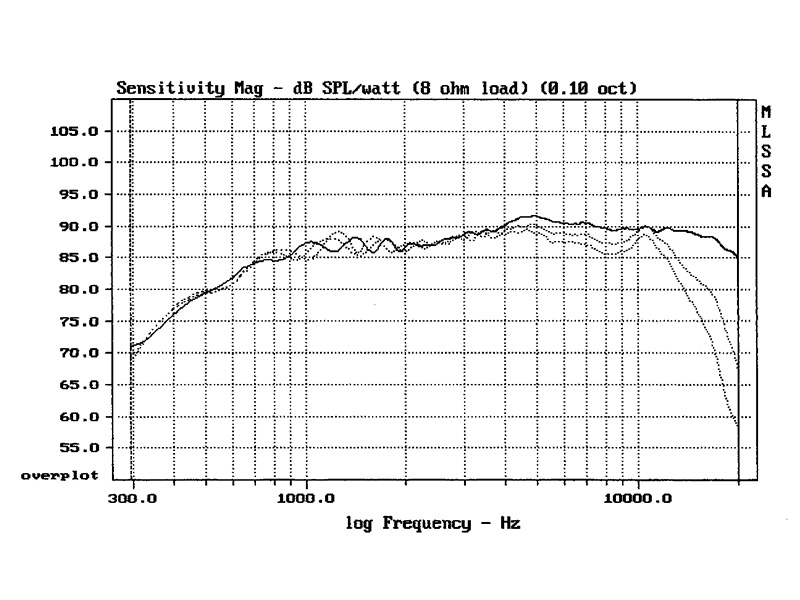

sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 2,3 N/A
voice coil inductance L = 0,05 mH
effective piston radiating area Sd = 6 cm2
effective mechanical mass incl. air load mms = 0,44 g
