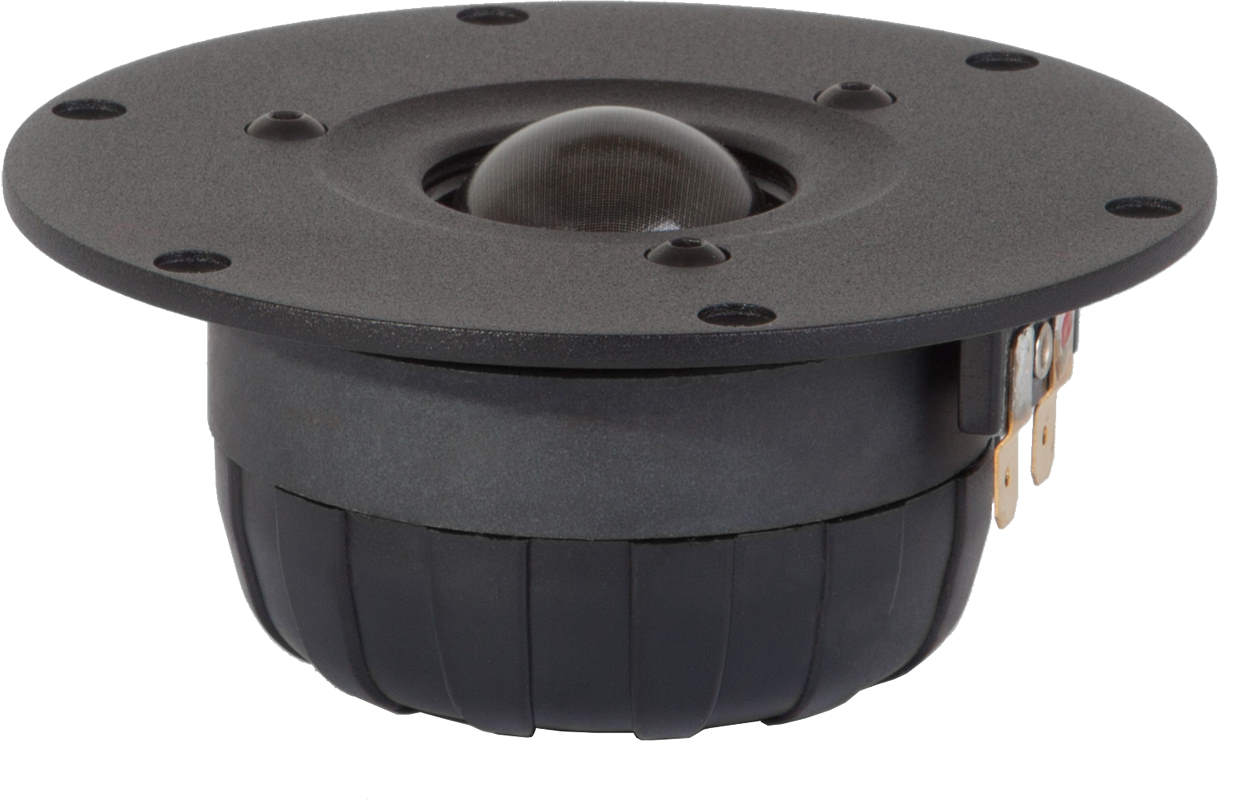

Morel CAT 328/104

• Upgraded version of MDT-32s, but smaller size.
• Aluminium IDR faceplate Ø 104mm
• 28mm Acuflex® handcoated silk dome
• Ferrofluid cooled
• 28mm aluminium Hexatech® voicecoil
• Vented magnet system
• Rear chamber
• Rigid 6,3mm goldplated tags

Specifications

• power handling (continuous/programme) = 200 W
• frequency range = 1000-20000 Hz
• resonance frequency fs = 650 Hz

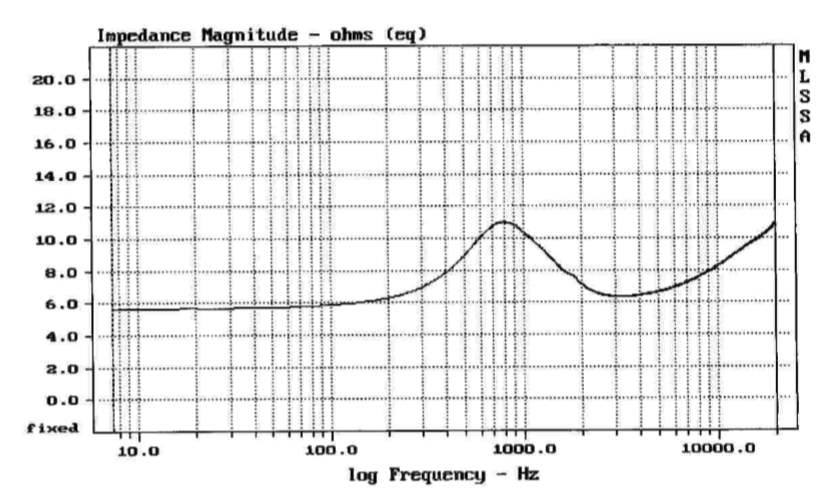

• impedance R = 8 Ohm
• sound pressure level SPL = 90 dB (2,83V; 1m)
• DC resistance Re = 5,2 Ohm
• force factor BL = 3,5 N/A
• voice coil inductance L = 0,09 mH
• effective piston radiating area Sd = 6 cm²
• effective mechanical mass incl. air load mms = 0,44 g
• voice coil diameter = 28 mm

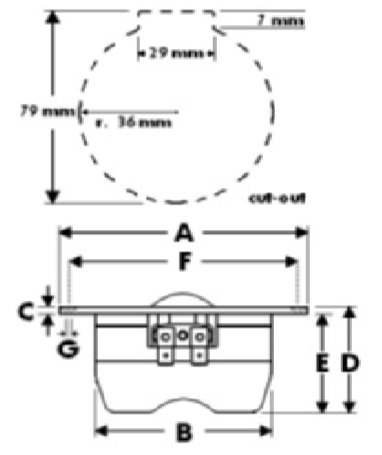

• mounting diameter d = 72 mm
• overall diameter d = 104 mm
• mounting depth (not countersunk) t = 43 mm
