SB Acoustics SATORI TW29B

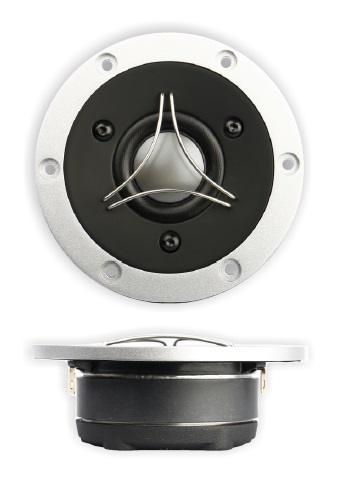

SB Acoustics SATORI TW29B Dome Tweeter

• Beryllium dome for non-resonant high frequency extension
• Two part aluminium faceplate with integrated mechanical decoupling
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• Non-reflective cast aluminium chamber with optimized damping for improved dynamics
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range

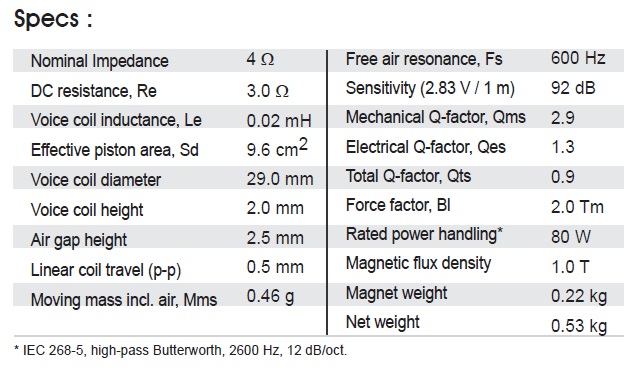

Specifications

• power handling (continuous/programme) = 80 W

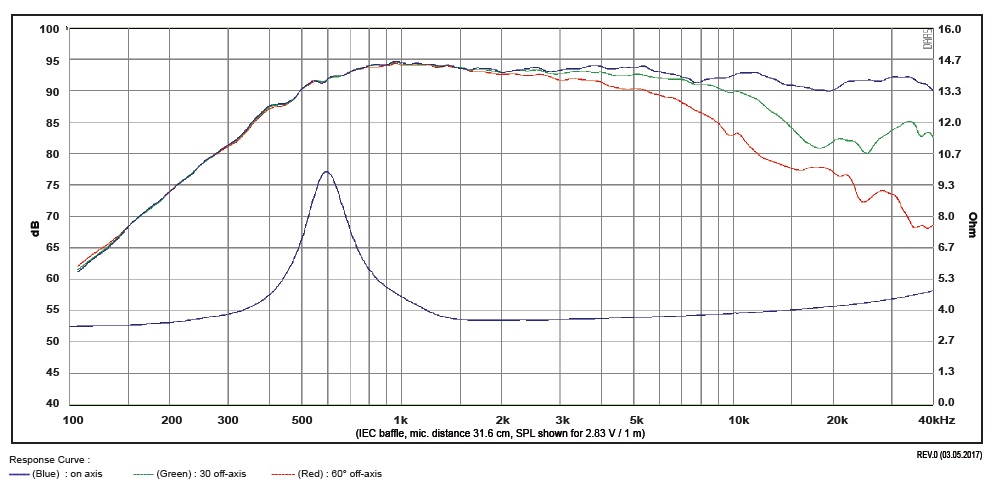

• frequency range = 500-35000 Hz
• resonance frequency fs = 600 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 92 dB (2,83V; 1m)
• DC resistance Re = 3,0 Ohm
• force factor BL = 2,0N/A
• voice coil inductance L = 0,02 mH
• effective piston radiating area Sd = 9,6 cm²
• effective mechanical mass incl. air load mms = 0,46 g
• total Q factor Qts = 0,9 (Qms=2,90, Qes=1,30)
• voice coil diameter = 29 mm

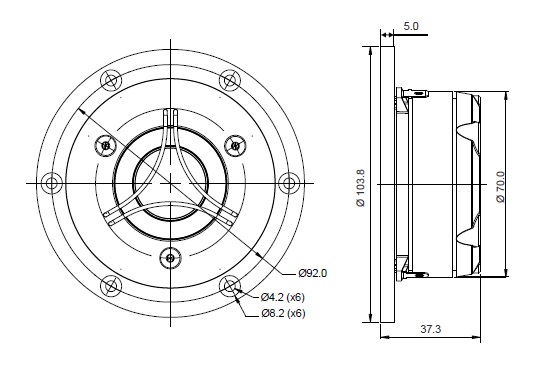

• mounting diameter d = 75 mm
• overall diameter d = 103,8 mm
• mounting depth (not countersunk) t = 32.5 mm
