SB Acoustics SB29SDAC-C000-4

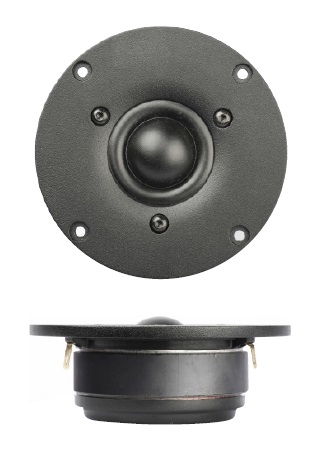

SB-Acoustics SB29SDAC-C000-4 Tweeter

• Large surround dome for increased acoustic output
• Dual balanced compression chamber for improved dynamics
• Copper cap for reduced voice coil inductance and minimum phase shift
• Saturation controlled motor system for low distortion
• Non-reflective rear chamber with optimized damping for improved dynamics
• Flow optimized vented pole piece for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency
• Cast aluminium faceplate

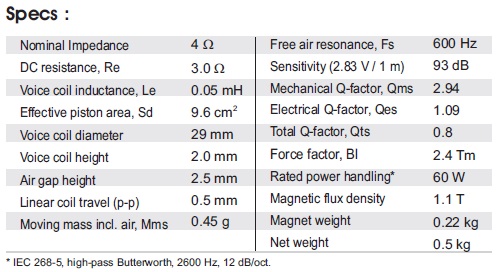

Specifications

• power handling (continuous/programme) = 100 W

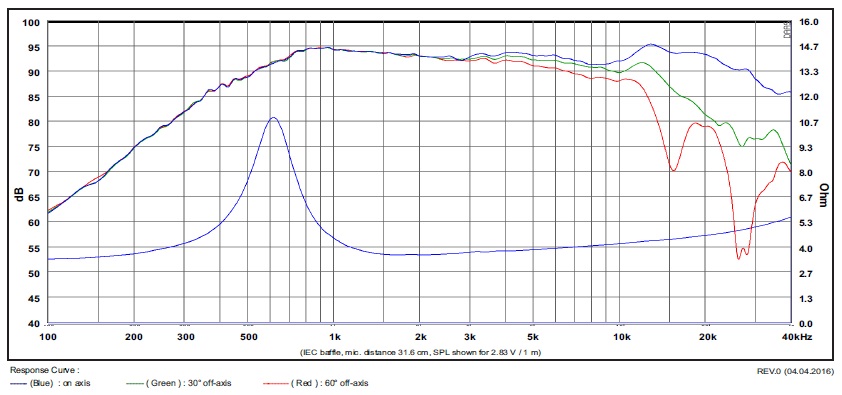

• frequency range = 400-40000 Hz
• resonance frequency fs = 600 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 93 dB (2,83V; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 2,4 N/A
• voice coil inductance L = 0,05 mH
• effective piston radiating area Sd = 9,6 cm²
• effective mechanical mass incl. air load mms = 0,45 g
• total Q factor Qts = 0,8 (Qms=2,94, Qes=1.09)
• voice coil diameter = 29 mm

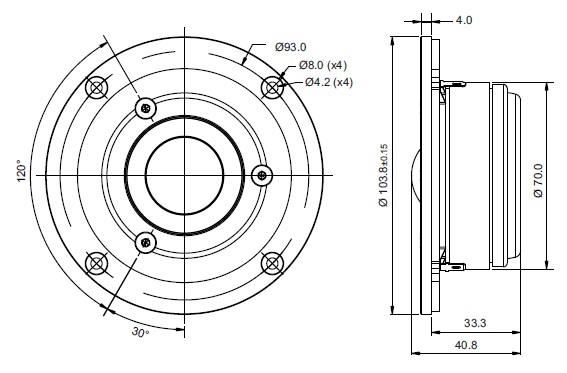

• mounting diameter d = 70 mm
• overall diameter d = 104 mm
• mounting depth (not countersunk) t = 33,3 mm
