SB Acoustics SB29RDAC-C000-4

SB Acoustics
Preview: SB Acoustics SB29RDAC-C000-4 Preview: SB Acoustics SB29RDAC-C000-4 charts Preview: SB Acoustics SB29RDAC-C000-4 parameter Preview: SB Acoustics SB29RDAC-C000-4 dimensions

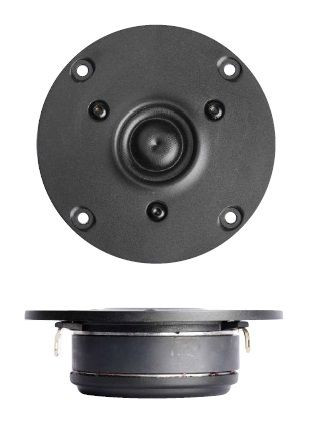

SB Acoustics SB29RDAC-C000-4

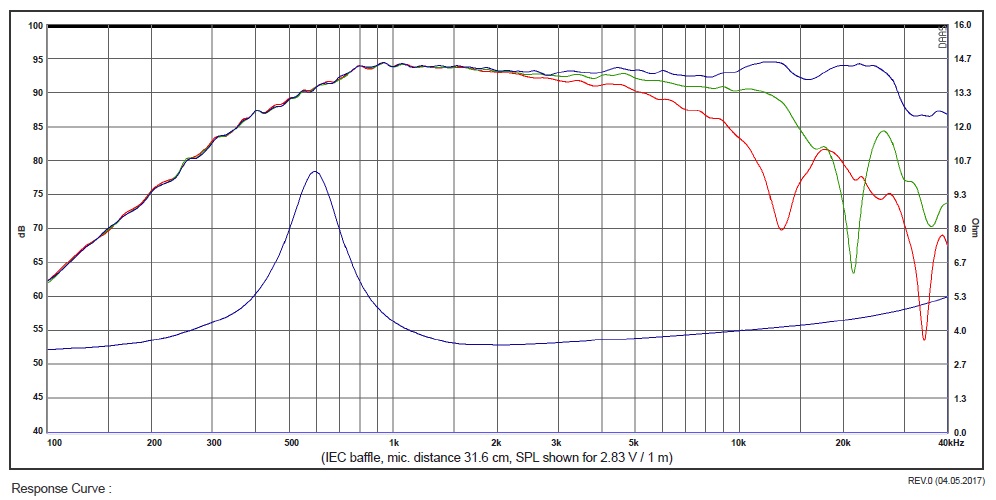

SB Acoustics SB29RDAC-C000-4 charts
SB Acoustics SB29RDAC-C000-4 parameter

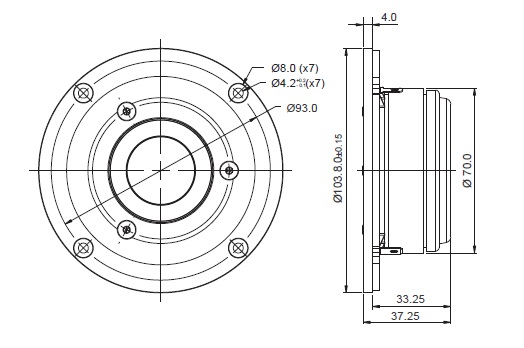

SB Acoustics SB29RDAC-C000-4 dimensions

€54.90 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1382469
Description Evaluations 0
Description
SB-Acoustics SB29RDAC-C000-4 Tweeter Non-resonant diaphragm design for minimum high... more
Close menu
Product information "SB Acoustics SB29RDAC-C000-4"

SB-Acoustics SB29RDAC-C000-4 Tweeter

  • Non-resonant diaphragm design for minimum high frequency break-up
  • Dual balanced compression chamber for improved dynamics
  • Copper cap for reduced voice coil inductance and minimum phase shift
  • Saturation controlled motor system for low distortion
  • Non-reflective rear chamber with optimized damping for improved dynamics
  • Flow optimized vented pole piece for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency

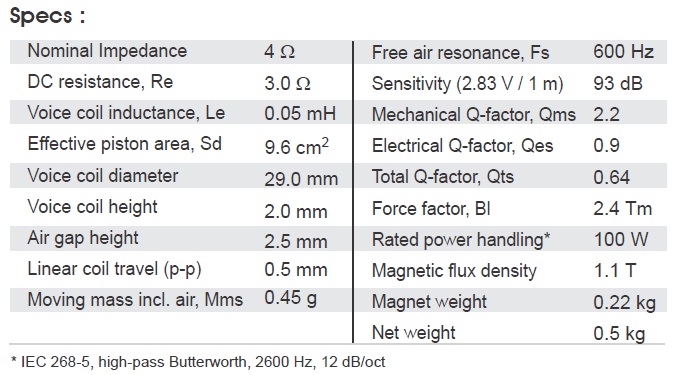

Specifications

  • power handling (continuous/programme) = 100 W
  • frequency range = 400-40000 Hz
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 3 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • total Q factor Qts = 0,64 (Qms=2,2, Qes=0,9)
  • voice coil diameter = 29 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 33,25 mm
