SB Acoustics SATORI TW29BN-B-8

SB Acoustics
Preview: SB Acoustics SATORI TW29BN-B-8 Preview: SB Acoustics SATORI TW29BN-B-8 charts Preview: SB Acoustics SATORI TW29BN-B-8 parameter Preview: SB Acoustics SATORI TW29BN-B-8 dimensions

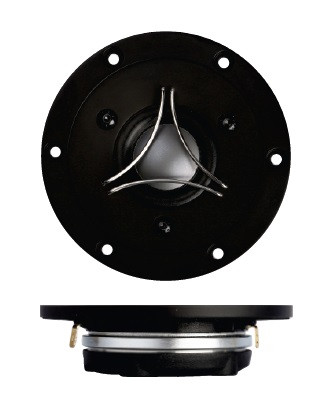

SB Acoustics SATORI TW29BN-B-8

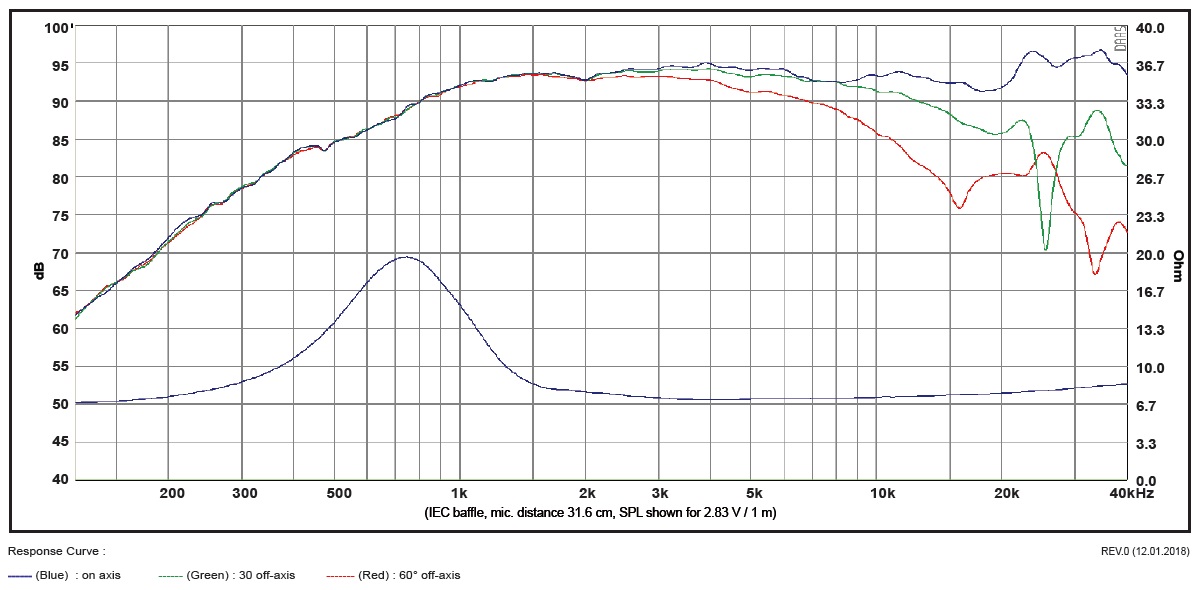

SB Acoustics SATORI TW29BN-B-8 charts

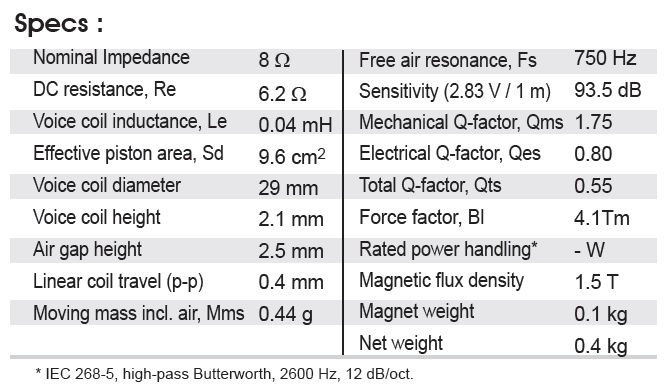

SB Acoustics SATORI TW29BN-B-8 parameter

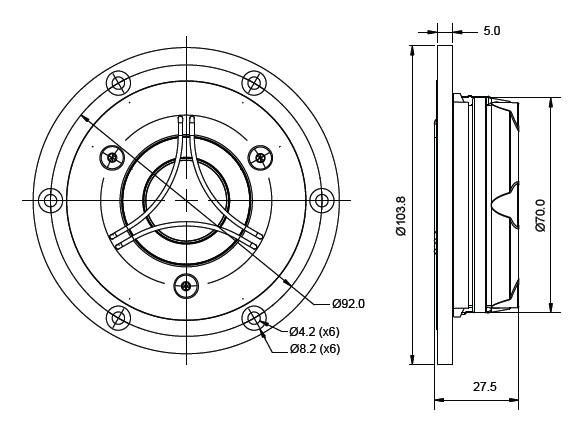

SB Acoustics SATORI TW29BN-B-8 dimensions

€399.00 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382453
Description Evaluations 0
Description
SB Acoustics SATORI TW29BN-B Dome Tweeter Beryllium dome for non-resonant high frequency... more
Close menu
Product information "SB Acoustics SATORI TW29BN-B-8"

SB Acoustics SATORI TW29BN-B Dome Tweeter

  • Beryllium dome for non-resonant high frequency extension
  • Two part aluminium faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Specifications

  • power handling (continuous/programme) = ? W
  • frequency range = 750-35000 Hz
  • resonance frequency fs = 750 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 93,5 dB (2,83V; 1m)
  • DC resistance Re = 6.2 Ohm
  • force factor BL = 4.1N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 9,6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • total Q factor Qts = 0,55 (Qms=1,75, Qes=0,80)
  • voice coil diameter = 29 mm
  • mounting diameter d = 75 mm
  • overall diameter d = 103,8 mm
  • mounting depth (not countersunk) t = 22.5 mm
