Product information "SB Acoustics SATORI TW29BN-8"

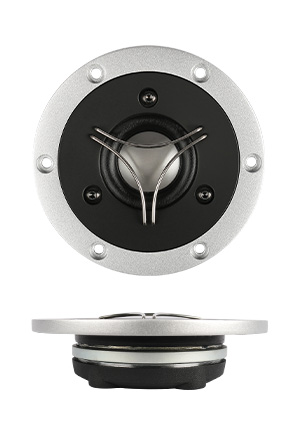

SB Acoustics SATORI TW29BN-8 Dome Tweeter
- Beryllium dome for non-resonant high frequency extension
- Two part aluminium faceplate with integrated mechanical decoupling
- Dual balanced compression chambers for improved dynamics
- Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
- High saturation neodymium motor system with T-shaped pole piece for lower distortion
- Non-reflective cast aluminium chamber with optimized damping for improved dynamics
- Shallow flow optimized magnet structure for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency for extended range
Specifications
- power handling (continuous/programme) = 80 W
- resonance frequency fs = 750 Hz
- impedance R = 8 Ohm

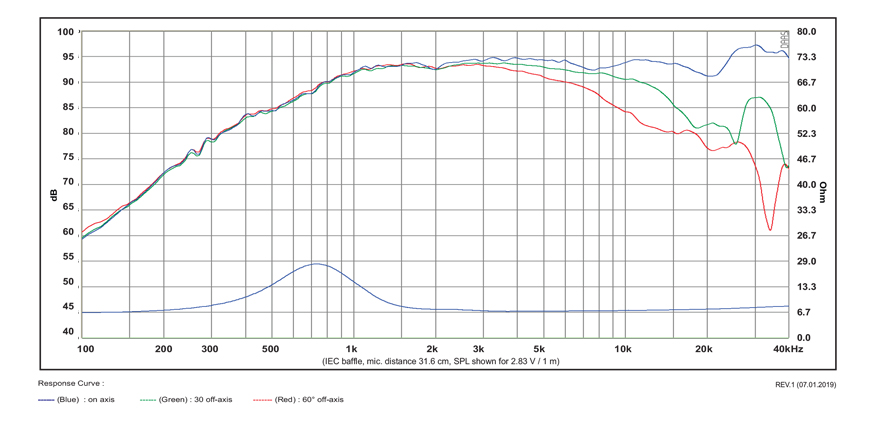

- sound pressure level SPL = 93,5 dB (2,83V; 1m)
- DC resistance Re = 6,2 Ohm
- force factor BL = 4,1 N/A
- voice coil inductance L = 0,04 mH
- effective piston radiating area Sd = 9,6 cm2
- effective mechanical mass incl. air load mms = 0,44 g
- total Q factor Qts = 0,55 (Qms=1,75, Qes=0,8)
- voice coil diameter = 29 mm
- maximum peak linear excursion vibration xlin = +/- 0,2 mm

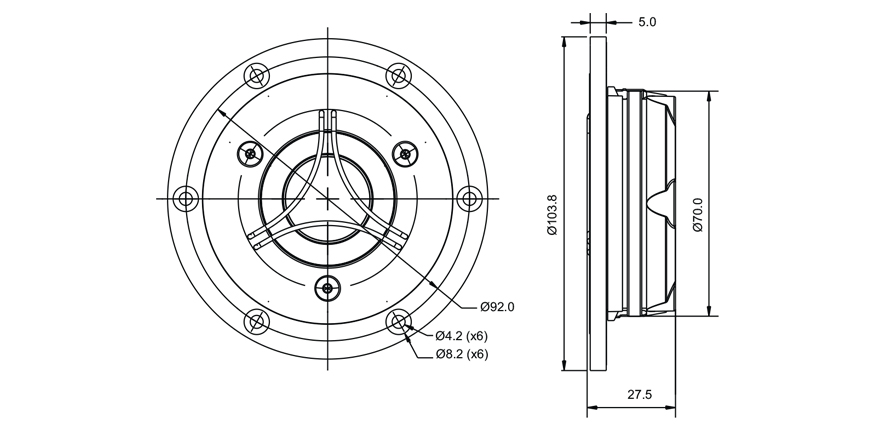

- mounting diameter d = 70 mm
- overall diameter d = 103,8 mm
- mounting depth (not countersunk) t = 27,5 mm
