SB Acoustics SATORI TW29BNWG-8

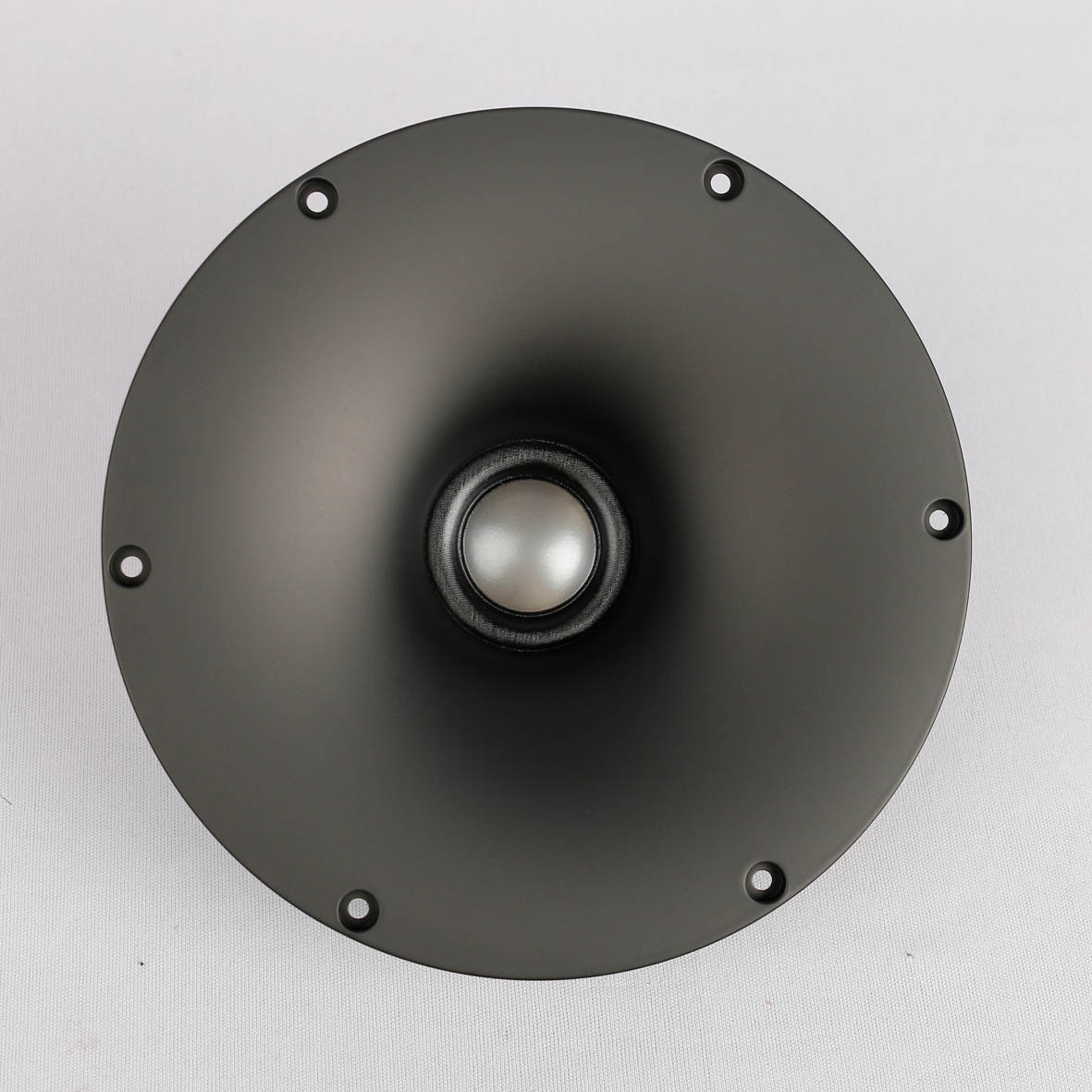

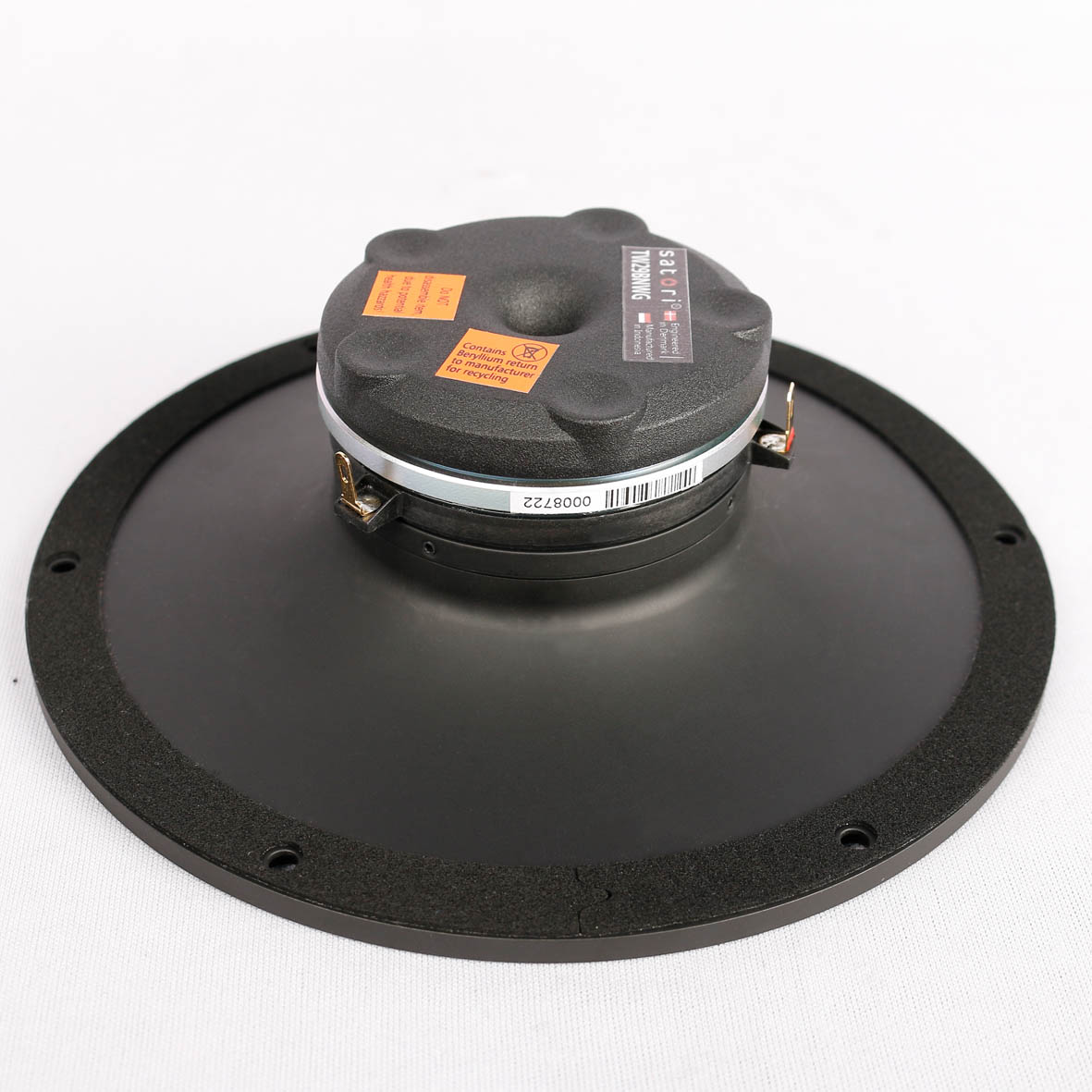

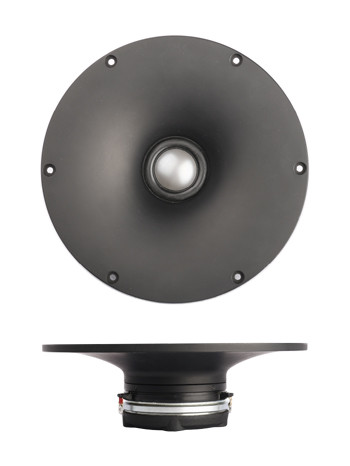

SB Acoustics SATORI TW29BNWG-8 Beryllium Dome Tweeter

• Beryllium dome for non-resonant high frequency extension
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• High saturation neodymium motor system with  T-shaped pole piece for lower distortion
• Non-reflective cast aluminium chamber with  optimized damping for improved dynamics
• Shallow flow optimized magnet structure for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range

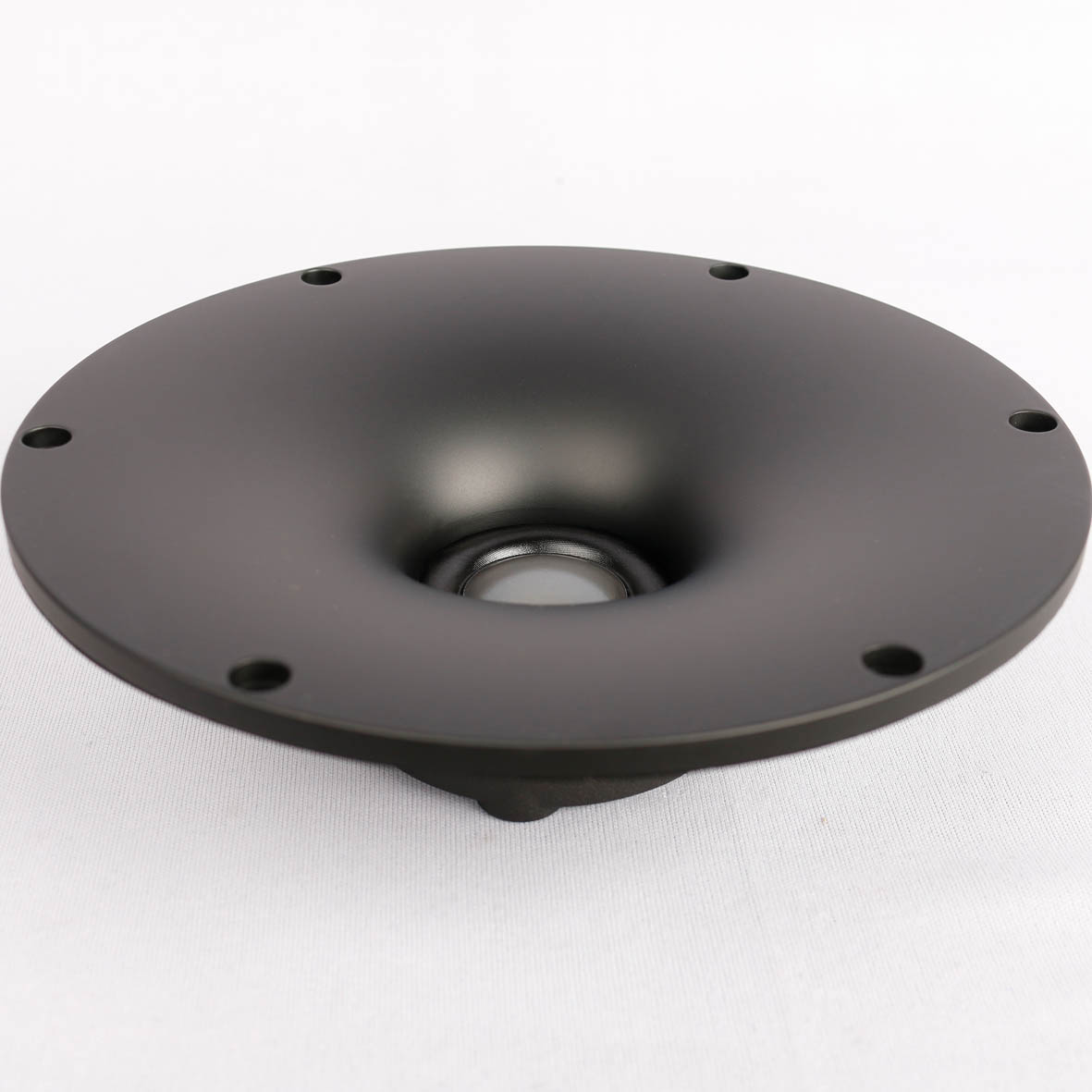

• Solid aluminium waveguide
• Controlled directivity
• Adapter ring for bolt-less mounting to driver

Specifications

• power handling (continuous/programme) = 80 W

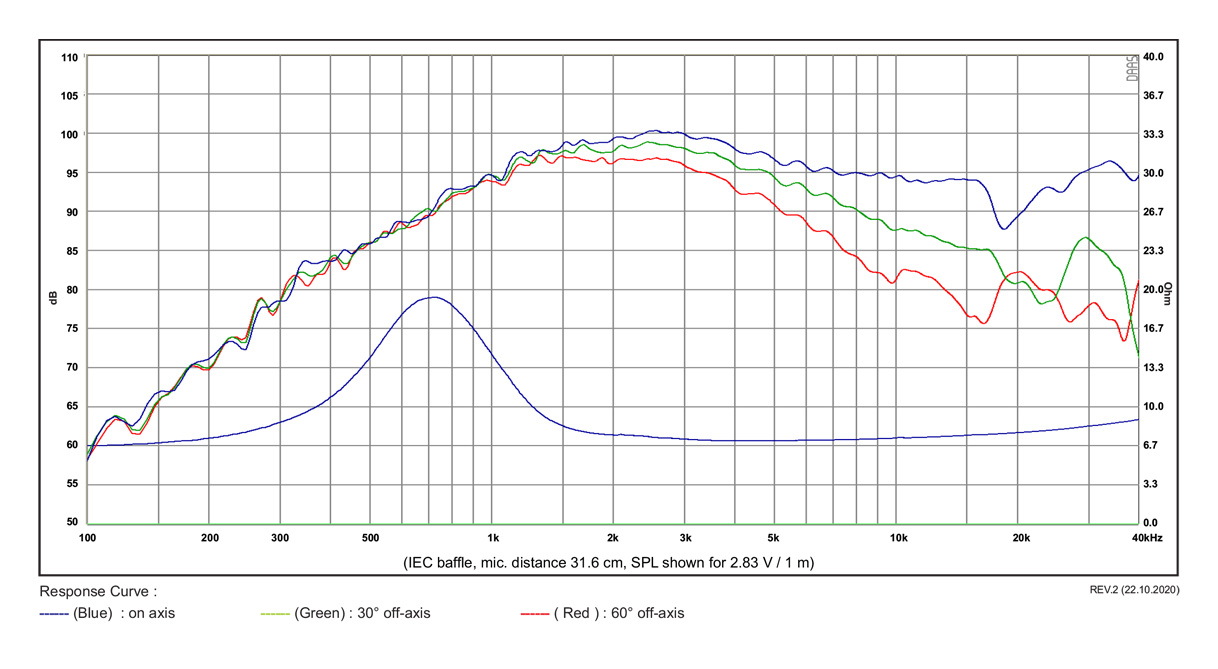

• resonance frequency fs = 750 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 94 dB (2,83V; 1m)
• DC resistance Re = 6,2 Ohm
• force factor BL = 4,1 N/A
• voice coil inductance L = 0,04 mH
• effective piston radiating area Sd = 9,6 cm²
• effective mechanical mass incl. air load mms = 0,44 g
• total Q factor Qts = 0,46 (Qms=1,75, Qes=0,8)
• voice coil diameter = 29 mm
• maximum peak linear excursion vibration x_lin = +/- 0,5 mm

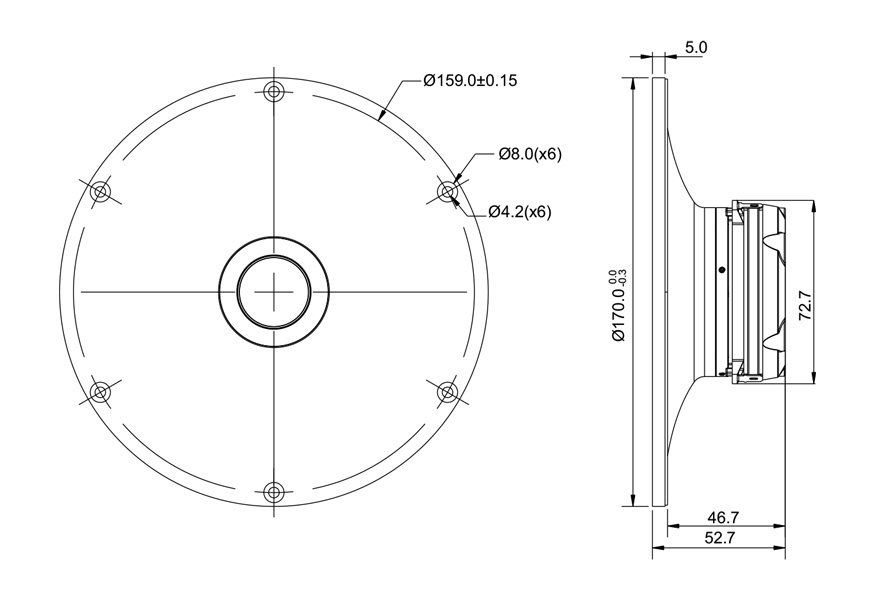

• mounting diameter d = 145 mm
• overall diameter d = 170 mm
• mounting depth (not countersunk) t = 52,7 mm
