Visaton SC 5 8Ohm

€15.69 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 8005
Visaton SC 5   Magnetically shielded 13 mm (0.5") polycarbonate dome driver for... more
Product information "Visaton SC 5 8Ohm"

Visaton SC 5

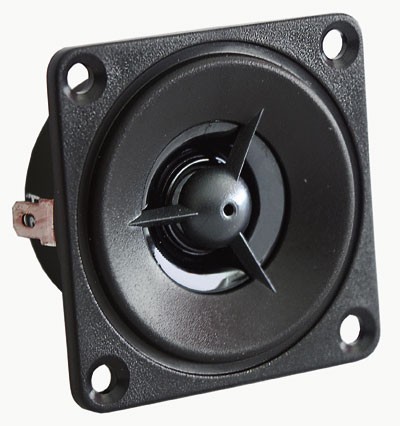

Magnetically shielded 13 mm (0.5") polycarbonate dome driver for the high-frequency range above 4000 Hz. Balanced frequency response, excellent omnidirectional sound distribution and high efficiency. Suitable for small sized shielded 2-way combinations for surround center speakers and multi media systems in conjunction with the shielded fullrange driver F 8 SC 8 Ohm



Specifications

  • power handling (continuous/programme) = 60/100 W

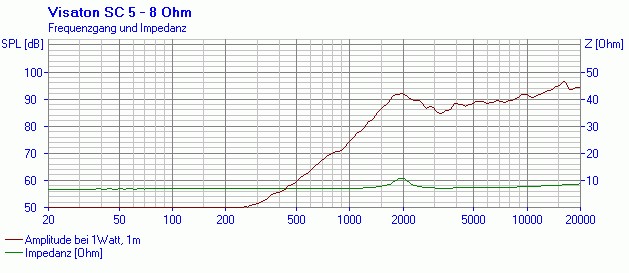

  • frequency range = 1500-22000 Hz
  • resonance frequency fs = 2500 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • voice coil diameter = 13 mm

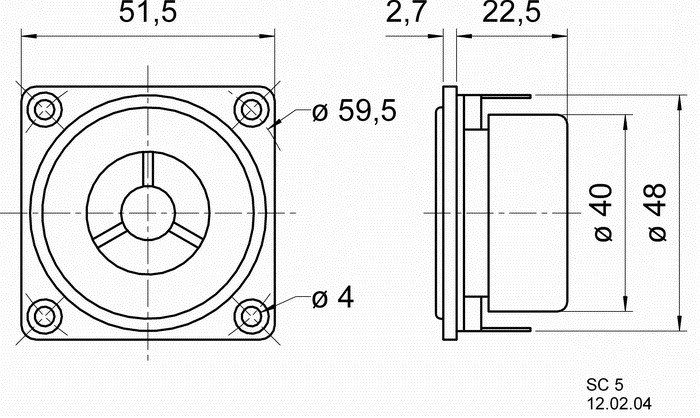

  • mounting diameter d = 48 mm
  • overall diameter d = 59,5 mm
  • mounting depth (not countersunk) t = 22,5 mm
