Visaton DTW 72

Visaton
Preview: Visaton DTW 72 Preview: Visaton DTW 72 Preview: Visaton DTW 72
Visaton DTW 72
Visaton DTW 72
Visaton DTW 72

€19.49 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: 1004
Description Evaluations 0
Description
Visaton DTW 72   14 mm (0.6") polycarbonate dome driver for the highrange above 4000... more
Close menu
Product information "Visaton DTW 72"

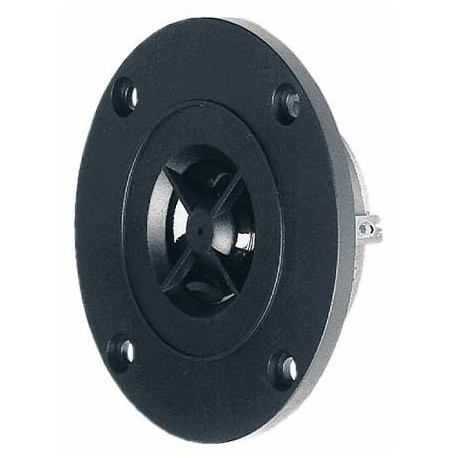

Visaton DTW 72



14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz. Balanced frequency response and excellent omnidirectional sound distribution. Due to the strong magnetic drive and the ultra-light dome in conjunction with the ferrofluid-cooled voice-coil good efficiency and high power handling.



Specifications

  • power handling (continuous/programme) = 70/110 W
  • frequency range = 2200-23000 Hz
  • resonance frequency fs = 3000 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • voice coil diameter = 14 mm
  • mounting diameter d = 50 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 17,5 mm
