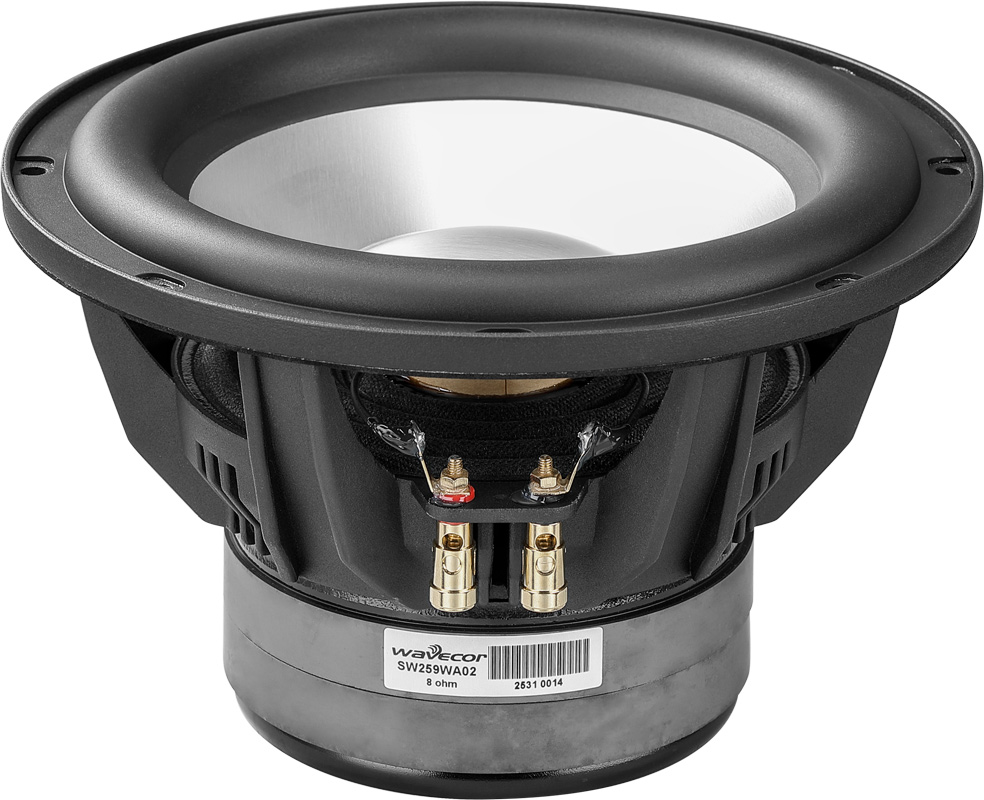

Wavecor SW259WA01 10¼" die cast, alu cone subwoofer 4 Ohm
SW259WA01 and SW259WA02 are woofers designed for dedicated sub bass applications. They work equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups. The extremely stiff aluminium cone, the long linear throw, exaggerated ventilation, and the special dynamic linearization short circuiting rings, together make up for an unusually linear and low-distortion woofer. Even at very high signal levels, the unit behaves controlled and without distortion. Due to low mechanical losses SW259WA01 and SW259WA02 master equally well low level details and extreme dynamic peaks
New optimized outer suspension (surround) for improved large-signal handling
Extremely rigid aluminium cone to ensure piston motion at high levels and for better heat transfer at high continuous power levels
New reinforced die cast alu chassis with optimal ventilation and increased stroke
Venting through holes in cone neck for reduced distortion and compression
Vented chassis for lower air flow speed reducing audible distortion
Two internally built-in alu rings for stabilizing the magnetic field leading to lower high-level distortion
Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
Large motor structure with 2” voice coil diameter and 145 mm magnet for better control and efficiency
Black-anodized magnet structure steel parts for increased heat dissipation and power handling
Long linear stroke motor for reduced distortion at high levels
Linear suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
4-layer voice coil for increased control and better small-cabinet performance
Specifications
power handling (continuous/programme) = 200 W
frequency range = 25-400 Hz
resonance frequency fs = 29 Hz
impedance R = 4 Ohm

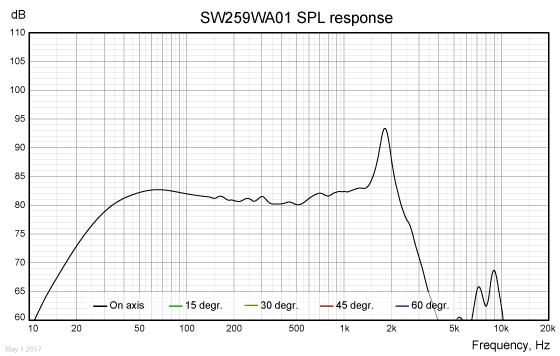

sound pressure level SPL = 83,5 dB (2,83V; 1m)
DC resistance Re = 3,3 Ohm
force factor BL = 14,5 N/A
voice coil inductance L = 1,5 mH
effective piston radiating area Sd = 312 cm2
effective mechanical mass incl. air load mms = 173 g
equivalent volume of compliance Vas = 25 l
total Q factor Qts = 0,47 (Qms=10, Qes=0,49)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 11,5 mm
