Wavecor WF559PA01 10.25" die cast frame, paper cone PA mid/woofer 8 Ohm The 10¼”... more
Product information "Wavecor WF259PA01"

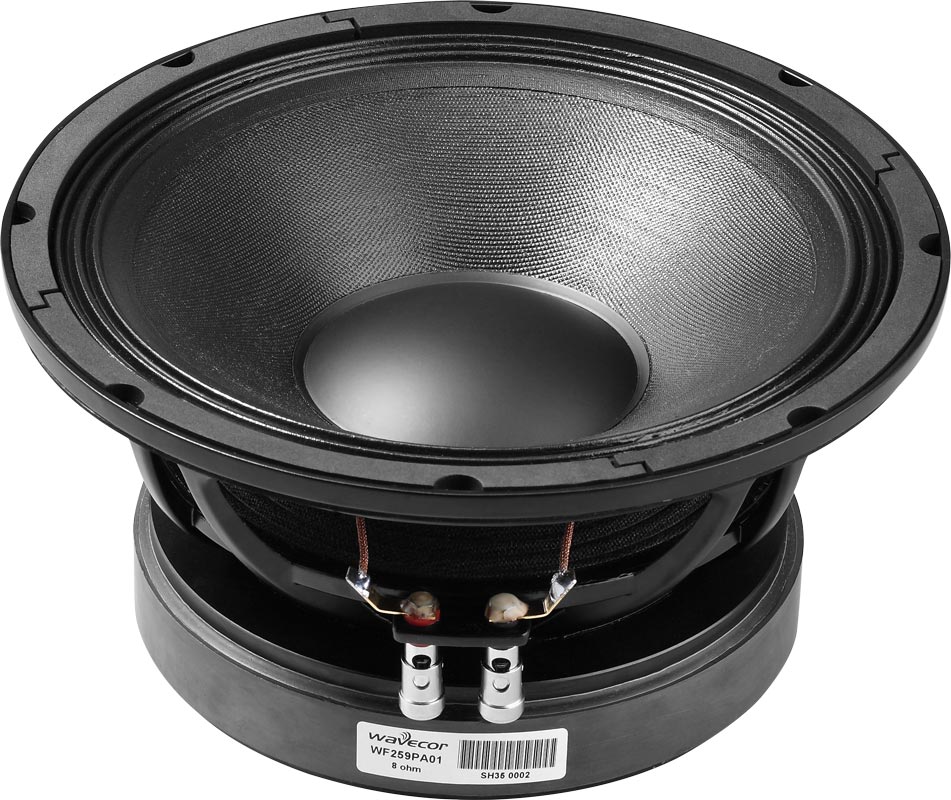

Wavecor WF559PA01 10.25" die cast frame, paper cone PA mid/woofer 8 Ohm
The 10¼” transducer WF259PA01 is the first product by Wavecor dedicated for Public Address audio systems.
It merges the well-know audiophile sound qualities of a typical Wavecor transducer with the common virtues of PA transducers with high sensitivity, high power handling, low distortion, and true-to-the-source sound reproduction.
FEATURES
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Alu shorting ring on center pole below and above air gap to reduce voice coil induction, reduce variation of voice coil induction as a function of voice coil position, and reduce flux variation induced by voice coil current. All with the purpose of reducing large-signal distortion
- Large motor with 3” voice coil diameter for better control and power handling
- Cone made of light and stiff paper formula for high efficiency and uncoloured sound
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Vented center pole with dual flares for reduced noise level and compression at large cone excursions
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black plated motor parts for better heat transfer to the surrounding air
- Conex spider for better long-term stability and better durability under extreme conditions
SPECIFICATIONS
- power handling (continuous/programme) = 300 W
- frequency range = 55-4000 Hz
- resonance frequency fs = 55 Hz

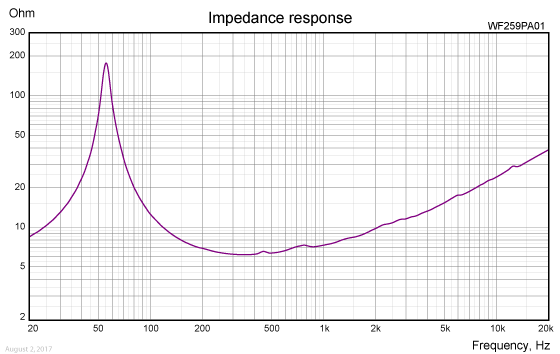

- impedance R = 8 Ohm

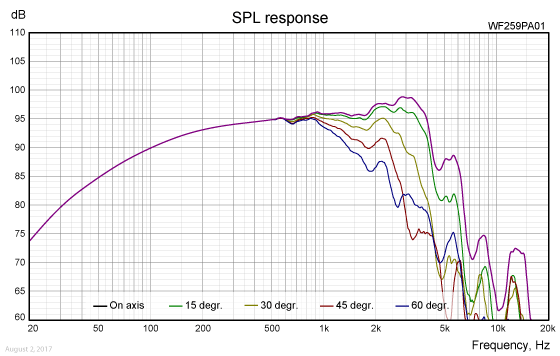

- sound pressure level SPL = 94 dB (2,83V; 1m)
- DC resistance Re = 5,65 Ohm
- force factor BL = 17 N/A
- voice coil inductance L = 0,38 mH
- effective piston radiating area Sd = 370 cm2
- effective mechanical mass incl. air load mms = 56 g
- equivalent volume of compliance Vas = 29 l
- total Q factor Qts = 0,37 (Qms=12, Qes=0,38)
- voice coil diameter = 76 mm
- maximum peak linear excursion vibration xlin = +/- 4,5 mm

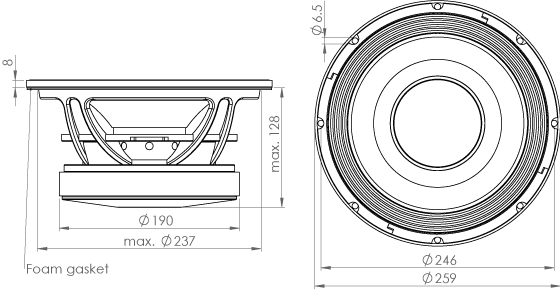

- mounting diameter d = 237 mm
- overall diameter d = 259 mm
- mounting depth (not countersunk) t = 128 mm
- mass m = 8,2 kg
