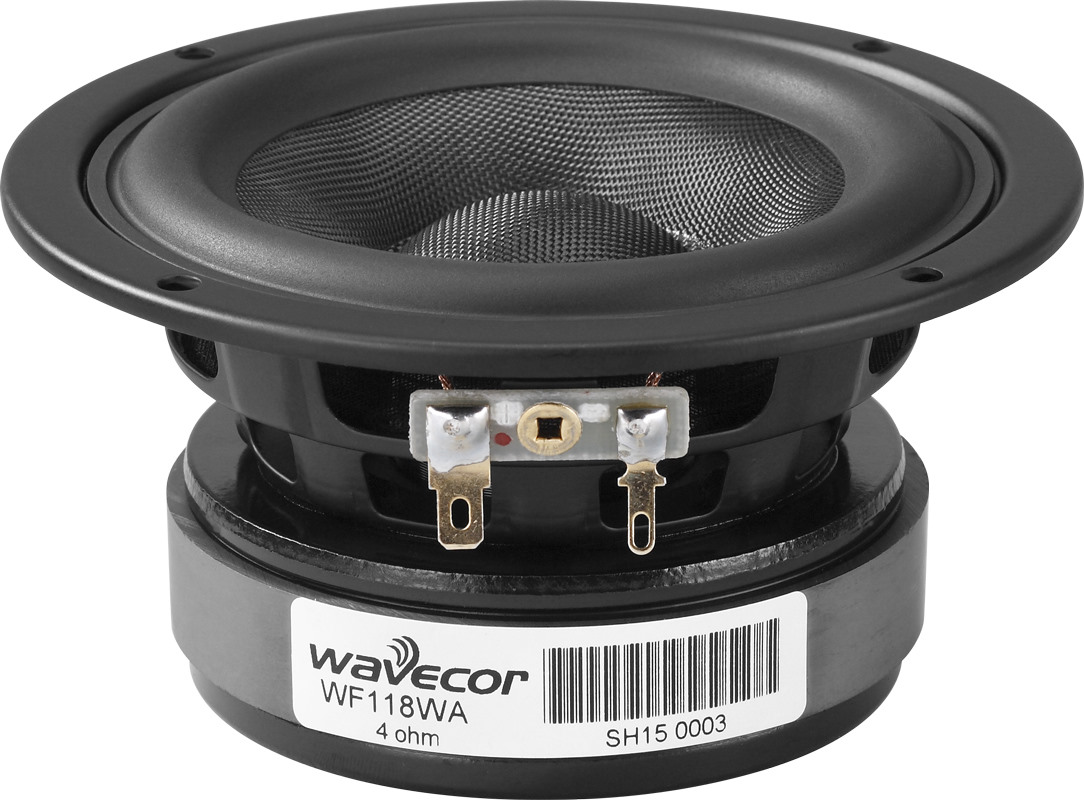

WF118WA05/06 are mid/woofers designed for demanding bass and midrange applications. They work equally well for high-end hi-fi, high quality home theater systems, and top multimedia setups, etc. Powered by a large 85 mm magnet structure that ensures good efficiency and optimal T/S parameters. The large 32 mm voice coil ensures high power handling - thermally and mechanically The new optimized woven glass fibre cone ensures large bandwidth and low distortion. Distortion is further reduced by efficient venting and by adding an internal alu shorting ring to stabilize the magnetic field in the air gap.
Features
New optimized glass fibre cone design
Rigid steel chassis with extensive venting for lower air flow speed reducing audible distortion
Vented center pole with dual flares for reduced noise level at large cone excursions
Heavy-duty fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
Large motor structure for better control and power handling
Built-in alu field-stabilizing ring for reduced distortion at high levels
Low-loss suspension (high Qm) for better reproduction of details and dynamics
Black plated motor parts for better heat transfer to the surrounding air
Conex spider for better durability under extreme conditions
Gold plated terminals to ensure long-term trouble free connection

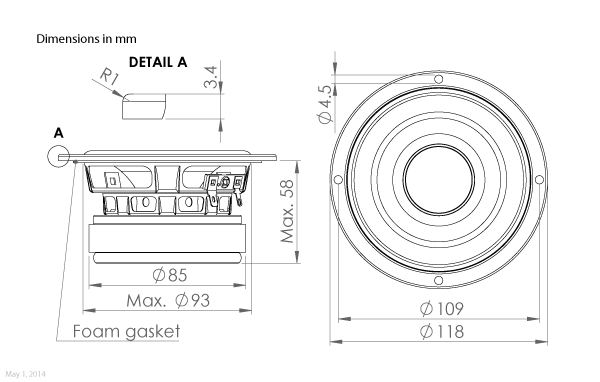

Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
Specifications
power handling (continuous/programme) = 50 W

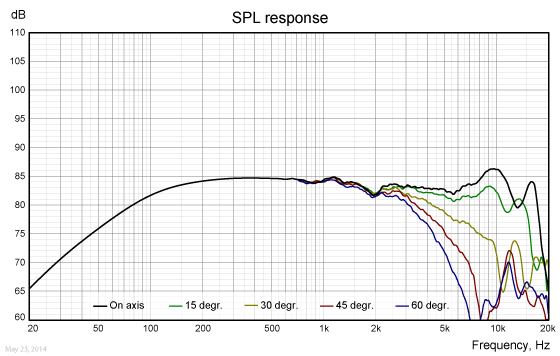

frequency range = 70-4000 Hz
resonance frequency fs = 66 Hz

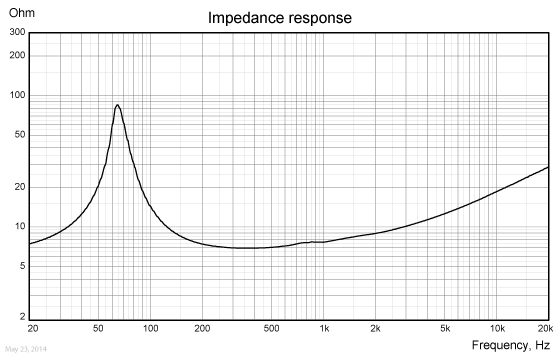

impedance R = 8 Ohm
sound pressure level SPL = 84,5 dB (2,83V; 1m)
DC resistance Re = 6,5 Ohm
force factor BL = 5,6 N/A
voice coil inductance L = 0,28 mH
effective piston radiating area Sd = 54 cm2
effective mechanical mass incl. air load mms = 6,9 g
equivalent volume of compliance Vas = 3,5 l
total Q factor Qts = 0,55 (Qms=7,4, Qes=0,59)
voice coil diameter = 32 mm
maximum peak linear excursion vibration xlin = +/- 3 mm
