Wavecor WF120BD03

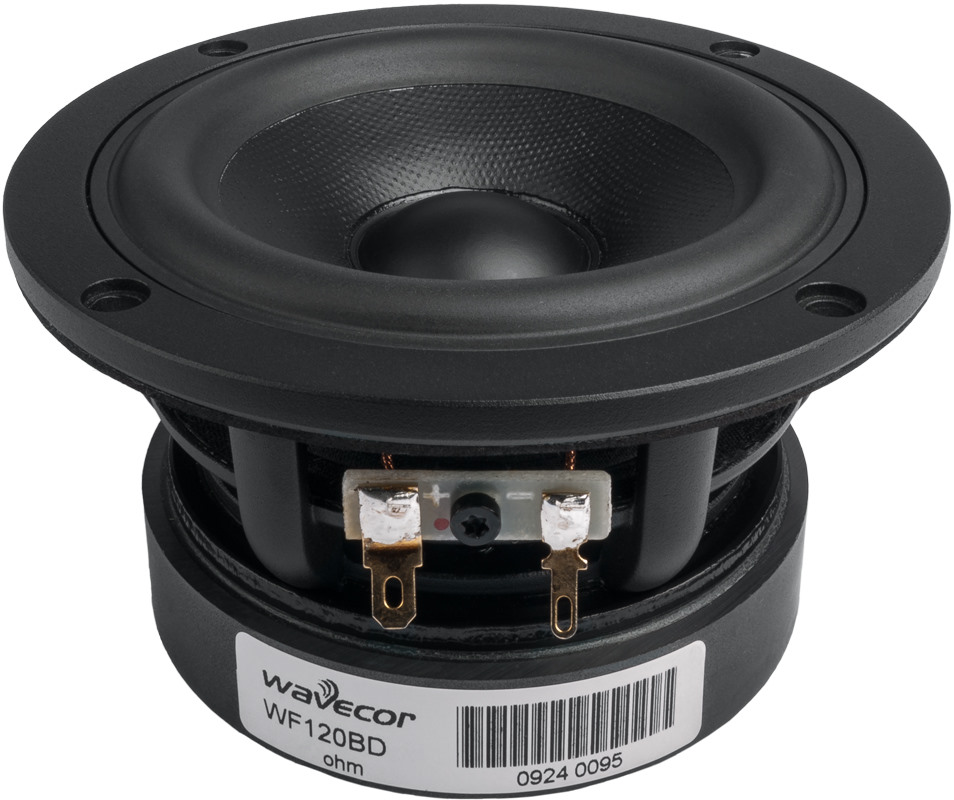

Wavecor WF120BD03 4¾" die cast, paper cone mid/woofer 4 Ohm

The 4¾” transducer WF120BD03 (4 ohm) is designed as high performance bass and midrange unit for very compact monitors and high-end hi-fi speakers.

Features

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Black coated semi-air-dried paper cone
• Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented voice coil former for reduced distortion and compression
• Vented center pole with dual flares for reduced noise level at large cone excursions
• Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 1¼” voice coil diameter for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection

Specifications

• power handling (continuous/programme) = 50 W

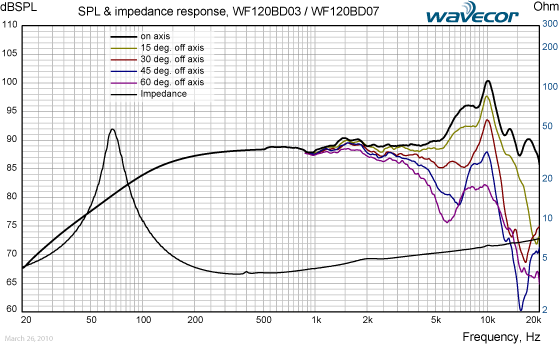

• frequency range = 60-4000 Hz
• resonance frequency fs = 70 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 88,5 dB (2,83V; 1m)
• DC resistance Re = 3,2 Ohm
• force factor BL = 4,5 N/A
• voice coil inductance L = 0,086 mH
• effective piston radiating area Sd = 54 cm²
• effective mechanical mass incl. air load mms = 6,55 g
• equivalent volume of compliance Vas = 4,25 l
• total Q factor Qts = 0,38 (Qms=6, Qes=0,4)
• voice coil diameter = 26 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm

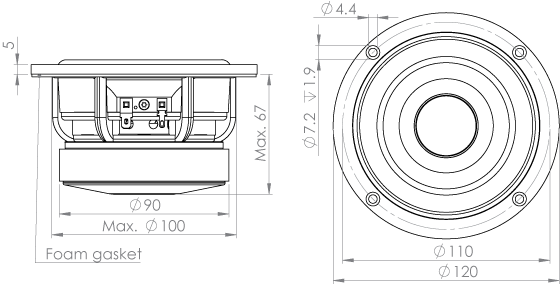

• mounting diameter d = 100 mm
• overall diameter d = 120 mm
• mounting depth (not countersunk) t = 72 mm
